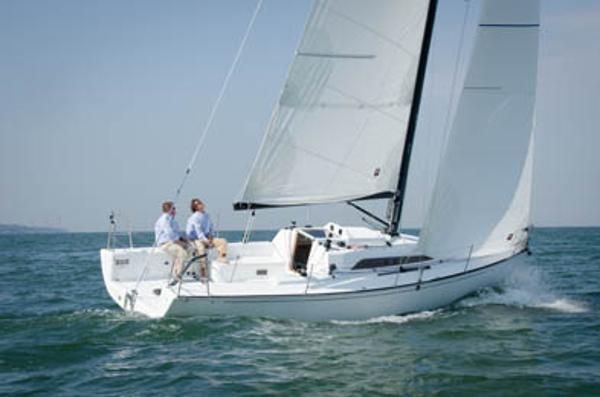

Tartan 101 - main image

2015 Tartan 101

location icon Annapolis, Maryland
Year 2015
Length 33 ft
Builder/Manufacturer Tartan Yachts
Price
$175,000

Tartan 101 -- Stock Boat Closeout.

Well equipped and ready for club racing now...

Trades Considered.

HIGHLIGHTS

Trades considered...Time to move this one and re stock on new Inventory. Excellent opportunity - Savings 25k over new order.

Specifications

Year Built 2015
Category Sail
Length Overall 33 ft
Beam 11 ft
Max Draft 6'6 ft
Cabins 1
Double Berths 1
Construction Fiberglass
Keel Bulb Keel
Drive Type Sail
Engines 1
Total Engine Power 18 hp
Fuel Tanks 1
Fuel Tank Cap. 20 gal
Water Tanks 1
Water Tank Cap. 30 gal
Holding Tanks 1
Holding Tank Cap. 20 gal
Ballast 3,500 lb
Displacement 8,100 lb
Bridge Clearance 54'6 ft

Engine 1 Specifications

Make: Volvo
Model: D1-20
Drive Type: SailDrive
Fuel: Diesel
Engine Power: 18hp
Type: Inboard
Propeller Type: 2 Blade, Bronze, Folding
Year: 2015
Engine Hours: 15
Manufacturer Details

The 101 hull is designed to maximize overall performance without trending to any extreme, creating a boat that offers exhilarating performance on all points of sail. Her nearly 11 foot beam offers excellent form stability and in conjunction with the 6’6” bulbed lead keel provides the stiffness to support a sail area to displacement ratio of 25.8. With a BPA modified epoxy infused hull and deck, optimized uni-directional e-glass laminates, and synthetic hull coring, the 101 is the stiffest, lightest and strongest hull structure available in her size range amongst production builders.

The 101 features a fractional carbon fiber mast, carbon fiber rudder post and retractable carbon fiber bow sprit. Co-engineered by SP Systems, the world leader in composite engineering and materials technology, the mast section is optimized to the 101 with careful attention paid to minimize weight aloft. The 101’s carbon fiber mast is built using prepreg carbon fiber in aluminum tooling, and autoclave cured at temperatures of up to 250 degrees F and 100 psi. This yields a mast that weighs less than half of a comparable aluminum spar, yet is stronger and stiffer. With swept back spreaders led outboard to the hull sides, the 101 offers an impressive 671 square feet of upwind sail area without the hassle of large overlapping headsails. The retractable carbon fiber bow sprit and masthead asymmetrical spinnakers ensure exhilarating off wind performance while making the sailplan easily manageable when cruising or shorthanded.

Rakish deck designs have undergone a modern update on the 101. A nearly 12’ long cockpit provides plenty of working room for the crew. Molded braces provide secure seating for the driver and main trimmer located well clear of jib trimmers and forward crew. For the first time ever, the 101 features a molded carbon fiber and composite tiller as standard equipment, providing the ultimate feedback and feel to the helmsman. When she is not on the racecourse, the forward end of the cockpit features molded cockpit seats and deep coamings that provide secure, comfortable seating in all conditions.

Below decks, the 101 offers refined luxury in line with her pedigree. Lightweight composite components combined with varnished cherry cabinetry and laminated curved trims provide a spacious and comfortable interior while minimizing weight. Bulkheads are attached to hull, deck and interior components using engineered adhesives and epoxy resins; adding stiffness to the hull structure without adding weight. Accommodations for six are available in the forward double cabin, twin aft quarter berths and main cabin settee. The nav station to starboard accommodates full navigation and electrical instrumentation with a full size chart table as an excellent working surface. The galley to port is fit with a two burner stove, large insulated icebox and deep stainless steel sink. Just forward of the main bulkhead is a large head with lightweight composite construction and molded in sink. Aerospace quality composites, modern construction techniques and careful attention to detail afford the 101 with an interior arrangement that belies her performance capabilities.

Sail Area

Sail area ............................................ 671 sq ft (62.3 sq m)
    I ........................................................................ 44’ 9” (13.64 m)
    J .......................................................................... 12’ 6” (3.81 m)
    P ...................................................................... 45’ (13.71 m)
    E ................................................................ 14’ 10” (4.52 m)
Mainsail area ............................... 399 sq ft (37.06 sq m)
100% Foretriangle ............................ 272 sq ft (25.27 sq m)

Highlights and Optional Equipment
  • WHITE HULL
  • RED BOOT & COVE STRIPES
  • WHITE DECK
  • SLATE COLOR COUNTERS GALLEY
  • CHILI RED COLOR FABRIC INTERIOR
  • LAMINATE INTERIOR BULKHEADS
  • CHERRY TRIM ON CABINETRY
  • SOLID TEAK SOLE - REMOVABLE
  • CARBON TILLER
  • CARBON BOWSPRIT
  • CARBON MAST
  • SELDEN BOOM
  • SELDEN ROD VANG
  • OPENIGN LIFELINES AFT - PORT & STARBOARD
  • ELECTRICAL SYSTEMS GROUP OPTION
  • 30 AMP BATTERY CHARGER
  • SHORE POWER INLET / PANEL / CORD
  • SECOND BATTERY
  • 4 - 110 VAC OUTLETS
  • CONVENIENCE GROUP PACKAGE OPTION
  • PRESSURE WATER HOT & COLD
  • 6 GALLON HOT WATER HEATER
  • UPGRADED FAUCETS HEAD & GALLEY
  • Y-VALVE FOR HEAD
  • AM FM STEREO W/ 4 SPEAKERS
  • RAYMARINE i70 WIND, SPEED & DEPTH TRANSDUCERS
  • 3 - i70 DISPLAYS ON THE COMPANIONWAY POD
  • VHF RADIO WITH RAM MIC COCKPIT
  • ROD RIGGING
  • HARKEN CARBO FOIL HEADSAIL
  • SECOND SPIN HALYARD LED AFT ( 2 SPIN 1 JIB )
  • JIB IN-HAULER SYSTEM
  • FORWARD LEAD BLOCKS FOR SPIN SHEETS MID SHIPS
  • OPENING PORTLIGHTS
  • BOTTOM PAINT PETTIT TRINIDAD SPRAYED - RED
  • FOLDING / REMOVABLE FOOT BRACES FOR HELMSMAN SS
  • NORTH SAILS
  • DACRON RACING MAINSAIL
  • 3DL - AP #1 JIB
  • A2 / CODE 2 SPINNAKER - ASSYMETRIC
  • RIGGING / COMISSIONING COMPLETE

OVER 220K TO REPLACE HER IN 2017...EXCELLENT VALAUE - WE TAKE TRADES!
