Basic Boat Info
Dimensions
Engines / Speed
- Make: Yanmar
- Model: 3YM20
- Fuel: Diesel
- Engine Power: 21hp
- Type: Inboard
- Propeller Type: 3 BladeBronze, Folding
- Engine Location: Center
- Drive Type: Direct
- Year: 2024

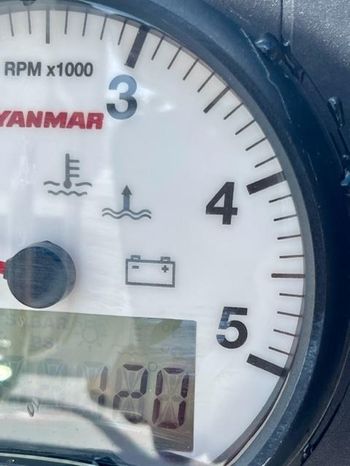

- Engine Hours: 12
Tanks
Other
Contact
Office
7078 Bembe Beach Road
Annapolis, Maryland, US, 21403
Tel:(410) 269-0939

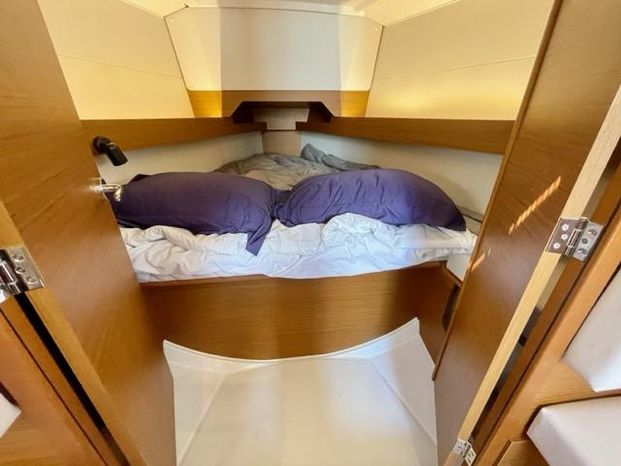

Master stateroom: The entry into the forward cabin is through a set of double doors. This opens the space up, improves ventilation and makes the overall interior of the boat feel larger. The spacious 6’7” x 5’7” forward berth is built low enough that you can sit down on it- no climbing to get in! Fiddled shelving runs along each hullside and has indirect lighting behind it, providing an attractive yet subtle feel. At the aft end on starboard is a changing seat with a cubby below it. On the port side is a locker that is split shelving and hanging locker, with a cubby below that as well. There is a reading light on the port side of the berth; A hatch and a Hella fan provide additional light and ventilation. There is 6’2” headroom in this space.

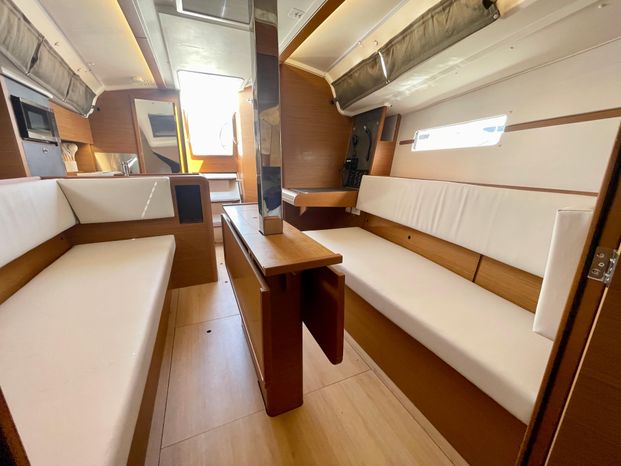

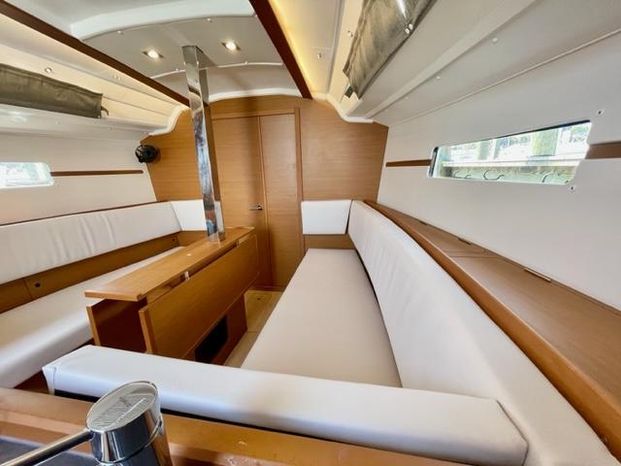

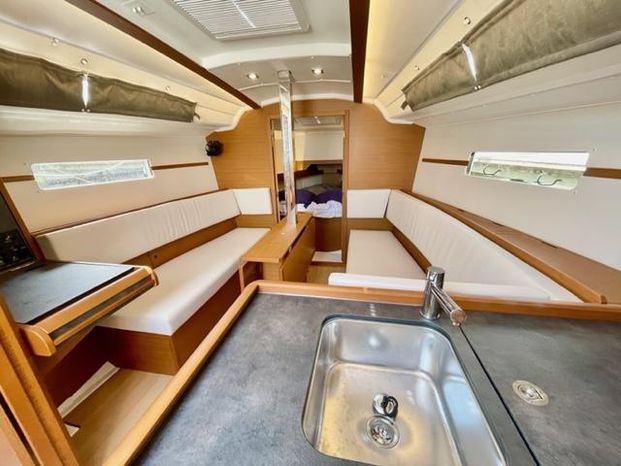

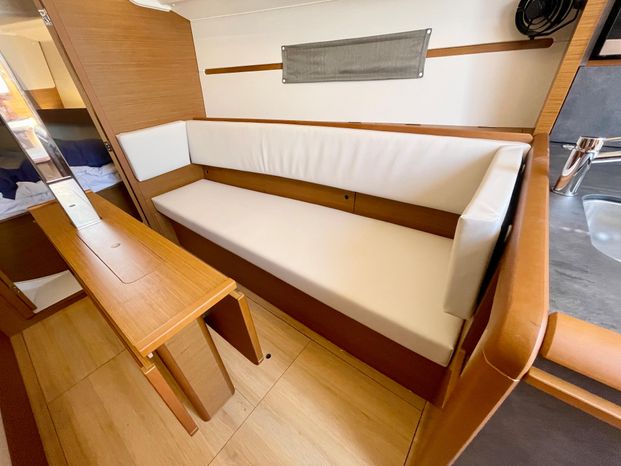

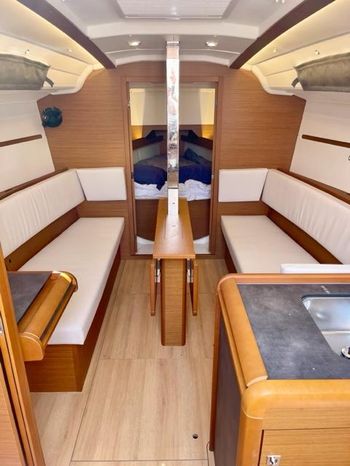

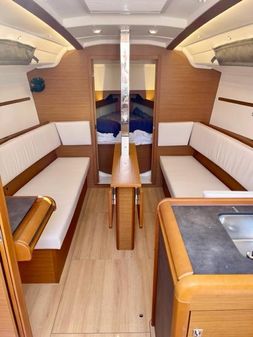

Salon: The Jeanneau 349 salon is extraordinarily bright and open, with a large overhead hatch, hullside windows and fixed lights the length of the space on either of the house sides. The hullside windows are at just the right height to sit and look out at your surroundings, which is a really nice feature. Straight settees are on either side; the starboard settee is 6’7” long and the port is 5’9”. Both settees have storage beneath them, behind sliding doors that are located between the seat cushion and back rest cushions, and two top access storage lockers above and behind the seat backs. The dinette table is drop-leaf and has bottle storage inside it. Above are grab rails along the ceiling; these have indirect LED lighting above them as well as two overhead LED lights at the forward end of the table. There is bottle storage beneath the galley counter at the rear of the starboard settee. There are two Hella fans in this space as well. Headroom is 6’3”.

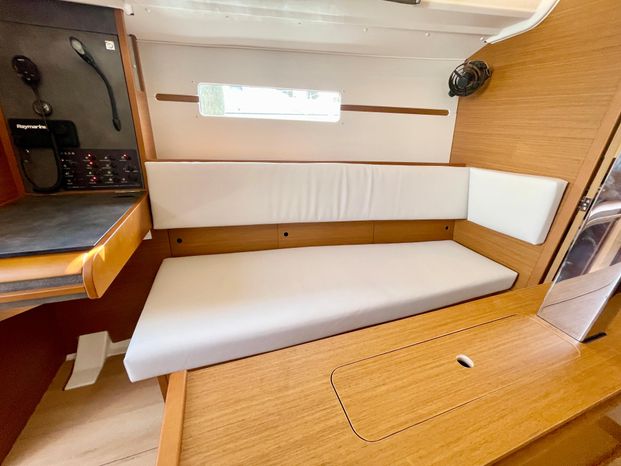

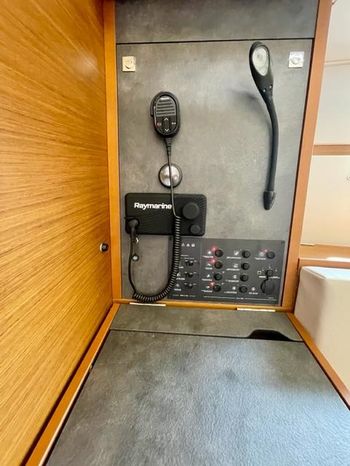

Nav station: The nav station is aft facing on port and utilizes the settee for the seat. The chart table has a leather surface and can swing up and out of the way for electrical access or more space at the dinette. The electrical and electronics panel is hinged and can lower easily for access to those components.

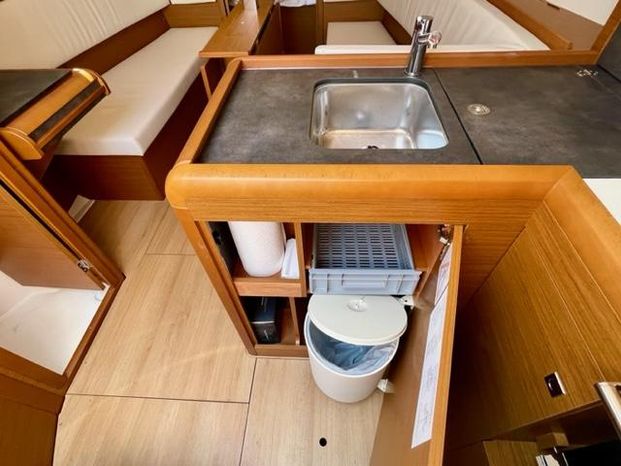

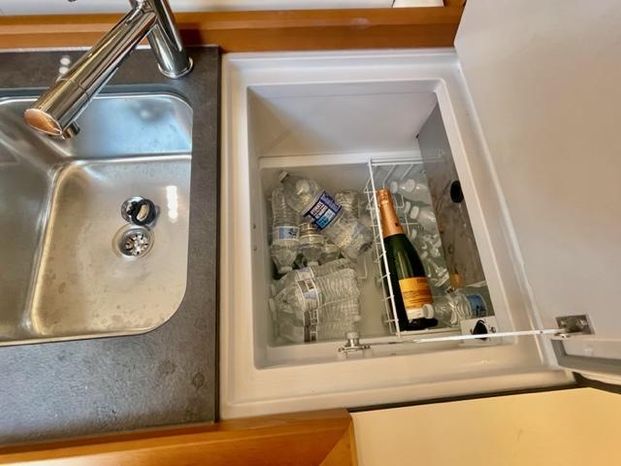

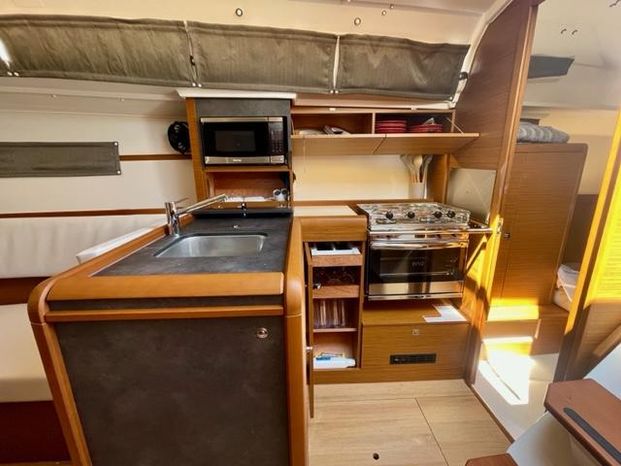

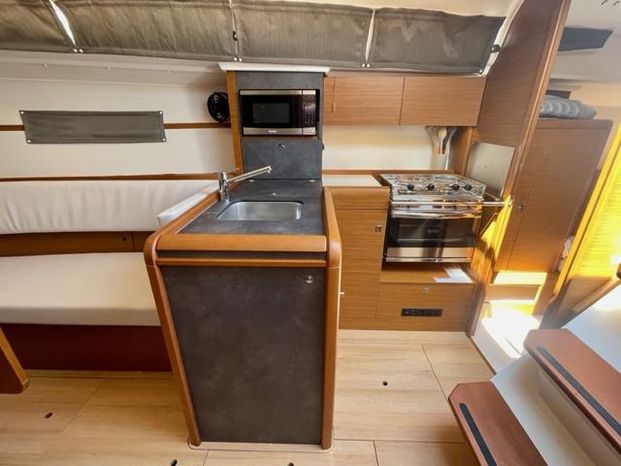

Galley: With 6’2” headroom, the galley is at the base of the companionway on starboard. L-shaped, the sink counter has it oriented toward centerline. Below the sink is a locker with a swing-out trash bin, a produce bin, and a shelf. To the right of the sink is the top loading, 26-gallon icebox with refrigeration. Above the icebox and along the hull is a drop-door locker and a microwave above that.
Moving around and along the hullside, there is a locker below the counter with shelves and a pull-out cutlery drawer. To the right of this is the stove, with a locker beneath it for pots and pans.
Behind the hullside counter and stove is a fiddled shelf area for utensils, spices and what not. Above that are two drop-front lockers. There are under cabinet lights, fixed hullside lights and an opening port in the galley.

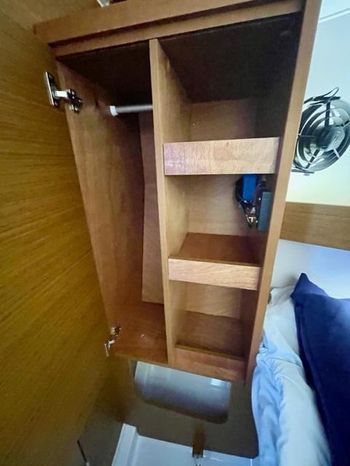

Aft stateroom: Entry to the aft stateroom is on starboard aft of the galley. There is 6’3” headroom as you enter, with a double door locker to your left that is half hanging and half shelves. There is cubby storage below it and fiddled shelf space above it. The berth is 6’7” x 5’3” and has LED indirect lighting along the hull and a wall mounted light in the entry. An opening port, an overhead hatch and a Hella fan provide plenty of ventilation.

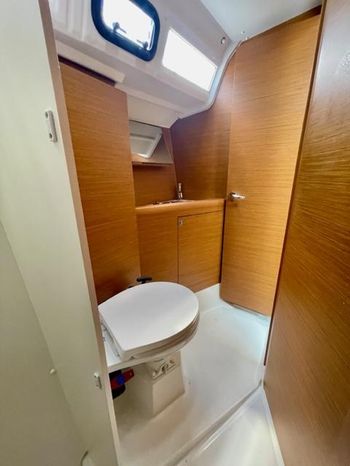

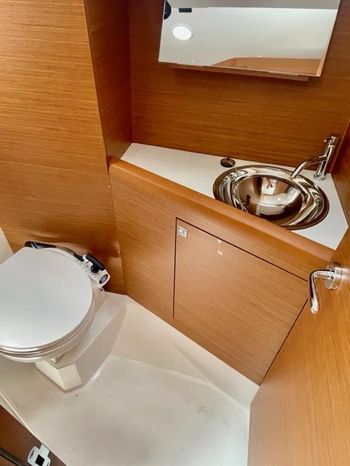

Head: Entry to the head is where it should be- at the base of the companionway- and on port. As you enter, the sink is straight ahead of you. There is a locker beneath the counter as well as a mirrored, drop-door medicine cabinet above it. The toilet is to the left of the sink.

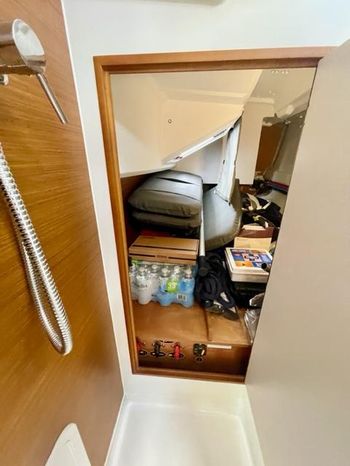

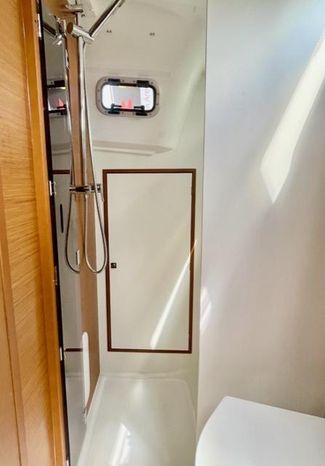

To the left of that is the separate stall shower. A bi-fold door closes this space off and the shower head is on a sliding adjustable height mount on a bar. Along the hull is shelf space for toiletries and a hanging bar for wet gear. The aft end of the shower stall has a large door leading to the lazarette space. This is also where the batteries and battery switches are located. The lazarette can also be accessed from the cockpit through a hatch. Headroom in here is 6’1”. There are two opening ports and three fixed lights, two wall mounted LED lights and one reading light in this space.
- Dometic shade screens on all hatches
- Shades on all ports
- Alpi Teak interior wood finishes
- Ceruse Light Oak laminate floorboards
- “Ambiance Weiss” upholstery
- Leather wrapped handrails
- Hella fans in salon and cabins (4)
- Laminate countertops with handhold fiddles
- Deep polished stainless steel sink
- Single lever stainless steel hot and cold water mixer
- 26-gallon icebox

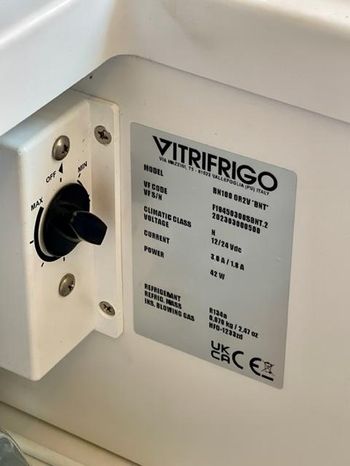

- Vitrofrigo 12v refrigeration

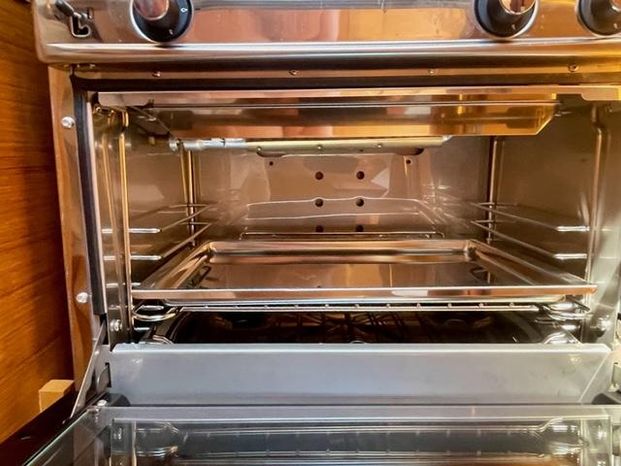

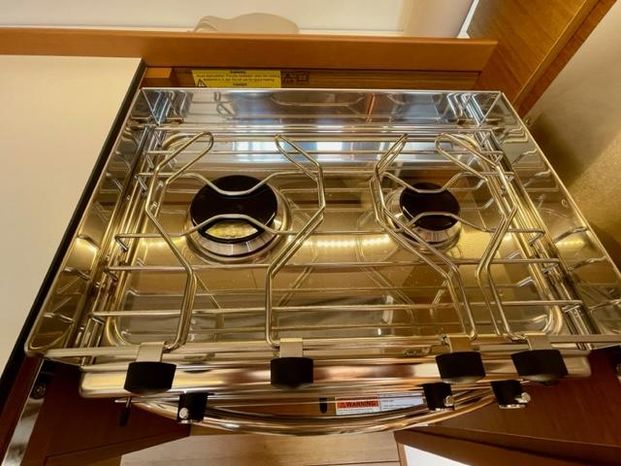

- Gimballed Eno two-burner stove with oven, broiler, pot clamps and safety bar
- 6-gallon LPG tank in dedicated cockpit locker

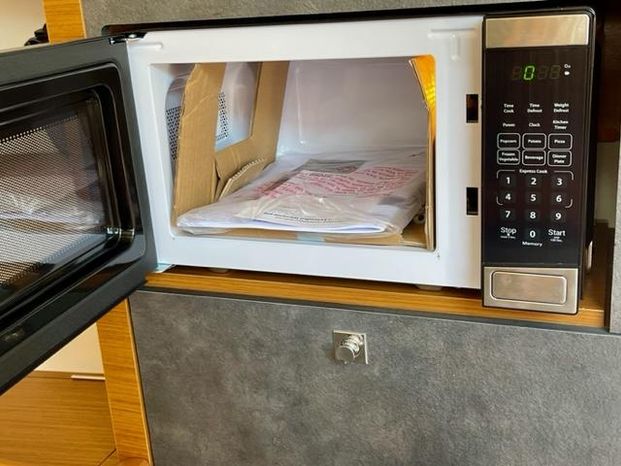

- Danby 0.7 cf microwave
- Non-skid fiberglass floor
- Laminate countertop with handhold fiddle
- Polished round stainless steel sink
- Single lever stainless steel water mixer
- Mirrored drop front medicine cabinet
- Jabsco manual head
- 21 gallon holding tank
- Separate shower stall
- Bifold acrylic shower door
- Adjustable height shower wand and hose
- Single lever stainless steel water mixer
- Clothes rod in shower area for wet gear
- Electric shower sump pump
- 54-gallon plastic water tank
- Quick 7-gallon hot water heater
- 5 GPM freshwater pump
- Hot and cold cockpit shower
- Electric bilge pump
- Manual bilge pump
- Hand laid solid fiberglass hull
- Two coats of Interlux 2000 barrier coat
- Two coats of bottom paint

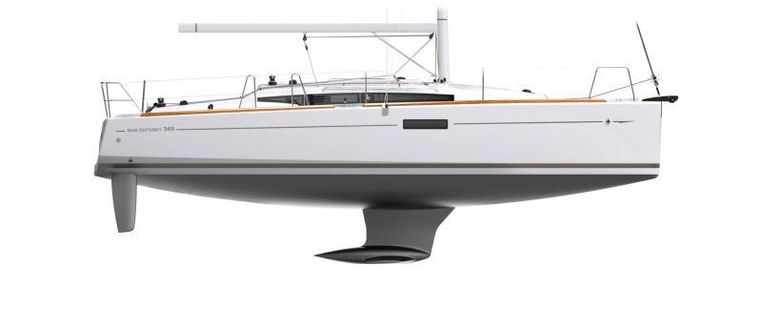

- Winged shoal draft 4’ 10” keel
- Twin rudder design
- Prisma Process injected laminated deck with discontinuous balsa block coring

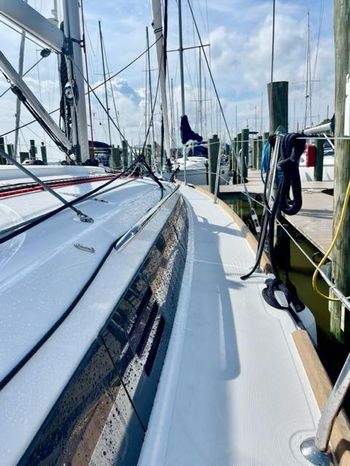

- Teak rub rail
- Teak toe rail
- Six mooring cleats
- Stainless steel chafe guards at all mooring cleats

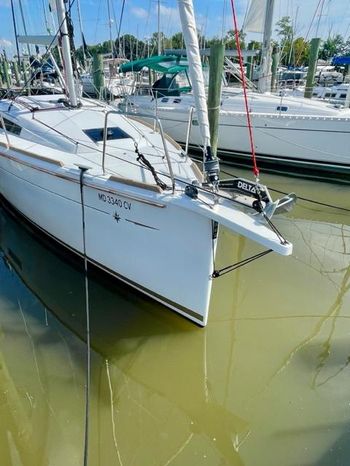

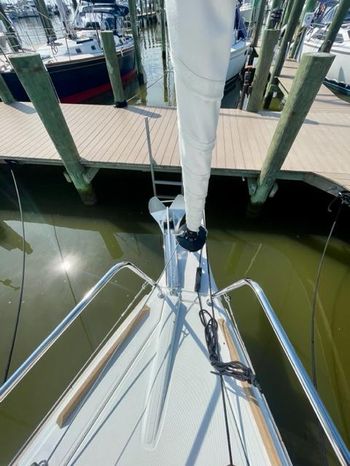

- Single stainless steel anchor roller

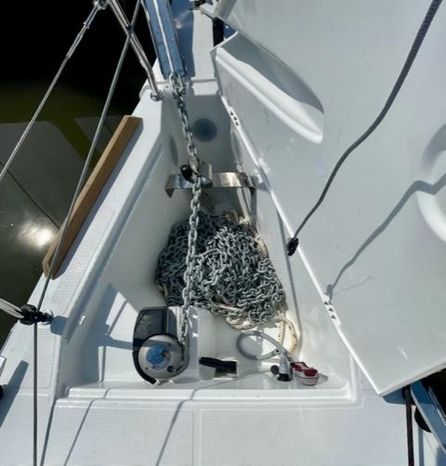

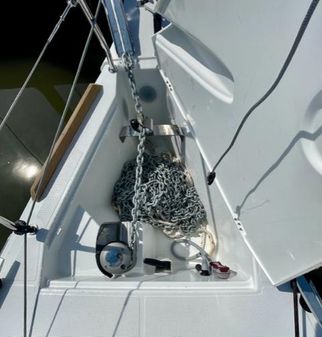

- 16 Kg Delta Fast Set anchor with 91’ of 10mm chain and 132’ of 18mm rode
- Quick 1000W horizontal electric windlass with remote
- Stainless steel handrails
- Fold down swim platform with telescoping swim ladder
- Stainless steel bow and stern pulpits
- Double stainless steel wire lifelines
- Port and starboard boarding gates
- Double wire lifeline gates at swim platform

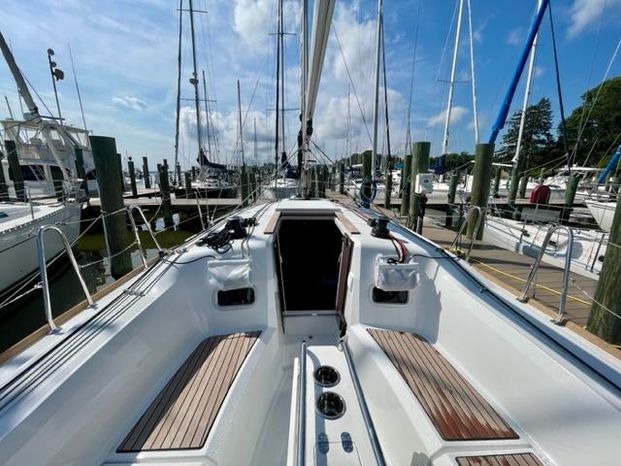

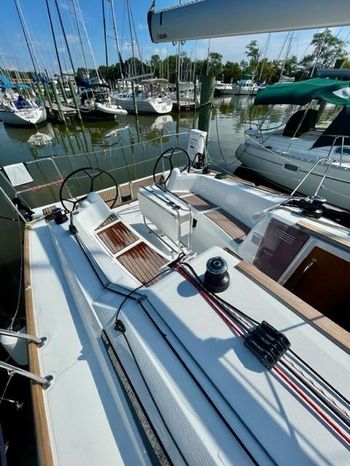

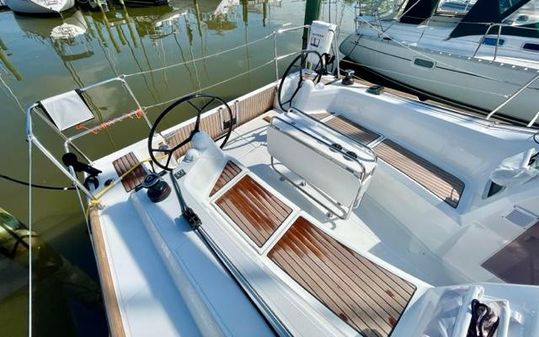

- Teak cockpit seats
- Double acrylic companionway doors
- Dedicated Liferaft compartment
- Two hullside fixed ports
- Four opening ports
- Four flush deck overhead hatches; two with vents
- Foredeck padeye
- CE Rating – Category A Unlimited Ocean

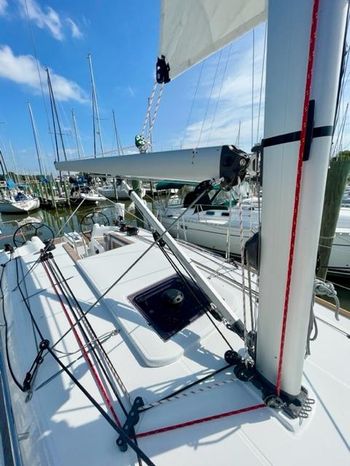

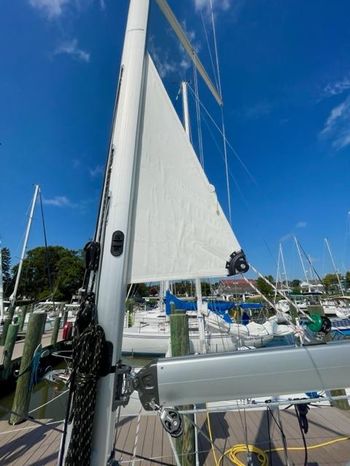

- Selden deck stepped double spreader aluminum in-mast furling mast
- Selden Rodkicker boom vang
- Mast pad eye for pole
- 1 x 19 stainless steel wire shrouds
- Outboard mounted chainplates
- Factor roller curler

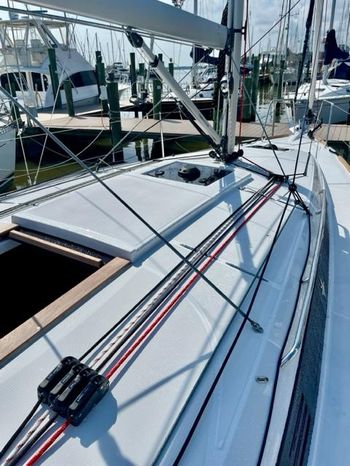

- Dyneema halyards led aft through low friction rings
- Rutgerson genoa low friction rings adjustable from cockpit
- Y-bridle mainsheet system
- Selden blocks
- Spinlock deck organizers
- Harken #35 two-speed self-tailing control winches on housetop (2)
- Harken #35 two-speed self-tailing winches at helm stations (2)
- Spinlock line clutches on housetop (8)
- Spinlock line clutches at helm stations (6)
- Spinlock line clutches on mast (2)
- Spinlock line clutch on foredeck for Code 0
- German sheeting for mainsail
- Dacron in-mast mainsail
- 110% furling Genoa
- Triradial cut Mylar/Aramid Code 0 sail
- Winch handles (2)
- Winch handle holders (3)
- Line tail bags
- Courtesy flag halyard

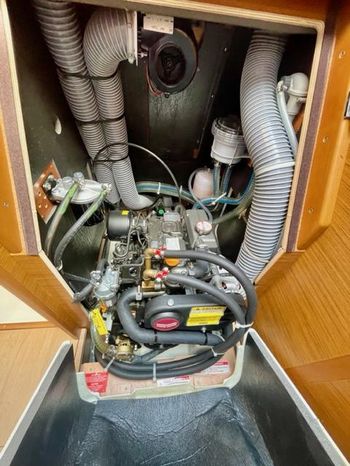

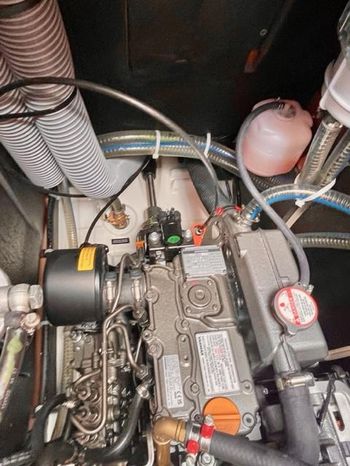

- Yanmar 3YM20 21HP direct drive engine S/N: E17010
- ~20 engine hours
- Fire retardant engine room sound insulation
- 34-gallon fuel tank
- Electric fuel gauge at nav station
- 3-blade Flex-O-Fold folding propellor

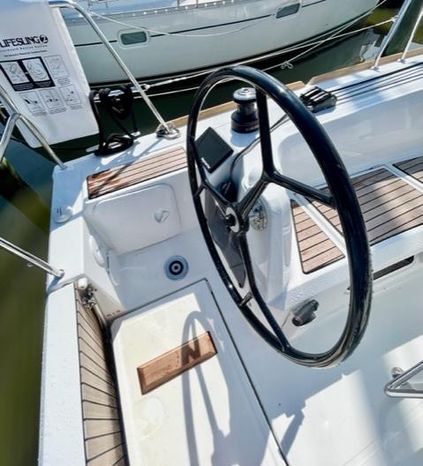

- Composite steering wheels
- Plastimo compasses at each helm
- Sleipner tunnel bow thruster
- 30A shore power connection
- 30A shore power cord
- 230V electrical panel
- 120V receptacles w/USB connections throughout
- Engine and house battery switches
- Battery parallel switch
- Group 24 thruster and windlass batteries (2)
- Group 24 house battery
- Group 24 engine starting battery
- 40A battery charger
- 125AH alternator
- 12v electrical panel
- 12v plug at nav station
- LED anchor, steaming and navigation lights
- LED interior reading lights
- LED indirect lighting
- Seanapps boat monitoring system (subscription required)
- Raymarine Axiom+ 7” touchscreen display at helm with WiFi
- Navionics + US East charts
- Raymarine AIS 700 transceiver

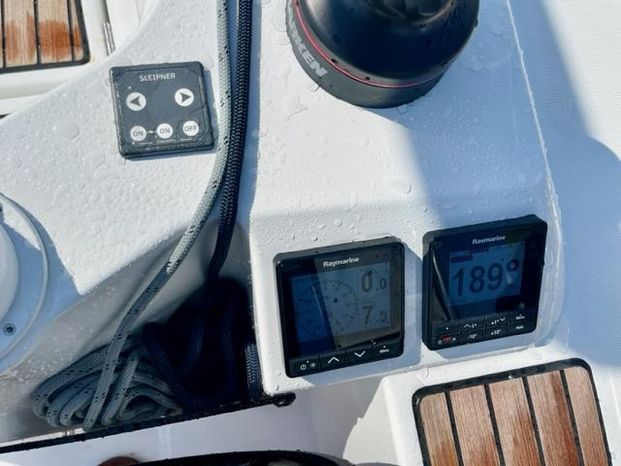

- Raymarine i70 multi display
- Raymarine DST800 triducer
- Raymarine p70 autopilot control head
- Raymarine ACU200 core unit and gyrocompass
- Raymarine S100 Autopilot remote
- Raymarine Ray 63 VHF radio
- USB plugs in cabins
- Lifesling 2 MOB recovery system
- Magic Reboard emergency ladder
- PFD’s
- USCG safety equipment
- First aid kit
- Flares
- Boat horn
- Plastimo radar reflector
- Sport-A-Seats (4)
- Windex
- Boat hook
- Docklines
- Fenders
- Emergency tiller
- Clinometer (not installed)
- Starboard cockpit table with folding leaves, grab bars, foot braces, cup holders and storage/ice bin
If it shows, it goes!
