general description

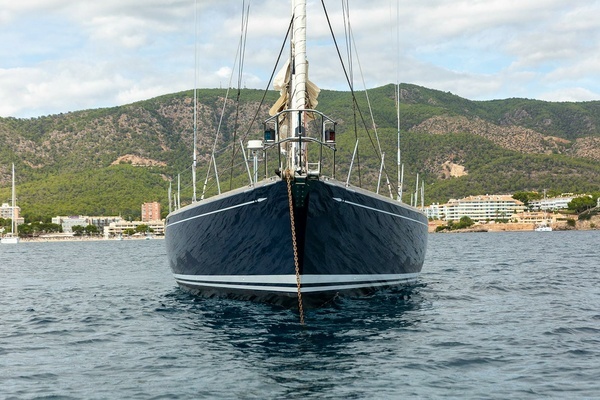

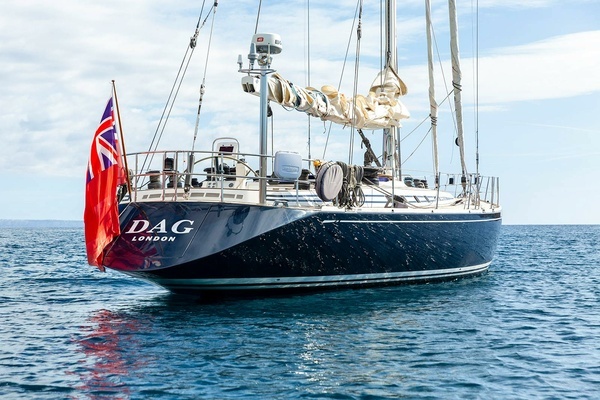

DAG, the 23.60-metre Nautor Swan 77, is hull 4 of the acclaimed 77 Swan series. She was built in 1994 and is celebrated as a potentially most elegant Swan crafted by designer Frers.
It boasts numerous recent upgrades including a new engine in 2022, and new generator and teak deck in 2023 and 2024 respectively. Further improvements made in 2024 include new rod standing rigging and overhauled winches and a new teack deck.
The yacht is equipped with a carbon mast and boom, and features a sophisticated navigation and communication system by B&G, including chartplotter, radar, and AIS.
With a VAT fully paid status, the Swan 77 also includes a variety of modern amenities such as air conditioning throughout, high-end galley appliances, internet Wi-Fi, an entertainment system with a flat-screen LCD TV, and several audio options. Cabin comforts are accentuated with features like a refrigerated wine cellar, a washing machine, dryer, and dishwasher.
She accommodates 8 guests in 4 cabins.Â

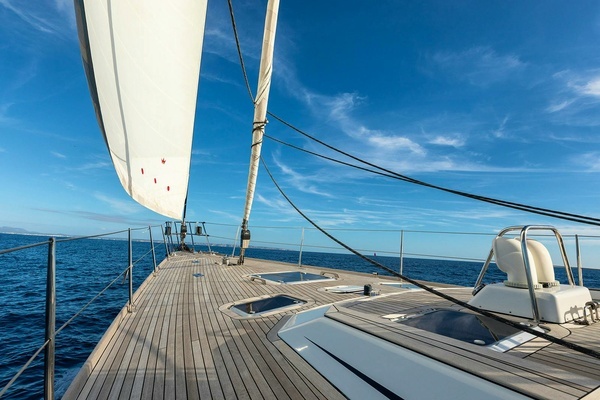

deck equipment

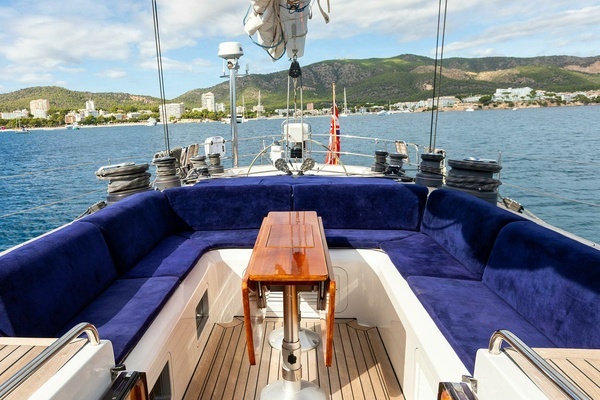

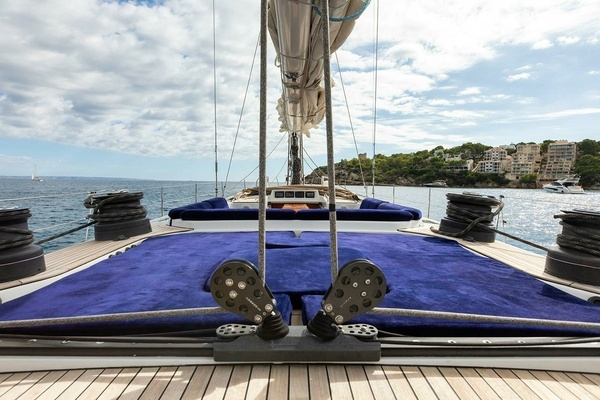

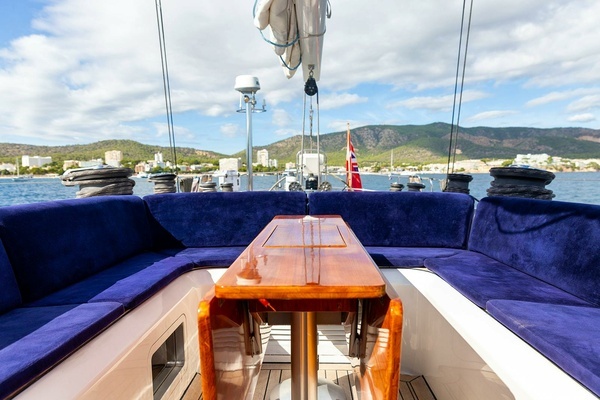

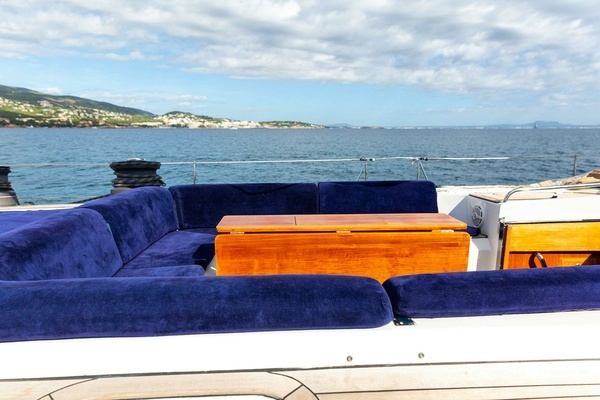

Bow stainless steel pulpit with sit and gateStainless steel stanchions with port and starboard gatesStern radar and tv antennas stainless steel pole6 ballards (2 stern, 2 amidship, 2 bow)2 stern openable fairleads8 bulwark fairleadsFore cockpit folding tableDodgerFore cockpit cushionsAft cockpit cushions

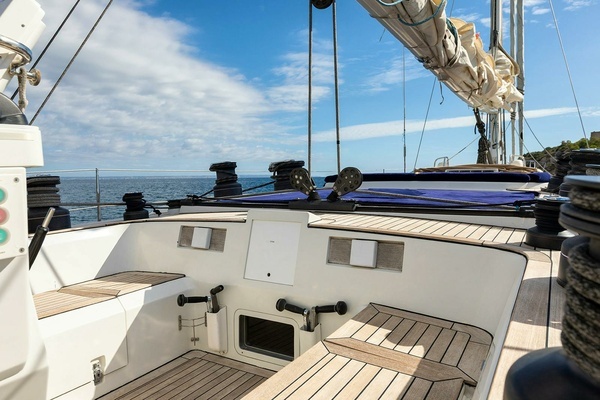

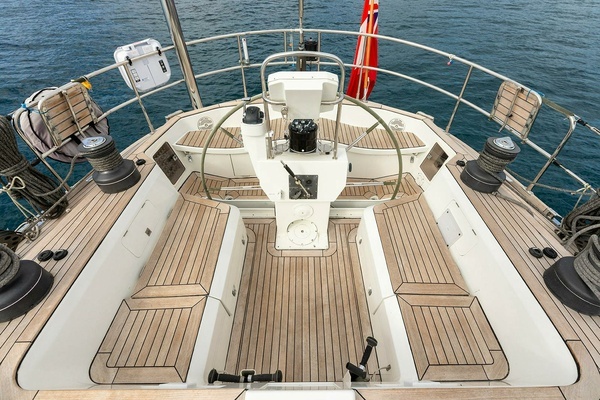

Wheel Cockpit:
Instrument dashbord with plotter/radar display, autopilot control, bow thruster control, electronic engine trottle, engine display, hydraulic fore furlers controls70 inches wheel elk leather coveredGRP rudder filled with foam, hardened rudder shaftStern ventilated gas lockerHydraulic transom hatch
Instruments on deck:
4 B&G H2000 displays above the companionuccio di entrataSimrad NSE 8, B&G FFD plotter/radarElectric panel

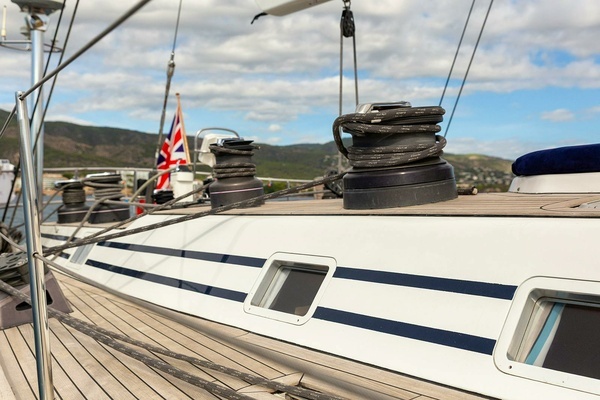

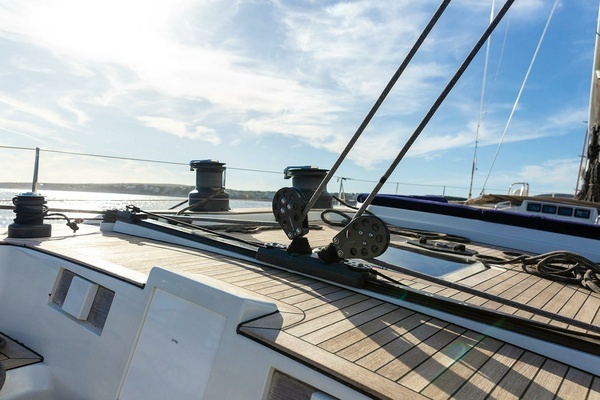

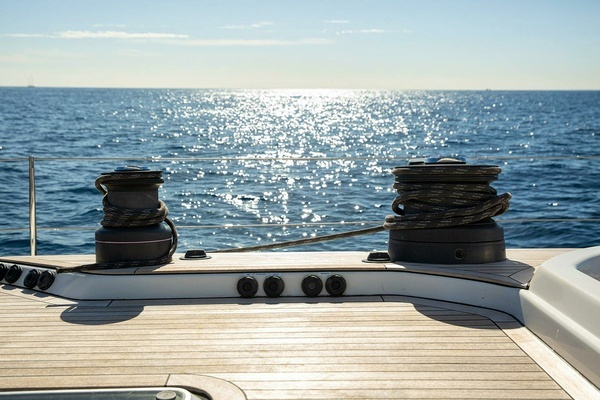

Winches:
2 mainsail Harken 42.2 ST2 downhaul Harken 53.2 ST4 reef Harken 66.2 ST
rigging, mast and sails
Rigging and mastCarbon mastTriple spreader with led lightsSeparated storm mainsail Harken railNitronic 50 stainless steel rod shrouds (replaced in May 2015)Carbon boom
Standing riggingBrands: Harken, Spinlock, Nautor.Genoa jib and staysail sheet stainless steel Harken railsMain sail Harken rail3 + 3 + 2 reef Spinlock jammers
Sails (cutter rig)1 dacron Elvtröm full batten mainsail1 dacron Elvtröm jib1 dacron Elvtröm staysail1 gennaker Elvtröm with sock1 dacron Elvtröm storm mainsail
I = 30,00 m
J = 9,10 m
P = 27,40 m
E = 9,10 m
Fore triangle = 136,5 m²
Main sail = 124,7 m²
100% jib = 136,5 m²
Spinnaker = 491 m2
accommodations & interior
Owner:

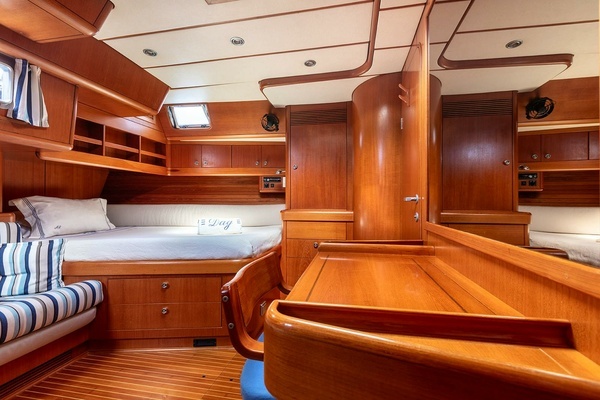

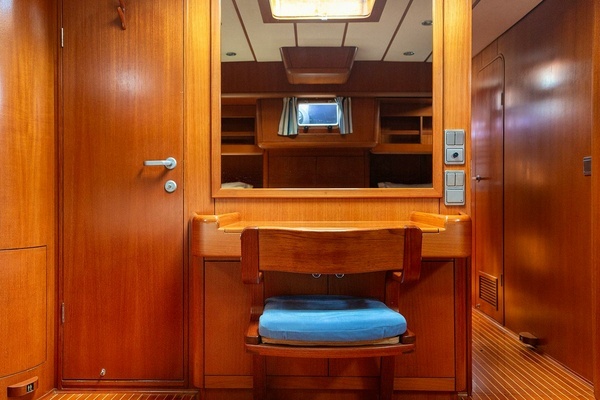

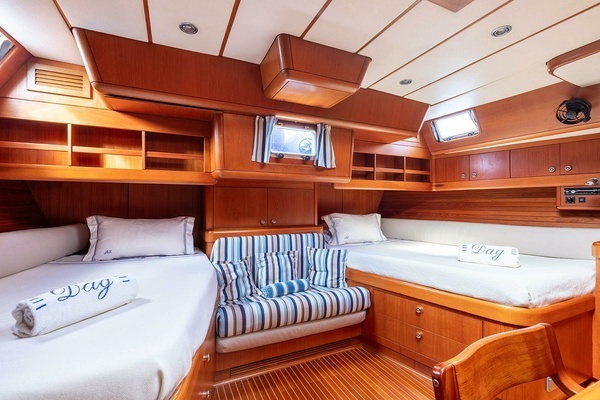

- Master cabin aft with two queen doubles. Forward facing sofa. Owners study with classic Nautor Swan chair and desk. Lots of natural light through three portholes. Two hanging wardrobes and lots of additional storage in drawers under beds and head height cupboards.

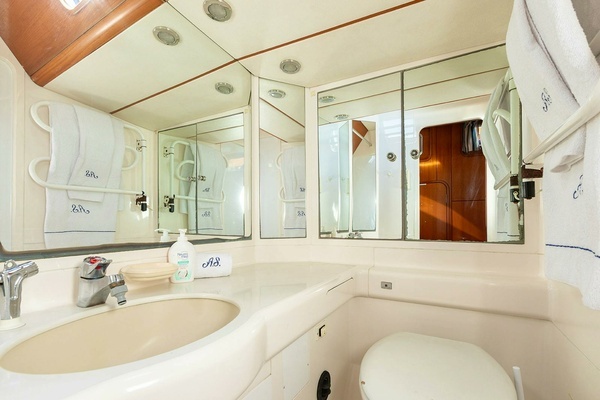

- Ensuite with large shower.
Guests:

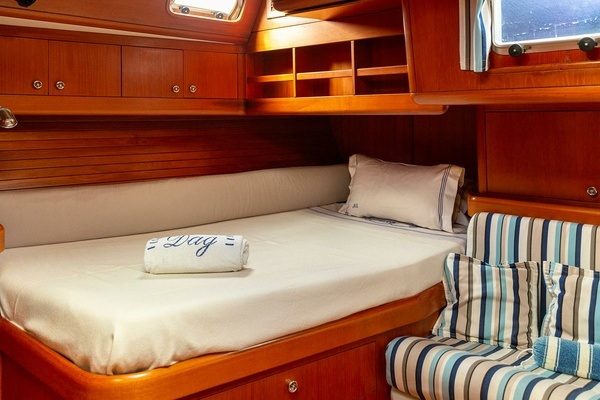

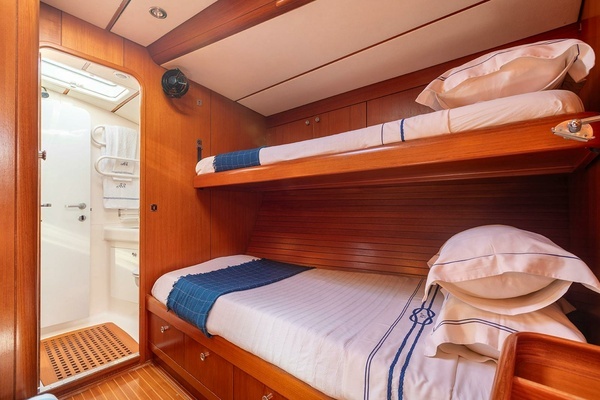

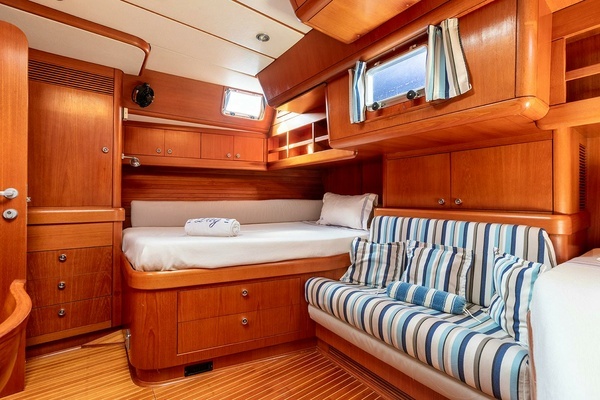

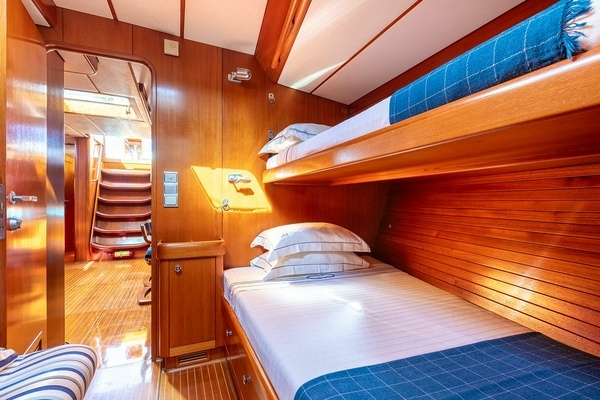

- Two mirror image ensuite guest cabins midship with large lower beds and upper bunks. Hanging wardrobes, large dress mirror and sofas. Lots of natural light through large deck hatch.

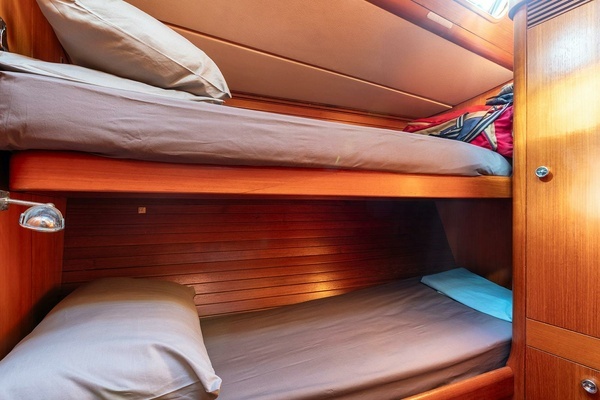

- One smaller bunk cabin aft-starboard. Uses day-head as it’s ensuite.
Crew:

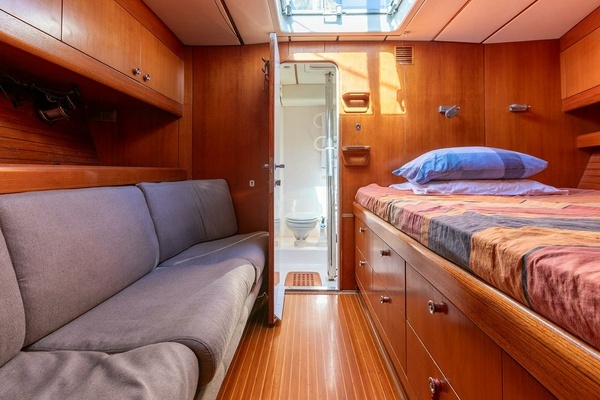

- Crew area forward with large double bed and sofa. Hanging wardrobe and lots of extra storage forward. Main entrance through ensuite and second entrance through foredeck hatch via teak steps.
INTERIOR:Â
- Classic Nautor Swan varnished teak interior with exceptional workmanship.

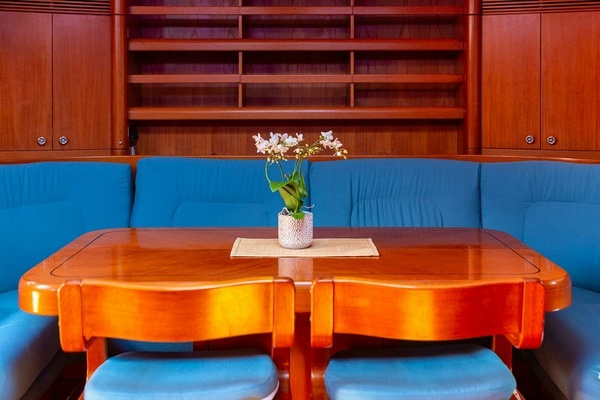

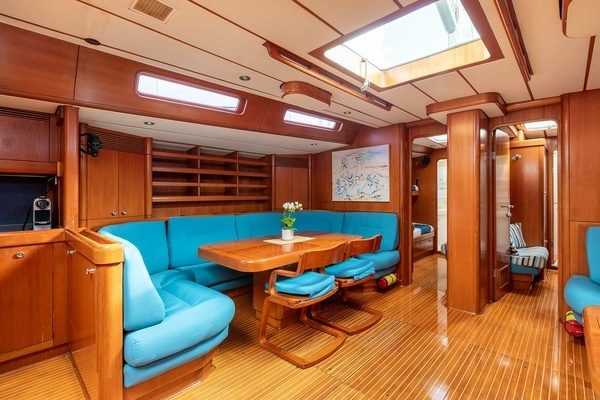

Main Salon/dining:

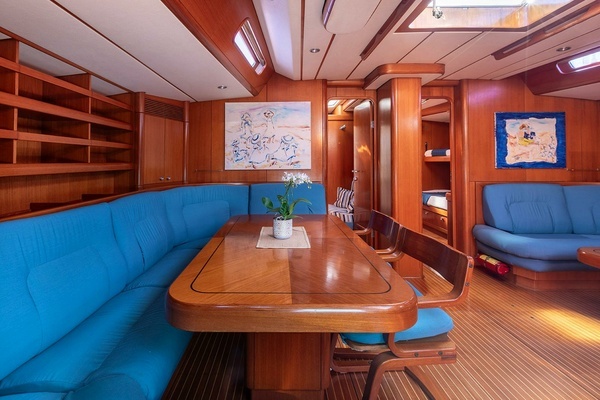

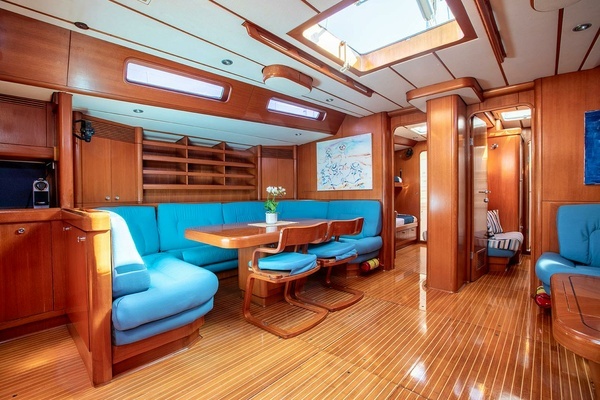

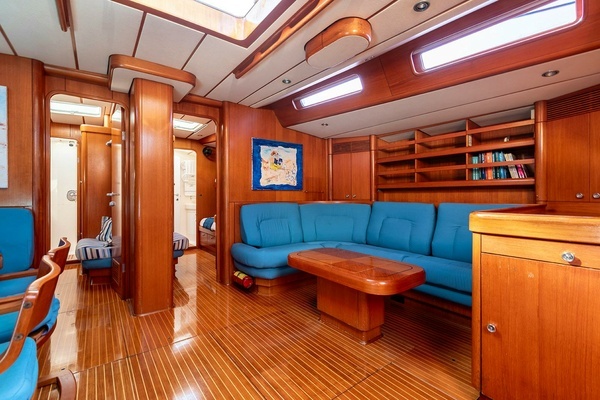

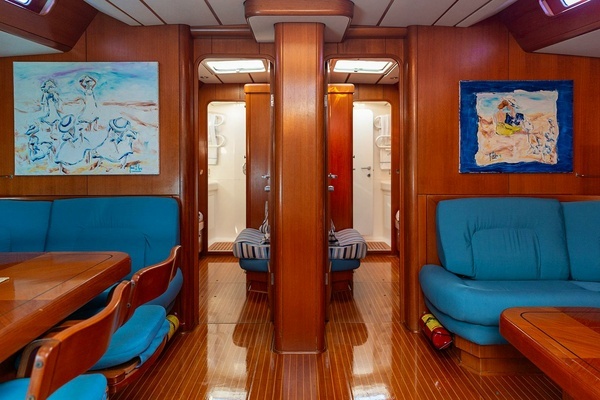

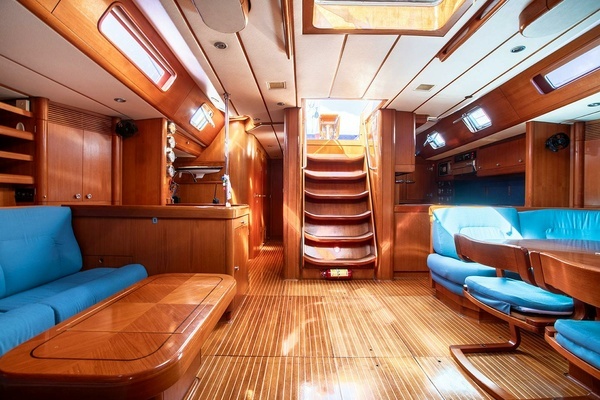

- Large saloon split with dining table to port and lounging sofa to starboard. Flat screen TV, audio and wi-fi. Navigation desk aft-starboard side facing forward. Wine fridge and ice maker.

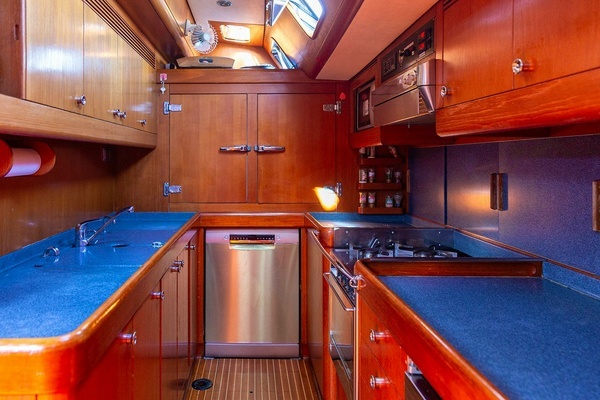

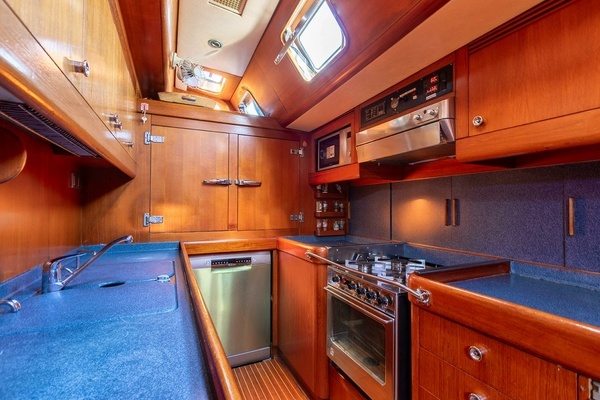

Galley:

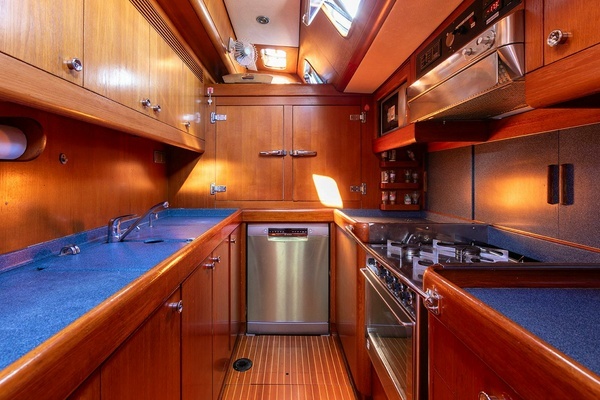

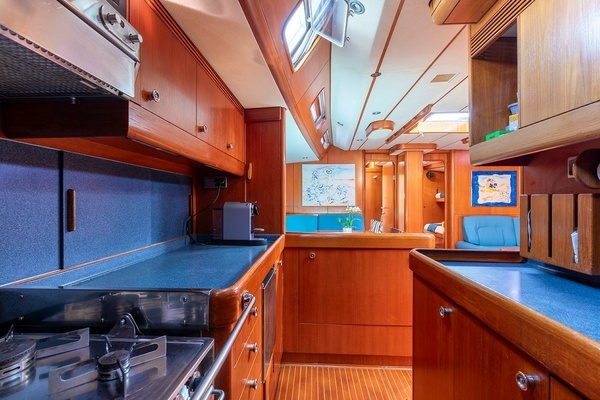

- Spacious and functional U-shaped galley well laid out with modern amenities and plenty of fridge and freezer space. 5 burner gas hob. Bosch Dish washer, Miele Washer drier.
galley & laundry equipment
AppliancesMiele washing machineMiele dryerBosh dish washer
machinery
Â
EngineCummins QSB6.7355HOI 355 hp (replaced in December 2020)ZF trottle (replaced in December 2020)Brunton 4 blades propeller (replaced in May 2021)
GeneratorOnan MDKDV 19 kw (replaced in October 2022)
navigation & communications
Navigation electronic equipmentB&G 2000 Hercules power unit3 B&G GFD displays4 B&G 20/20 displays2 analogic displaysB&G Hercules PilotBarometerAngle of helm displayB&G stanilized compassB&G MHU wind stationb&G Chartplotter/Radar4G B&G radarB&G AIS
Computer1 ASUS MINIVIVO pc with MaxSea softwareHP 15’ monitorEPSON WIFI Deskjet printerInternet WIFI
Communications2 B&G DSC VHF1 Icom handy VHFMC MURDO epirb
electrical systems & batteries
DC electric plantService batteries 24 V 800 AhRdio batteries 24 V 400 AhEngine batteries 24 V 135 AhGenerator battery 12 V 90 Ah
AC electric plantShore power 115 V 50 A 60 Hz tramite (with 6 kVA transformer)Shore power 230 V 50 A 50 Hz tramite (with step up / step down 12 kVA transfromer)3000 W 230 V 50 Hz MASTERVOLT inverter (installed in 2019)
Batteries charger2 Mastervolt 24/75 220 V for servce batteries1 Mastervolt 24/50 220 V 50 A for radio batteries1 220 V for main engine1 220 V for generator
plumbing system and tankage
Fuel tankage2 stainless steel tanks 870 liters each (1,740 litres total)
Fresh water1,390 litres in 2 stainless steel tanksSPECTRA 24 V watermaker (120/130 l/h)2 24 V Jabsco fresh watre pumps220V 100 liters boilerHot water also from main engineHot and fresh water shower on swimming platmorm and aft cockpit
Bilge pumps2 electric submerged with alarm1 bilge pumps in the fore bilge2 Whale Titan emergency manual pumps1 emergency manual pump in the chain lock
hydraulics
HydraulicsHarken power pack 8.12 unit2 running backstays Harken 66,2 ST winches2 mainsail sheets Harken 66.3 ST winches2 genaojibs Harken 980.3 ST winches2 gennaker /spinnaker Harken 1120 ST winches2 halyard Harken 66.3 ST winches1 hydraulic transom haych control2 fore sails hydraulic Reckmann furlers (overhauled in May 2015)Hydraulic power from generator’s PTO1 x Lewmar 300S bow thruster1 Navtec control unit1 mainsail base hydraulic Navtec piston1 backstay hydraulic Navtec piston1 forestay hydraulic Navtec piston1 vang
entertainment
Flat screen LCD TVSony DVD/CD player with 4 loudspeakers in salon, 2 in central cockpit, 1 aft
safety equipment
2 life rafts 1 JON BUOYADK 1000 BMC Medical kit
maintenance and refit work from 2022 to 2024
2022- New Rexroth Generator hydraulic pump
- Full main engine service
- Full generator service
- New Onan 19 MDKDV 50Hz 12 v 1500 rpm service generator
2023 - Restoration and polishing of stanchions
- Restoration of bow railings
- Restoration of stern pulpit stanchions
- New shore power cable
- New Rule 3700 pump
- New Rule bilge level alarm
- New Generator

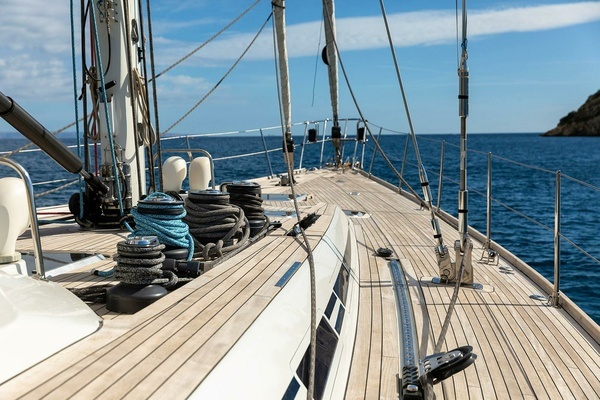

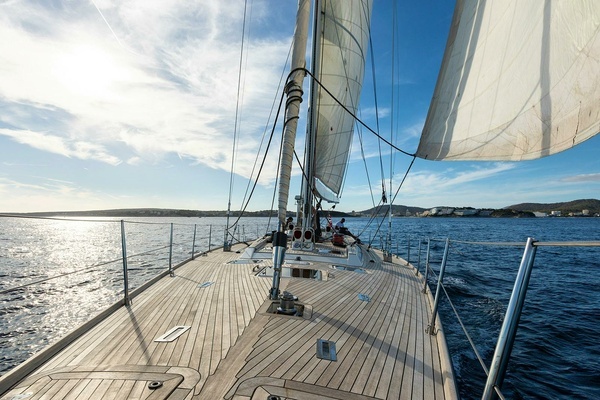

2024 - New teak deck
- Mast – Dismantle, reassemble and center.
- Cleaning of all shrouds
- Cleaning of genoa and trinchett
- Miscelaneous repairs on sails
- Anchor restoration and galvanising
- Cleaning of all frames
- Relamination, filling and painting of aft Hatch
- Ultrasonic rigging check
- Service and mainteinance of all winches
- New rod rigging (same as original)
- New chiller
2025 - Painting of starboard hatch
- Replace all sacrificial anodes
- Service and maintenance of all seacocks
- Gelcoat of exhaust cap and starboard Hatch.
- Antifouling (Hempel Mille)
- Transom repair and painting including NDT test
