Brokers’ comments
The 80 concept called for a light, fast, elegant and comfortable super yacht, taking the Cruiser / Racer concept to the next level - ‘Speed, seaworthiness, technology and innovation without compromise’.
UMIKO (Ex-Conquistador, Ex-Astro, Ex-Maligaya) had an extensive refit in 2012-13.
UMIKO sleeps up to 10 guests in 4 cabins when two crew live forward. However, 6 guest with 3 crew is recommended for maximum comfort and service.
Since August 2018, UMIKO has been incredibly successful with both cruising and racing charters in the Meditteranean and Caribbean. She has also had the benefit of numerous upgrades including AT instruments and race processor, Harken primary winches, 2018/2019 North3Di Sails, Fleet Broadband Sat Comm’s, new generator, new DC hydraulic pumps, etc.
Maintained to exacting standards this Swan will appeal to an owner looking for the very best, whether they wish to cruise, race, charter....or all of the above!
2025 AWARDS:
The construction is partly high tech with honeycomb cored pre-pregnated carbon fibre structural bulkheads and main deck. Carbon fibres are used to reinforce the hull stiffeners.
Hull construction is of proven solid single skin glass fibre reinforced Vinylester laminate.
Finish:

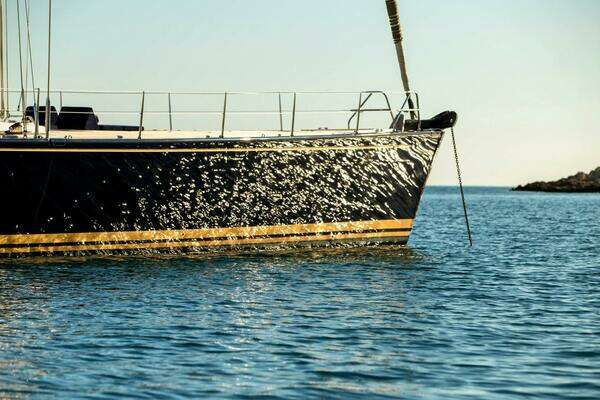

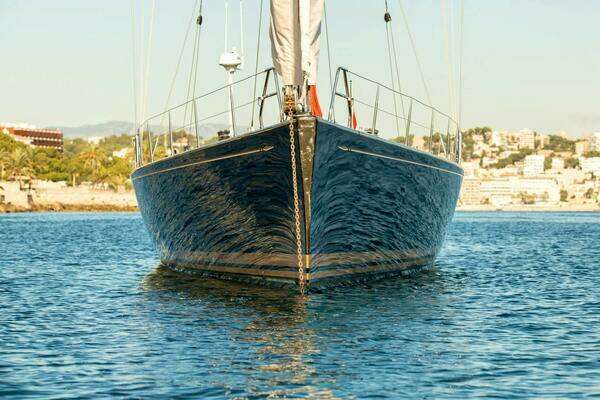

Coloured topsides, originally in gel coat dark blue (instead of standard white) - repainted to Awlgrip Majestic blue (January 2017).
Cove stripe and boot top painted in Pale Gold Awlgrip.
Bottom paint, International Micron Extra, black.
Transom re-painted 2021
Keel
T-Bulb keel fitted (06/2002)
Rudder and steering system:-
Carbon fibre spade rudder with two self-aligning JP3 roller bearings

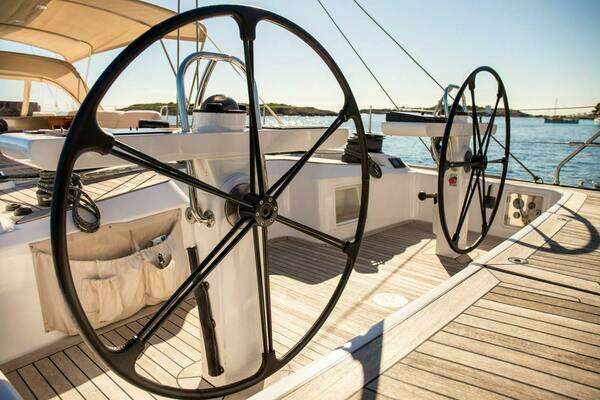

Two steering wheels standard 120cm carbon
Weed cutter forward of the rudder post
Rudder dropped and inspected (2020)
Keel removed and resealed 2020, new keel nuts.
Deck
Honeycomb cored pre-preg carbon fibre structural bulkheads and main deck.
Teak replaced to original specification 2012
Teak helm boards with two settings, new 2020.
Winches, power pack, & windlass:

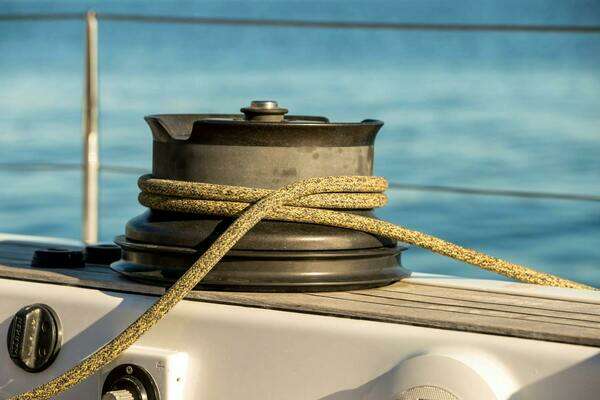

Winches all upgraded from standard package:
Primary winches 2 x Harken 1111 HL hydraulic, connected to 2 removable pedestals. (New 2019)
Secondary winches 2 x Harken 1110.3 STAHY, hydraulic self tailing with top drive.
Main sheet winch Harken 1110.3, hydraulic self tailing with top drive.
Traveller winches 2 x Harken 48.2 STA.
Halyard winches 2 x Harken 980.3 STAHY, hydraulic, self-tailing including black
anodised aluminium base to be added under the winches on deck.
Additional utility winches - 2 x Harken B74.2 STA
Additional snubbing winch on centreline aft of mast, Harken 812C
4x Mast base winched bases reinforced with Carbon C-Plate bonded in 2018.
Harken Power Pack
New DC pumps 2022, for following units:
Secondary winches x 2
Primary winches x 2
Halyard winches x 2
Main sheet winch
Anchor Windlass,
Reckmann headstay furler
Emergency ‘stop’ switch for hydraulic winches located at both steering wheels.

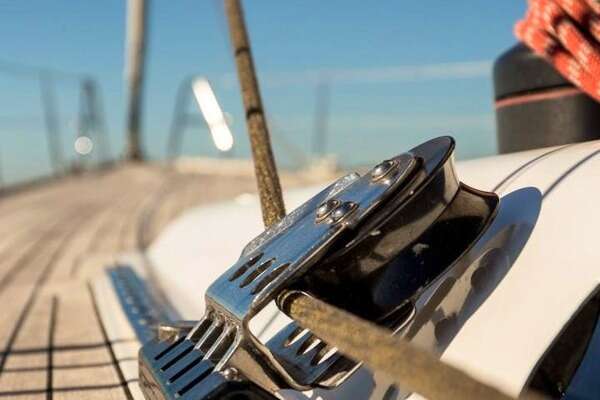

Fittings for running rigging:
Roller bearing stand up lead blocks at mast foot, 10 pcs, no lines under deck.
Additional pair of genoa tracks, including cars.
Mainsheet track with cars on bridge deck.
Fore guy foot block aft of the anchor windlass hatch and a stand up block on fore deck.
Aft guy blocks moved outboard to the bulwarks just forward of the lifeline gate, both sides.
Spinnaker barber hauler pad eyes, each side, aft of the gate, Wichard 6506.
Headstay tack fittings, 2 pcs, (no furling unit).
Double genoa turning blocks 2 x Harken H5073 base plates reinforced.
Fore guy (2:1) pad eye 200mm.
Nautor made, stainless steel threaded deck sockets and screw in eyes for stand up Harken block at foredeck area.
New soft shackles throughout.
Carbon prodder / bowsprit with Harken stainless padeyes for tack and bobstay
Other fittings:
Recessed 16” mooring cleats (bow, stern and amidships). Versare del Monte.
Fold-up seat on pushpit, both sides.
Carbon fibre radar post mounted through deck, removable and with quick connection for the cable including cover.
Gangway fitting.
Bathing ladder / side boarding ladder with teak steps.
Screw in pad-eyes for the dinghy.
Stainless steel chafing plate at anchor chain inlet at the carbon arm.
Shore power intakes through a small hatch in port side of the transom for the cables with the connection in the lazarette.
Deck prisms over the heads forward of mast.
Aft deck hatch to lazarette.
Storage locker for 2 - 8-person soft pack life raft and other safety equipment port side of companionway.
Interior forepeak fittings:
Two rails in the forepeak, one each side high up beside the chain locker (along ships, above the level of the chain locker inspection hatch).
Hanging rails for storage of spare sheets, halyards and mooring lines.
SAILS
2018
- North 3Di 700 Ocean Mainsail
- North 3Di 780 J2
- North 3DL J4 (2012/as new)
- North A2, A3, A4 (Superkote 250)
- C-tech inflatable snuffer for A4.
2019
- North 3Di 780 J3
- North 3Di Code Zero 75% IRC. Future Fibres topdown cable. KZ Offshore furling unit.
- North Cruising Jib NPL Ultra X
Other
- Doyle cruising/delivery Main
- North A1.5
- North A2
- North A5
- North Spinnaker Staysail. Head swivel and furler.
- Trysail and Storm Jib
- various older race sails
- IRC 1-390
- ORC 431-6
Main Engine:
Yanmar 4LHSTP, 4 cilinder, 240Hp, new 2012. Full engine rebuild April 2022.
3 blade Gori folding propeller, serviced 2019.
Accessories on engine:
Heat exchanger for the consumable fresh water is included in the same circuit, making hot water available whenever the engine is running.
Service alternator. Removed and serviced 2022.
Service:
Engine room completely refitted 2022
Exhaust system:
Main engine exhaust outlet at the transom.
Wet exhaust system with fibreglass silencer and gas/water separator for main engine and diesel generator, cooling water is discharged below waterline, exhaust gases, discharge through transom.
Fuel:
Fuel volume 2000 Litres in stainless steel tanks.
Fuel filters:
Racor 75/500 FGX P 10 for the engine and
Racor 500 FG P for the diesel generator.
Fuel filter / water separator with alarm
Generator:
Fisher Panda i25 (20kW) Silent variable speed. New June 2022
Others:
Forced air ventilation in cabins.
Exhaust ventilation in heads and galley and engine room.
Water maker, Sea Recovery Aqua Whisper, 4,500 litres. Full Service 2022.
Freshwater system:
Integrated stainless steel water tanks.
Deck shower at bathing platform aft.
Fresh water connection to deck washes outlets amidships starboard and in anchor well.
Seawater system:
Deck wash outlets fore and aft.
Black water system:
Linked to the two toilets aft (Day head and Owners) approx. 200 litres.
Forward holding tank linded to crew and forward heads, approx 70 litres
DC system:
Battery capacity 1200Ah / 5h, (600Ah for radios, 600Ah for service). New Service Batteries 2022. New Radio Batteries 2018.
Additional 24V outlet on the aft edge of the galley vent Dorade box forward of the mast and steering wheel pedestal.
Power sources:
Shore power 230V and 115V via 6kVA transformer.
Separate shore power inlet for air conditioning 230V 50A,
(each inlet is provided with polarity alarm)
Inverters and chargers in aired location.
Inverter, Mass 24/500 VA, 230V including transfer switch. New 2021
Inverter for entertainment equipment, Mass 24/1500 VA, 230V including transfer switch.
24V deck outlets selectable 24/12V.
Power users:
Hella Turbo fans, 12 pcs, positioned as: Crew cabin x 2; Owners cabin x 2; Port aft cabin x 2; Navigation station x 1; Port forward cabin x 1; Galley x 1; Captains cabin x 1.
Windex light, Boom light (LEDs),
Lights in the bar unit in saloon,
Navigation lights with switch to alternative power source,
Lights on radar post, forward and aft,
Rheostat dimming switch for boom lights.
Ice Maker run by inverter 24 VDC/220 VAC. New 2022
Air Conditioning:
Clima AC chilled water system, 72.000 BTU, 230V, 50Hz with 7 air handlers.
New 230v pumps 2019.
Panels and controls:
Battery Ah capacity meter DCC 4000.
Thermostat controlled fan for instruments at navigation station.
Flow monitor for cooling water for main engine and diesel generator cooling water.
Separate engine control panel in cockpit
All controls for windlass, transom door, furling, deck lights and horn on helm stations.
General
Leather on the saloon sofas, chairs and navigation seat.
Leather for vanity stools, same as in saloon.
Upholstery material for mattresses, Annala, Helmi.
New mattress owners cabin 2018.
Upholstery material for settee in fo’c’s'le / crew area, imitation leather. New covers 2021.
Canvas lee cloth for all berths.
Canvas covers for all leather cushions for use during delivery and racing.
Lightweight floorboards and plywood/balsa floorboards for yard periods / racing periods painted grey with non skid.
Oilskin locker aft of skipper’s cabin starboard, with shelves outboard and hanging rail.
Teak hooks for hanging lockers, 12 pcs.
Sunbrella and rubber floor protection.
Modifications to standard and general fittings and description:

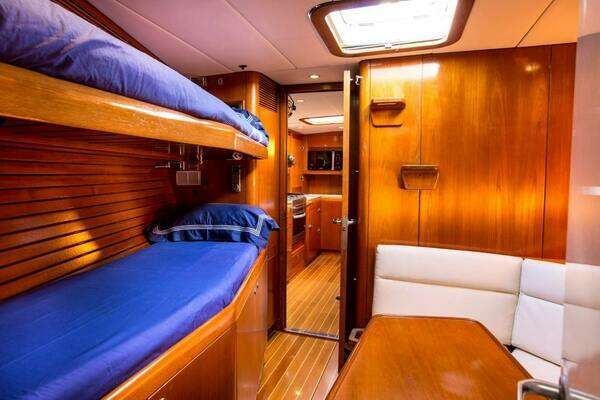

Crew Cabin. Storage stainless bars for sheets, etc.
Upper bunk in teak.
Removable table.
Hanging locker starboard side aft with 2/3 and 1/3 deep shelves outboard.
2 crew beds
ACCOMODATION:
Port forward guest cabin: 1 Double + 1 Pullman
Double lower berth, mattress in one piece, upper Pullman berth (new matresses 2018).
4 storage drawers under the bed
Lockers outboard accessible when Pullman down. Lockers under the bed.
Utility shelf at the head end of the upper berth.
Hanging locker 2/3 hanging, 1/3 shelves behind hanging space.
Port aft guest cabin: 2 singles + 1 Pullman
Fixed berths each side with Pullman above outboard berth.
Lockers outboard accessible when Pullman down.
Drawers under both berths. Upper lockers above inboard berth.
Hanging locker with 2/3 and 1/3 shelves behind hanging space.
Water thermos next to berths x 2.

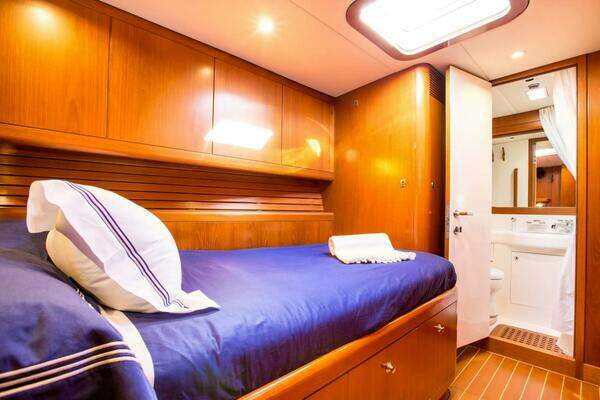

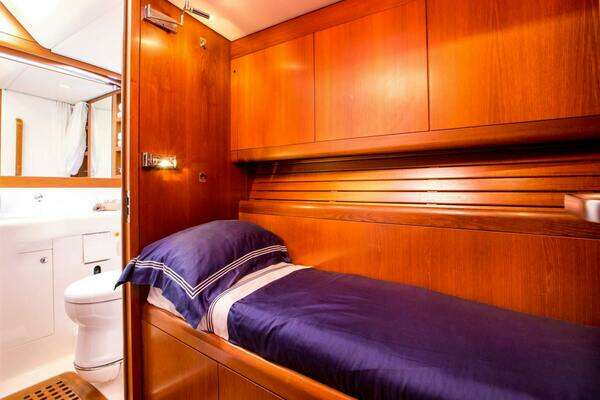

Starboard aft of saloon, Guest or Captains cabin. Single + Pullman
Fixed lower berth and Pullman upper berth. New matress 2018.
Utility shelf at head end of the upper berth.
Hanging locker aft with shelves in the lower part, hanging space in the upper part.
Water thermos next to bed.
Foul weather gear and safety harness locker aft of Capt.’s cabin (port side).

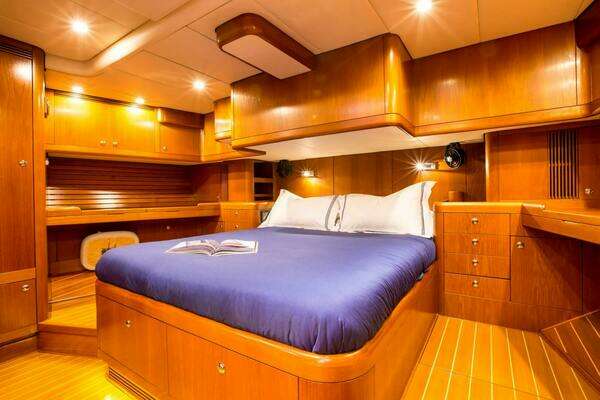

Owner’s Cabin Aft - 1 Double
Centreline berth, drawers under the bed.
Full-length clear mirror flush with the forward bulkhead. (New 2017)
Light switches and air conditioning control each side of the mirror.
Vanity stools hinged on port and starboard side.
Mirror in port side vanity lid.
Hanging lockers 2/3 hanging, 1/3 shelf and shelf behind the hanging space outboard.
Book shelves on both sides.
Water thermos, 2 pcs, one each side of the bed.
Drawers each side aft of the bed.

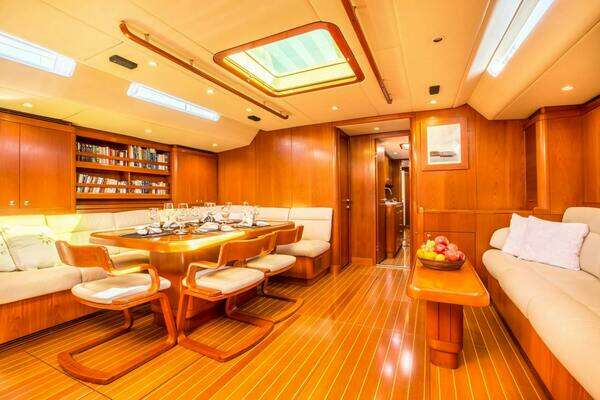

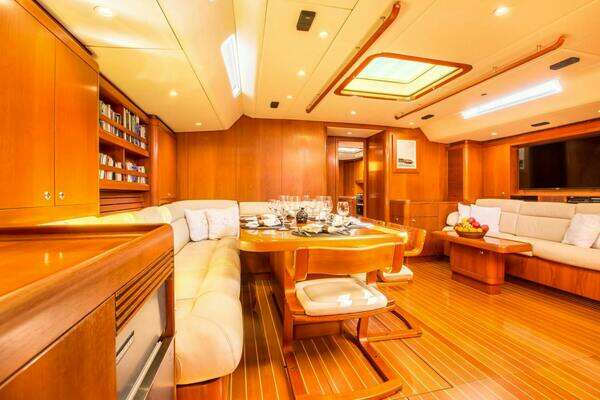

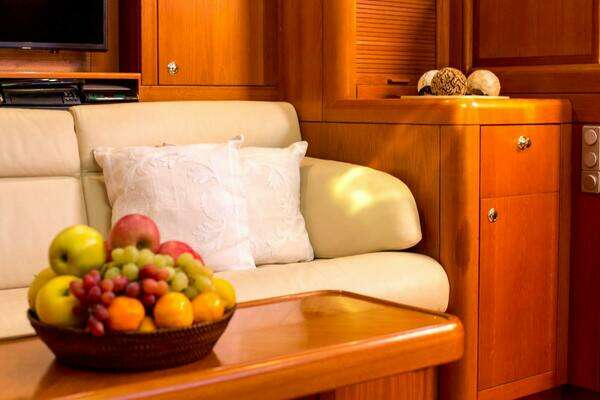

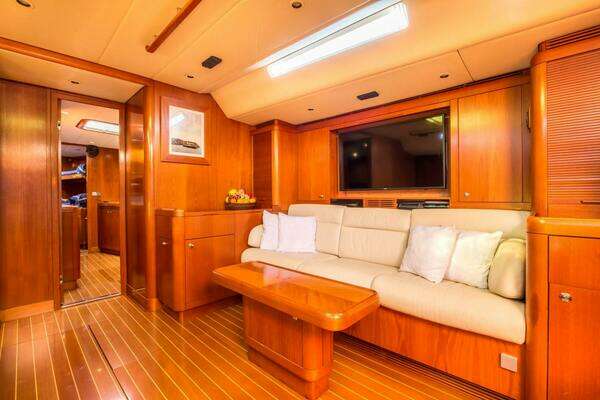

Saloon
Bar unit with top loaded drink fridge and icemaker on port side aft with glass stowage on one side and bottles on the other (mirror back wall in bottle locker).
Three separate roller shutters in front of entertainment units on starboard side.
Stowage. Pull out crockery drawer forward on starboard side.
Book shelves between the two lockers on port side.
Three chairs at main saloon table, with locks for anchoring.
Coffee table on starboard side, removable, stowage space under the table base.
Space under locker on starboard aft of the settee dedicated to computer and printer gear & outlets etc.
Stowage space inside the port saloon table base.
Stowage space under the saloon port side sofa forward (houses the Owner’s manuals & Bose sub woofer).
Opening lockers to the narrow space outboard of the companionway ladder.

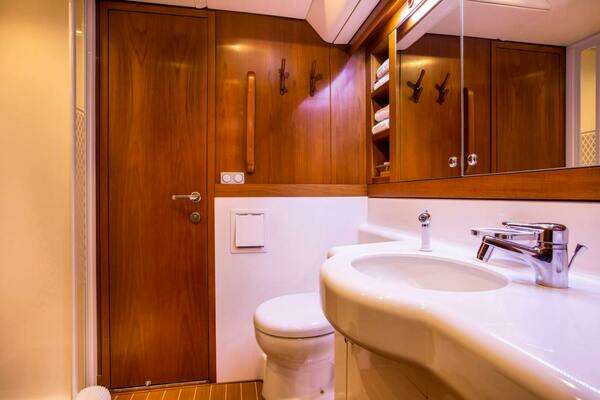

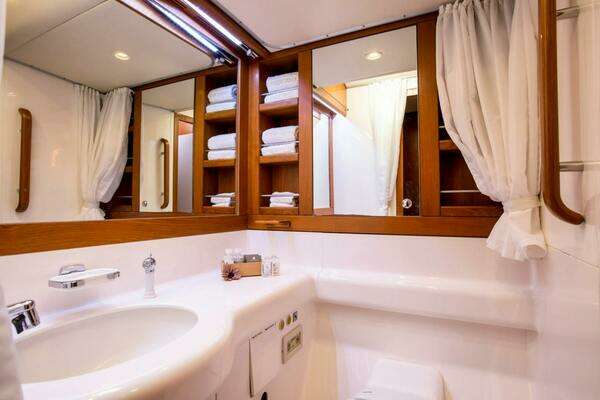

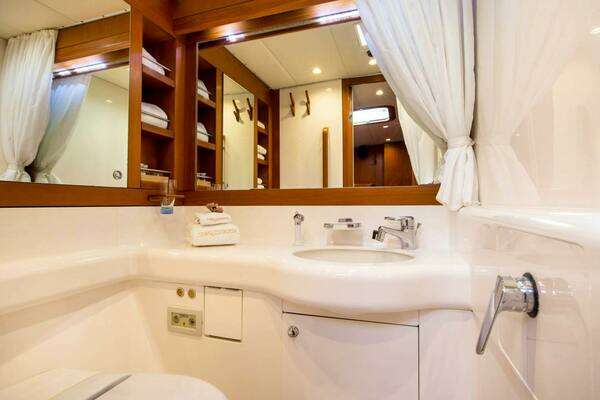

Heads
New Tecma heads throughout 2012
Toilets on port side aft made into one larger toilet, and separate shower stall access also from the port aft guest cabin.
Overhead shower and hand shower unit in crew toilet and captain’s toilet.
Utility shelf in Owner’s shower stall.
Soap holders in all heads.
Shower curtains in the port fwd toilet and in the starboard aft toilet.

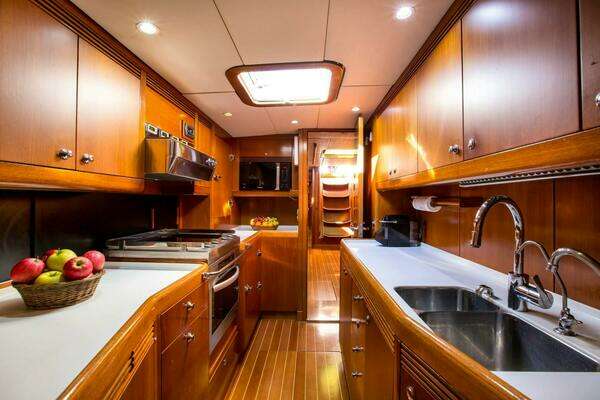

Galley
Counter tops Corian, Cameo off white.
Draining locker for plates.
Microwave oven.
Miele induction 4 burners with Miele oven.
Refrigeration
Icemaker Hoshizaki 230V – installed in saloon, including carbon filter.
3x new fridge and 2x new freezer compressors 2022. Refrigeration electrics and plumbing also replaced

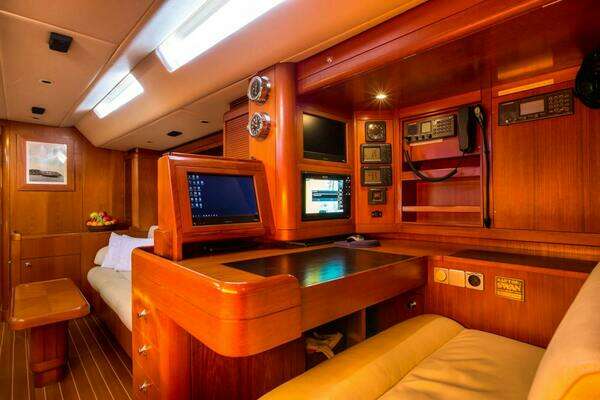

Navigation area
Chart stowage in teak box above navigation area.
Table lid, chart table lid and outboard lid with leather covers.
Instrument console at the inboard forward corner of the chart table.
Navigation station seat.
Small teak shelf with a teak rail, 10cm under the outboard top opening lid, 15cm deep.
Teak rail across, inside the navigation desk.
Overhead paper charts storage locker.
B&G Zeus III Touchscreen plotter.
Nav PC with wireless keyboard and mouse.
Comm’s PC with wireless keyboard and mouse.
Iridium Sat Phone.
DSC VHF.
2x B&G 20/20s
Sailor 150 Fleet Broadband Sat Comms
