Pre-Sale survey available to qualified buyers
IJPE: 1020.00 sq ft
I: 58.50 ft
J: 16.67 ft
P: 53.50 ft
E: 19.92 ft

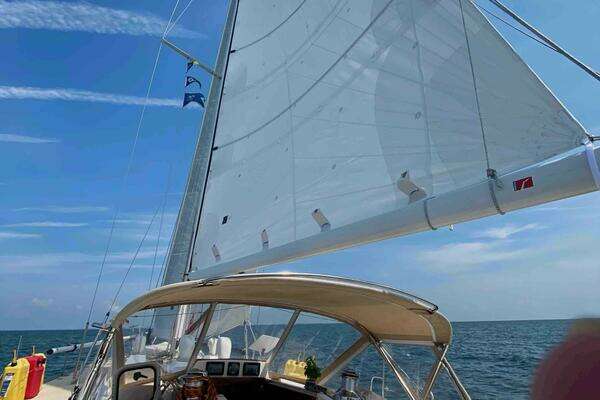

Working Sail Area: 1021.00 sq ft
Quantum Tri-Radial Polyester / Dyneema composites- Five full battens -2023
135% genoa
MC6000 105% cruising jib - Approximately 10 seasons
Antal mast cars
Dutchman flaking system
Asymmetrical spinnaker with Banmar top-down furler and Selden carbon fiber bowsprit
Harken Mark II roller furling system
LOA: 46 ft 0 in
Beam: 13 ft 10 in
LWL: 40 ft 6 in
Maximum Draft: 6 ft 2 in
Displacement: 24400 lbs
Ballast: 9330 lbs
Headroom: 6 ft 2 in
Zodiac RIB
9' 6"
Hull Fiberglass
Yamaha 15 hp 2-cycle engine
2017
Total Power: 76 HP
Engine 1:
Engine Brand: Yanmar
Year Built: 2001
Engine Model: Yanmar 4LH-TE
Engine Type: Inboard
Engine/Fuel Type: Diesel
Engine Hours:2500
Propeller: Folding propeller
Engine Power: 76 HP
Fresh Water Tanks: (120 Gallons)
Fuel Tanks: (90 Gallons)
Number of single berths: 3
Number of double berths: 2
Number of cabins: 2
Number of heads:
Electric windlass
New replaced Dodger and bimini covers
Re-wrapped leather wheel

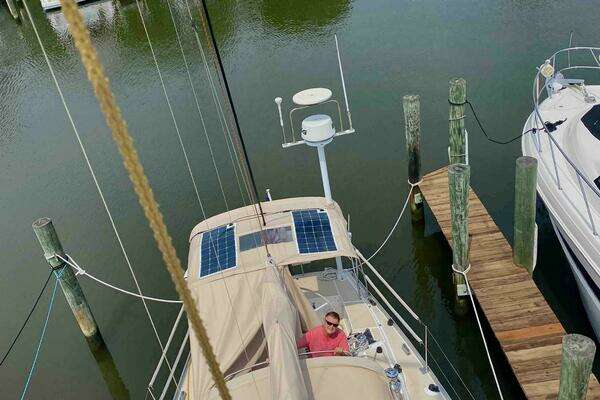

Solar panels on Bimini
Magma infrared gourmet BBQ grill
New dorades
New replaced aft shower
New foot switches for windlass
Satin varnished cherry bulkheads and furniture panels with cold
molded cherry trim, drawer and cabinet faces
main bulkhead with single opening and recessed cherry paneled door
with Mobella lock-sets
Forward and aft heads trimmed with teak
Cherry trimmed vinyl headliner throughout forward, main, and aft
cabins
Polyurethane teak and holly veneer floor panels with underside and
end-grain sealed epoxy
Interior cushions
5" Layered and bolstered main settee split wrap-around cushions
with two-tier split backrests
5” memory foam cushion in forward and aft cabins

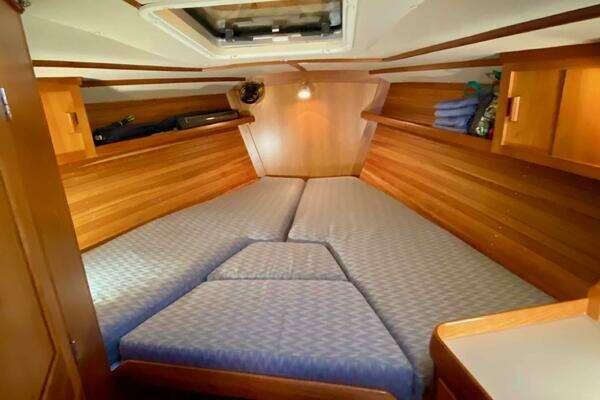

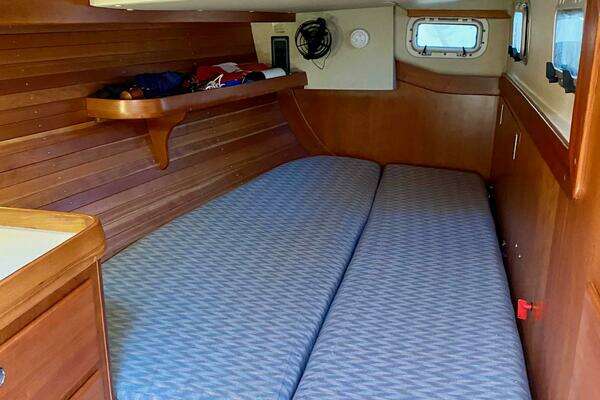

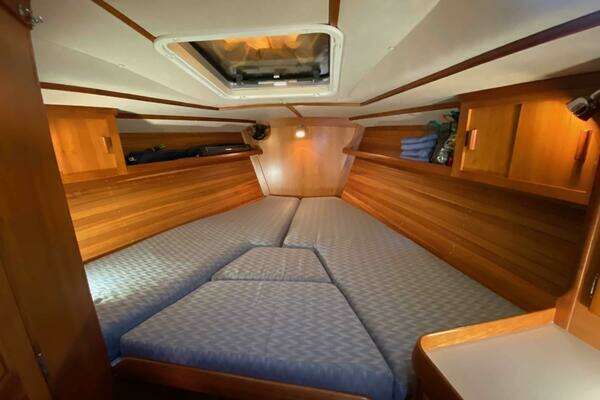

Large twin berth forward cabin featuring 4 drawers, 4 lockers, hinge-
up bunk tops to maximize storage
Hinged v-berth filler, changing seat, hanging locker with louvered
door and bureau/ vanity with 2 drawers, locker and cabin above with
cherry louvered doors and shelves

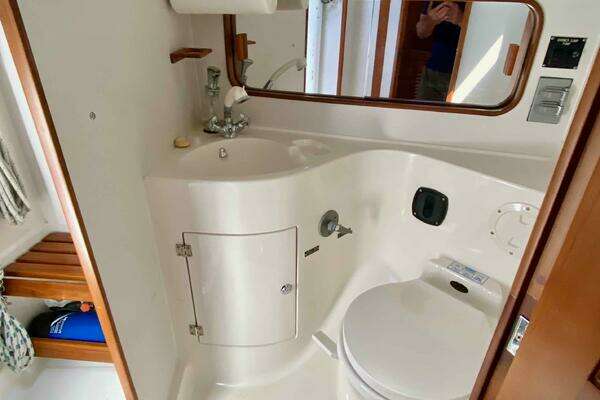

Forward head includes vanity with mirrored acrylic slider storage,
teak towel rack, mirror storage cabinet below molded sink, enclosed
by cherry paneled door and white laminate finish on head side
Stall shower with teak slat bench seat, cabinet locker with mid-
height outboard, shower fixture mounted on bulkhead with
Adjustable shower faucet
self-priming pump services shower, sump and drains overboard in both heads
Pilot berth with main cabin to port with small mid-height
convenience shelf at aft end

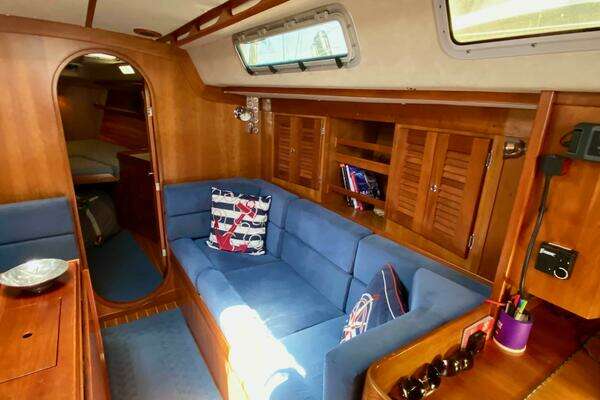

Two storage cabinets with louvered doors to accommodate the main
cabin entertainment center above starboard settee
Two book storage shelves between cabinets with removable cherry
retainer battens
One large drawer and one locker outboard of the starboard settee
backrest cushion
Settee backrests of cherry veneer and cherry trim
Varnished cherry wood hull slats in main aft and V-berth cabins

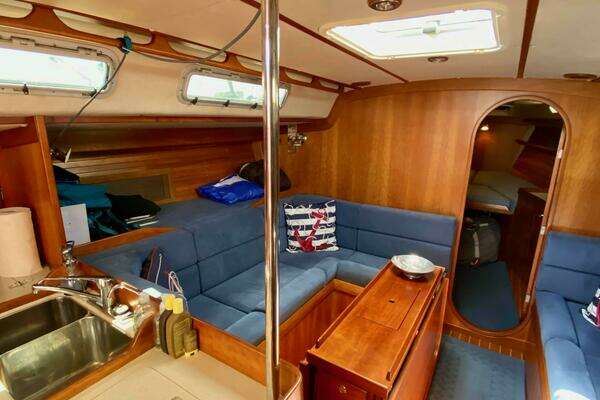

Cherry main cabin drop-leaf table with removable fiddles, two
drawers and internal bottle storage

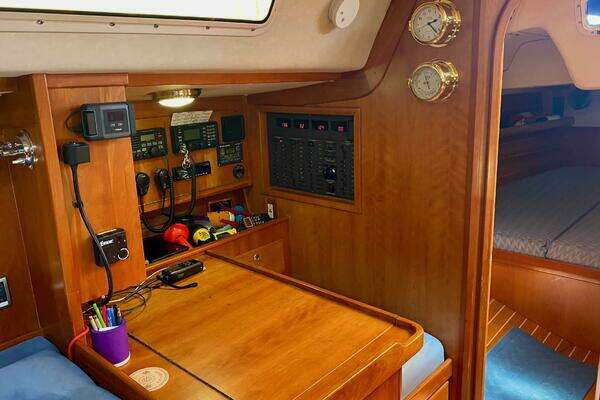

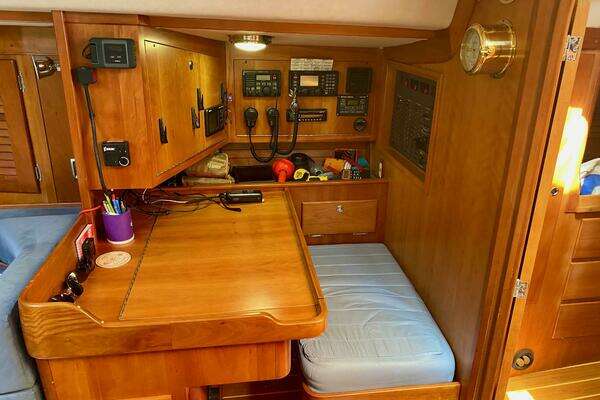

Large 30"x36" sit-down, forward-facing navigation station with
hinged tabletop. Features include an outboard shelf, access to
chart storage and sliding organizer try below table top, cushion seat
of layered bolstered foam

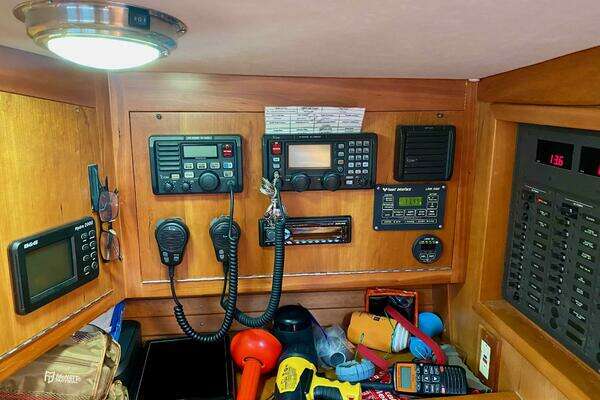

Instrument cabinet with two large wood panel faces hinged at the
bottom for quick access, file storage drawer below the nav seat to fit
hanging files. Storage cabinet outboard of the seat and a series of three
utility drawers on the inboard table support face

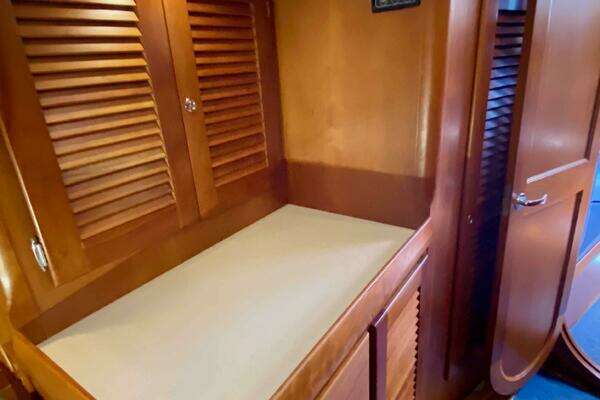

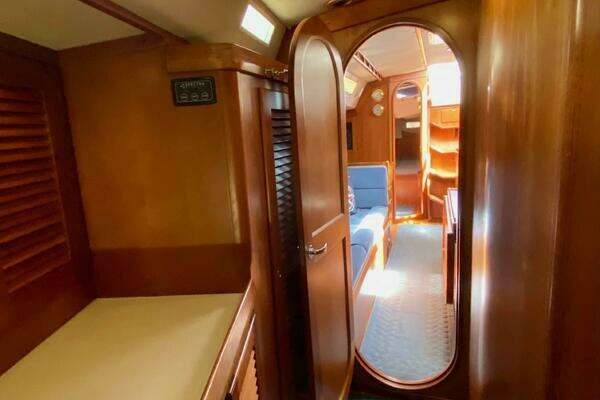

Starboard aft cabin with recessed cherry paneled door, hanging
locker with louvered door and bureau/vanity with two large drawers
Hinged foot locker and cabinet with cherry louvered door and shelf.
Additional drawer above engine

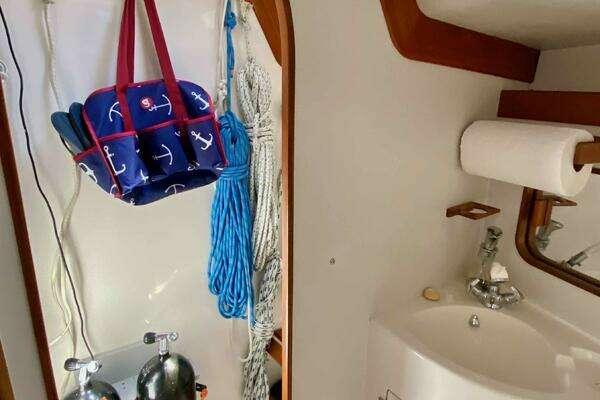

Aft head and shower with combined access via cherry paneled
door. Wet hanging area outboard. The cabinet below, molded sink, mirror,
two teak grab rails, and a direct access door to the lazarette locker are
equipped with a fore and aft divider
Teak companion way steps, cold molded with angled ends and
Treadmaster non-skid for safe entrance and exit
Cherry overhead grab rails in the main cabin
All drawers and cabinets with polished positive-latch push button

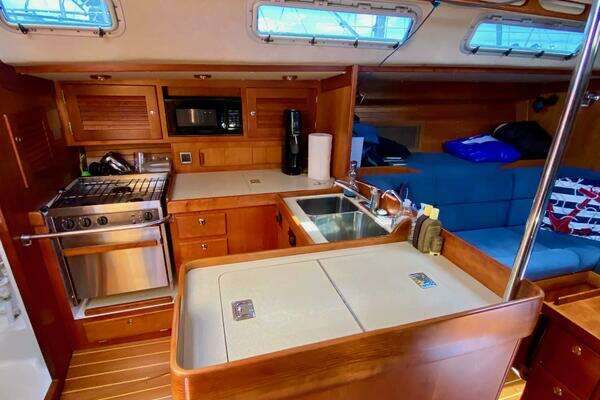

Wheat matrix fountainhead color for counter tops with cold-molded varnished and tapered cherry fiddles
Scandvik polished 8" deep stainless steel sink recessed below fountainhead on forward island with deluxe hot/cold
water pressure
Water goosneck faucet and manual fresh water faucet with whale foot pump
Storage areas in louvered doors below sink for cleaning supplies and a garbage pail with flip lid access
6.5 cu Deluxe icebox located on center island. Features include a molded GRP box insulated with Glacier Bay Ultra R
vacuum insulation panels and foam top. Organizing shelves and interior lighting included
3.5 cu Ice box, convertible to freezer, located outboard of sink. Featuring a molded GRP box with 3-1/2" foam
insulation and mounting space for refrigerator cold plates
Three-burner force 10 propane stove/broiler/oven with thermostat control, patented slide away oven door recess and stainless steel stove bar.
Additional storage foot locker below oven
Plate, bowl, cup, and glass storage compartment on bulkhead aft of stove
Top access dry good storage compartment below countertop directly outboard of sink
Three large cabinets are mounted outboard and covered by three louvered cherry doors. Aft two cabinets installed with
mid-height shelves
Dual slider cabinet, bin storage, and AC outlet mounted below the cabinets
Flatware, utensil drawer, and utility cabinet with mid-height shelf and louvered door under outboard counter. sink-top
cutting board stainless steel grab post on forward inboard galley corner
Hot and cold pressure water system with 12-gallon hot water tank
Service to two heads
Forward shower, galley, and swim platform shower
Self-priming direct sump pumps for showers draining into seacocks
Automatic bilge pump with float switch and dedicated panel on nav station wired directly to DC system
120 Gallons total water capacity in two custom molded tanks, complete with baffles, inspection ports, and secured in place below main cabin settee berths
Raritan PH-2 heads with holding tanks
Overboard "y"- valve offshore discharge and holding tank pump out systems
Two manually operated bilge pumps, one mounted in the cockpit and another in the aft head with a hose to reach the bilge
(ORC category 2)
One group 40 (210 amp) and two group 31(105 amp) deep cycle batteries to serve the house
One Optima 1000 (1,100 CCA) battery for dedicated service to the engine. All batteries are Concorde's Lifeline AGM
sealed, absorbed glass mat type series
ProMariner ProMatic 30-3 battery charger
Balmar 91-150 alternator and max charge external regulator with temperature sensor for alternator
BattJMaxx automatic battery system with remote momentary parallel switch near cockpit engine panel
Master battery switch at nav station with 1,2, both, off for house batteries and single on/off switch for engine start
battery
Deluxe bass AC/DC backlit electrical panel with digital condition meters, circuit breakers, accommodations for optional
generator installation and air conditioning system
Panel accommodations 33 DC breakers(24 occupied with two spare standard) and 11 AC breakers (9 standard)
navigation, steaming/foredeck, anchor, and tri-color masthead lights
50 Amp 110VAC shore power system with 6 outlets, 50ft shore power cord, and guest galvanic isolator
Bonding system to meet ABYC project E-1
Propane solenoid switch panel on galley
Ten swiveling stainless steel halogen reading lamps, halogen overhead lights inthemain cabin, flexible arm lamp at
navigation station, two fluorescent lights, one in each head
Four Hella variable speed cabin fans over berths
Two Lewmar 64CCST self-tailing 2-speed all chrome primary winches with gear ratio of 3.1:1in 1st gear and power
ratio of 64:1 in 2nd gear located in recessed bases on cockpit coamings
Two Lewmar 54CCST self-tailing 2 speed all chrome halyard/reef/spinnaker secondary winches on cabin trunk
Two Lewmar 48CCST self-tailing all chrome mainsheet winches outboard of traveler in recessed bases
Three lock-in Harken speed grip 10" winch handles
Two 8"speed-grip handles for mainsheet
Four cockpit-mounted PVC winch handle holders
Thurston cockpit dodger with roll-up forward window, removable side curtains, stanchion supports and stainless steel
grab bar on the aft edge

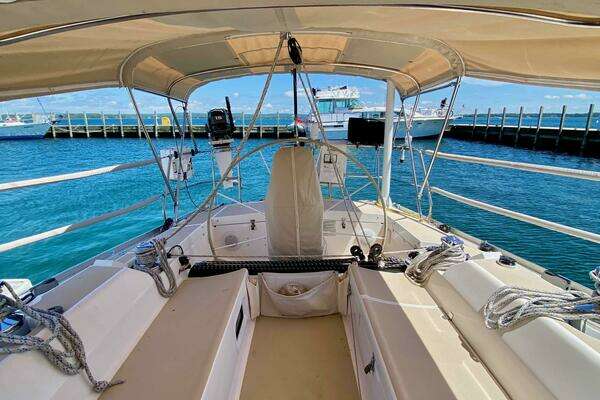

Thurston deluxe helmsman bimini with stanchion supports and viewing window
Five white acrylic cockpit cushions for the helmsman and the cockpit seat
Two Harken black magic 3010 (100mm) foot blocks for genoa sheets when using dodger, mounted on cockpit
coamings aft of primary winches
Two Harken black magic 3006 (75mm) double foot blocks with lock-off outboard of the primaries for spinnaker sheets
and checkstays
Two Harken black magic 3005 (75mm) mainsheet foot blocks with lock-offs mounted on angled pads at winches
2:1 Mainsheet system consisting of two Hraken 1969 AirBlocks (75mm) mounted in traveler and one 3007 AirBlock
(100mm) attached to boom bale Harken 560-S big boat mainsheet traveler track with Harken 1939/1935 car with control blocks for 6:1 purchase led
to both sides of the cockpit to 1893 track control ends through side-mounted 222 blocks to 150 cam cleats
Two 168 swivel blocks to adjust the traveler from the forward or aft side of the track
Single rope clutch mounted in cockpit for head sail furling
Lewmar Concept 2 anchor windlass system with #203 ropelchain gypsy, manual override, 1S0 amp breaker in nav
station, and held control unit mounted in forward deck anchor locker, gypsy requires 3/8" ACCO G40 or G80 chain
and S/8" braided rope
Custom 316 stainless steel mast collar with 10 bales for halyard and reef lines and forward halyard bar
Nine Schaefer 08-0S stainless steel halyard and reef blocks with investment cast shackles
Four Lewmar Superlock double rope clutches, mounted in pairs forward of each secondary winch
Two Harken 1969 (75mm) AirBlocks shackled to U-bolts at transom corners for mainsail checkstays
Two Harken 1969 (75mm) AirBlocks shackled to U-bolts aft on toerail for spinnaker sheets
Two clear anodized aluminum "T" tracks (12'X1.25") for jib/genoa leads. Additional 3'X1.25" track mounted outboard
of 100% jib position for outboard leads
Two Schaefer 32-33UC screw-pin type jib/genoa lead blocks
Two Schaefer OS-99 snatch blocks for spinnaker twingslor outboard jib/genow leads
Two stainless steel t-track slider cars
Asymmetric spinnaker deck gear, including: two Harken 1969 75mm AirBlocks mounted on U bolts near stern pulpit
and one 1969 75mm AirBlock mounted on anchor roller
White molded flagstaff mounted in 316 SS deck edge close to center line with 4X6 American flag
ORC bow pulpit of 316 SS with double rail offshore navigation lilghts and forward gate
ORC stern rails of 316 SS with two rail split design including a stern boarding gate to starboard and stern light
Tapered 316 SS life line stanchions with SS bases mounted to toe rail
Double life line height to meet ORC standards with boarding gates to P and S using Gibb hooks
Padded Sunbrella lifeline covers for each life line outboard of helmsmen's station color matched to bimini and dodger
Two 10" bow cleats, two 8" stern cleats, two 8" amidships cleats
Custom designed 316 SS bow roller
Seven Lewmar ocean series articulated, bronze tinted acrylic hatches: size 70 on foredeck, size 60 in main cabin, four
size 12 over forward cabin, aft cabin,shower, head and one size 10 in aft head
White framed Bomar opening ports with screen in cabin trunk and in cockpit walls for aft quarter cabin and head
Acrylic companionway hatch and two-part acrylic offshore drop boards with inside/outside opening, lockabel hasp
Four 12X20 and two 12X24 poly mesh line bags one foredeck double lined bag
Four vetus 4" dorade cowl ventilators to service forward cabin, head and main cabin
Removable stainless guards for forward dorades
316 SS swim ladder with gray PVC treads mounted on swim platform. SS PVC tread mounted on transom
Hall spars carbon fiber mast of pre-peg carbon fiber autocalved at 80PSI at 250 deg F
Mast includes double airfoil carbon spreaders, carbon goosneck, Awlgrip off-white finish, painted black bands, wire
runs in conduit, hall/antal main sail J rack with loader and end fittings to accommodate sail maker provided Antal
mainsail sliders and or boltrope
Also included with the mast are: Spartite mast wedge material, offshore tricolor/anchor light, bow and deck light with
SS guard and J lag halyard cheek block at masthead and cleat at deck
Hall spars boom of 6061-T6 aluminum with off-white Awlgrip finish, welded goosneck fitting, lug for OuikVang internal
12:1 mainsail out haul with external cleat, bale for mainsheet block, and painted bands. Outboard end to
accommodate single line reef to starboard and second clew reef to port
Hall "J" length carbon fiber whisker pole with 2 bridles and trip line, short track on from of mast and two deck
mounted retaining clips
Navtec continuous rod rigging and N690 style open body turn buckle with headstay- 17 pre-assembled furling
system, back stay-17, uppers-17, intermediates-12, lowers-22
Harken MKII unit size furrling system with airfoil performance extrusion, corrosion-proof spool and drum, tapered
torque tube, AirSwivle for reduced weight aloft, cat aluminum hardcote anodized chafe guard, and all black low stretch
New England adjuster line
Hall rigging package includes: two Technora jib halyards and one Spectra spinnaker halyard, each with Tylaska T-12
SS shackles and Flemish eye terminations XLS-900 Spectra spinnaker sheets, one XLS Dacron spinnaker tack line, single 3/8" crystalyne checkstays that
can be clipped forward when not in use, burgee halyard of white 5/32" Dacron cord
Three reef lines are also included; tack reef and clew reef #1 together are one continuous reef line to starboard
Tack reef #2 doubles as Cunningham to port
Clew reed #2 included with its own dedicated hardware
2:1 whisker pole foreguy with Schaefer 504-09 block with snap shackle
Sailtech-17 long integral hydraulic backstay adjuster
Hall d-30 aluminum Ouk-Vang with Harken 30:1 cascading adjuster tackle and powerful stainless return spring to lift
boom in light air and support boom with sail furled, eliminating the need for a topping lift
Custom designed 316 SS chainplates, stemhead, and backstay tang
Seafrost mechanical refrigerator
Additional plates and controls for freezer supplementary 110VAC shore power assist

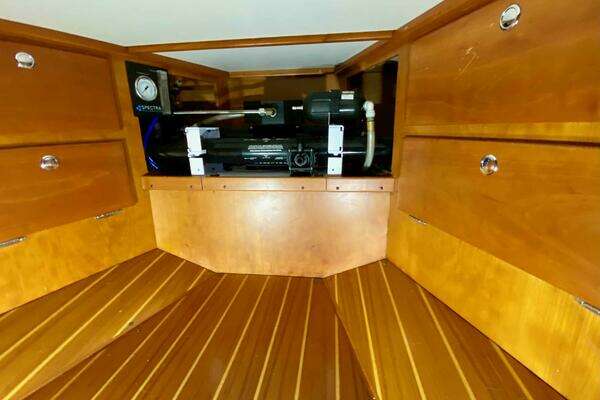

Spectra Catalina 360R Water maker with connections to both water tanks
Supplementary Power Package
An additional 210 amp lifeline AGM battery for a total of 630 amps for house banks (location is instead of bottom of nav
station drawer)
Heart Freedom 25 inverter/ charger (instead of standard ProMariner 30-3 charger)
Heart echo charger (to service engine start battery through the AC system)
Heart Link 2000 Battery Monitor ( for two house battery banks)
Heart link 10 battery monitor (for engine battery)
Supplementary Plumbing Package
Vaccuflush forward head
Dockside water inlet
Seagull water purifier in the galley
Cruising Accessory Package
Cockpit table
Companionway screens
Espar D5LC heating system with ducting into two sleeping cabins and main cabin
Lewmar 64CEST two-speed electric primary winches
Ultrasuede or Ultraleather cover cushions in main cabin (instead of standard)
Edson radar mast through-deck and under-deck mounting platform (for 3.5" diameter mast)
Microwave oven in galley
Sea water wash down in the anchor locker
Harken adjustable genoa leads
ESPAR diesel cabin heater
Lewmar 64 CEST primary winches
Bolstered ultra suede cushions
Memory foam in the master cabin
Radar mast through deck
Microwave in galley
Harken adjustable genoa car leads
Rubrail over cover stripe
28" high pulpits and stanchions instead of standard height
Sea water wash down pump with faucet in anchor locker
Hall spars Windex
Hall spars no strike lighting dissipater
Hall spars GAM antenna and Hall spars painted carbon fiber whisker pole
Hall Spar whisker pole track and car
Hall spars 3rd folding mast step
Hall spars Dutchman mast sheave
Hall spars Dutchman halyard
Bamar Top Down Furler with Selden Carbon fiber bowsprit
Flag halyard and hardware
SS turnbuckle cover (6)
Cockpit full glass and screen enclosure
Dodger to bimini insert
Helm pedestal cover
SS grab rail along aft edge of dodger
SS grab rails port and starboard on dodger sides
SS dodger and bimini supports instead of straps
SS bimini hand rails port and starboard
Power engine oil pump-out system
Max prop 3-blade feathering propeller
Dripless shaft seal
Memory foam mattress in forward cabin instead of standard
Second custom V-berth insert for additional standing room
Second bottom refrigerator door
Alpine stereo AM/FM with Bluetooth, cabin speakers, and Bose marine cockpit speakers
Weems and Plath brass ship clock
Weems and Plath brass barometer
Variable speed cabin fans fore and aft cabins and the main salon
Awlgrip hull flag blue with red boot stripes
Navigator pack, Hydra 2000 type 2
Standard full function display pack, Hydra 2000
20/20 Display pack, Hydra with green backlight
20/20 Display pack, Hydra with red backlight
depth sensor with bronze flush mount hull housing
Speed sensor with bronze flush mount hull housing
Analog display pack, apparent wind angle, 360 degree with cable
linear rudder position sensor pack with installation kit for type 2 ram
Pilot ram drive pack, type 2 with cables (12Vdc, adjustable rose joint)
Cable, 213 mast with bkt, 80ft
Pin, quick release, pilot
Edson J46 tiller arm
Edson 3-1/2" deluxe mast 144"
B&G 4G Radar
B&G 12” Vulcan Chart plotter
B&G AIS NIAS-500
Edson adapter
Edson radar platform deluxe
Edson antenna bracket-starboard and port
Edson 28" antenna extension (GPS antenna mount)
Shakespeare TV antenna 2030-G
ICOM M502 VHF with optional cockpit HM-127 remote
12Volt pedestal outlet
iCom M802 SSB radio
Iridium GO Sat phone
YB tracker
Telephone and TV cable cockpit to nav station
Four regular PFD
Six throwable flotation cushions
JonBouy MOB Recovery module
ATN Storm sail
Fiorentino storm drogue
Para-Tech Parachute sea anchor
Two jack lines, 45ft port and starboard
two radar reflectors
One Bosun Chair
One throwable life sling
One deployable auto-inflatable JonBuoy MOB Recovery Module
4 Fire extinguishers- various types
One submersible handheld HX460S VHF marine transceiver with barometer sensor
One Throwable Rescue line bag
One RIB Zodiac inflatable dinghy with poly pro towing line, bridal, and electric pump
1 15 HP Yamaha dinghy motor and aft Edison pulpit motor mount
One Winslow six-person super-light offshore lift raft with SEP packed survival supplies, inflatable insulated double floor, heavy-duty tripod arch tubes with canopy
One hand held a compass
Various rescue flares
Lake Michigan, Huron, and North Channel charts
Options for more, including St. Lawrence, East Coast, Bahamas, and Caribbean
One 44lb Spade anchor with swivel shackle, 100ft high test 3/8" chain and 250ft 5/8" rode
One fortress Fx-37 aluminum anchor with 15ft 5/16" chain and 200ft 5/8" rode in deployable anchor bag
250ft 5/8" line for on-shore anchoring
Dock Lines and fenders
3 Aires inflatable fenders with covers
Two Taylor-made bumpers with blue covers
Multiple dock lines and chafe guards
3 anchor snubbers
One 50ft 50 amp power cable
One 60ft 30 amp power cable
One 40ft 30 amp power cable
One adapter, 50 amp to 30 amp
Maintenance Equipment
One universal adjustable pole with a boat hook
Three fixed boat hooks
Two brush heads and curve ends
Two 50ft water hoses
(engine) batteries.
New Trinidad bottom paint 2025
Top sides buffed and polished 2025
12” B&G Vulcan chart plotter
B&G 4G Radar
Icom M802 SSB Radio
Iridium GO Sat Phone
YB Tracker
B&G AIS
Spectra Catalina 360R water maker
Bamar asymmetrical top-down furlerwith Selden carbon fiber bowsprit
new halyards, sheets, and dock lines
All the dodger and Bimini canvas and the cover for the mainsail - Thurston Canvas Shop.
The wheel leather has just been rewrapped
Quantum replaced V-berth cushions with Tempur-Pedic type foam
15 HP Mercury dinghy outboard
RIB Zodiac Inflatable
Quantum Mainsail2023
Starlink satellite internet
Solar Panels
Magma Infrared Gourmet BBQ grill
JonBouy MOB Recovery Module
New Dorades
ATN storm sail
Fiorentino storm drogue
Para-Tech parachute sea anchor
3 aires inflatable fenders
Water pump
Transom shower
Power cord
Foot windlass switches
Stern rail mount
Transom pad
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
Listing MLS by Yachtr.com
