Type: Full displacement motor yacht
Flag: Cayman Islands
L.O.A: 36.6m 120’1”
Beam: 7.9m 25’9”
Draft: 2.3m 7’5”
Tonnage: 299 GRT
Displacement (full load): 260T
Net Tonnage: 89T
Year: 2009
Builder: Benetti, Italy
Naval Architect: Benetti SpA
Exterior Designer: Stefano Righini
Interior Designer: François Zuretti
Construction: GRP, Teak laid decks
Classification: ABS + A1, MCA
Crew: 7
Guests: 12
Max Speed: 15.8 knots
Cruising Speed: 13 knots
Range: 3,300nm at 11 knots
Total: 12 guests in 5 cabins

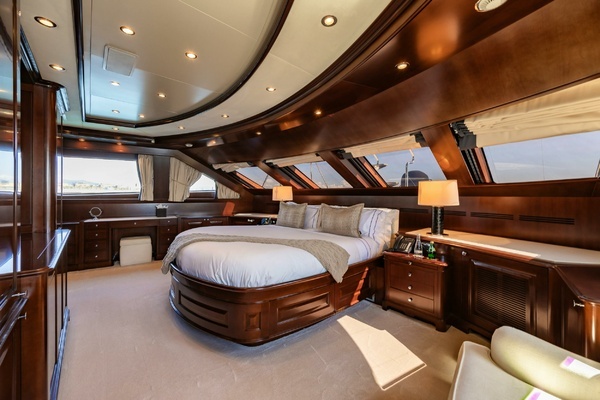

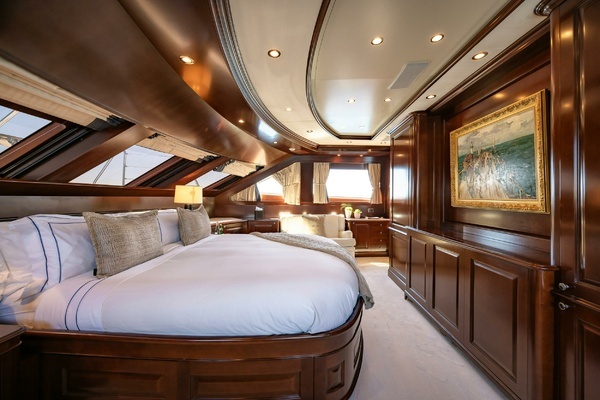

Master Cabin: Main deck, full beam, with ensuite

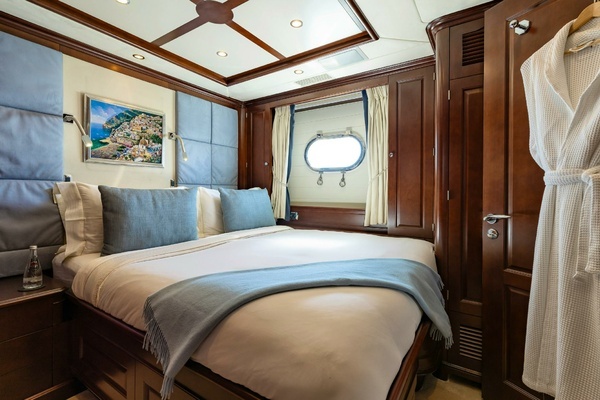

Double Cabins: 2 x double cabins, with ensuite

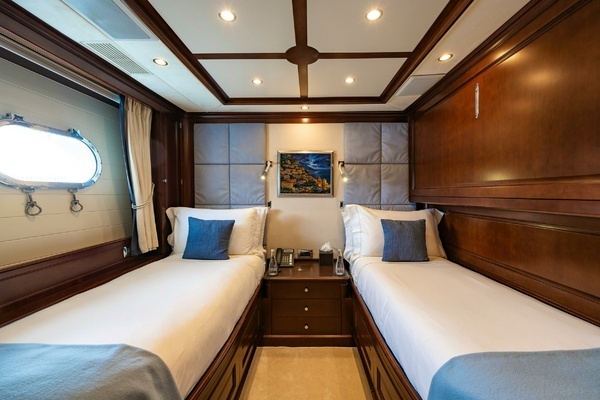

Twin Cabins: 2 x twin cabins with ensuite & Pullman beds
Crew: 4 x crew cabins sleeping up to 8 crew

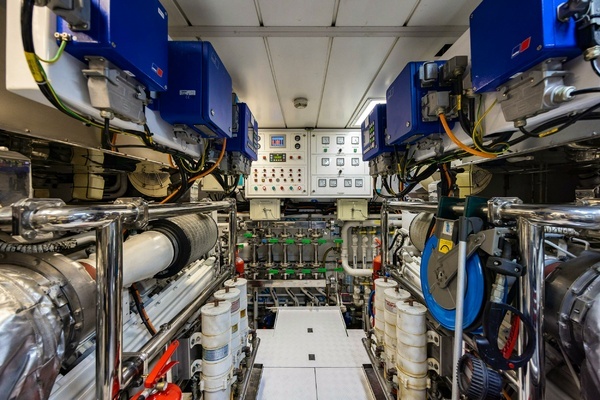

Main Engines: 2 x 1,550hp MTU 12V 2000 M91
Port Hours: 6,450
Starboard Hours: 6,450
Gearboxes: ZF Marine transmission, ZF3351
Shafts: BSC, 120mm AISI 316
Propellers: Detra, 5 Blad
100% 2390RPM – 2 x 294L/H 15.8 knots
80% 2150RPM – 2 x 200L/H 15knots
60% 2000RPM – 2 x 150L/H 14.5knots
50% 1850RPM – 2 x 120L/H 13.8knots
40% 1500RPM – 2 x 63L/H 12.3knots
35% 1350RPM – 2 x 45L/H 11.2knots
1850 RPM – 2nd stage Turbo On
1650 RPM– 2nd Stage Turbo Off
Generators: 2 x Kohler 80 Kw @ 50 Hz
Port Generator Hours: 16,500 (rebuilt at 11,500)
Starboard Generator Hours: 16,500 (rebuilt at 11,500)
Electrical system: 220VAC 50 hz
Shore power: 220VAC 50hz (2 x transformers) 3 Phase, 125 Amp
Batteries: Gel
Fuel: 44,000 litres (11,623 US gallons)
Water: 8,200 litres (2170 US gallons)
Water maker: Idromar NCS8 300 litres/hour (reverse osmosis equipped with sand filters)
Clean Lub Oil: 600 litres (159 US gallons)
Dirty Oil: 600 litres (159 US gallons)
Grey Water: 1,800 litres (475 US gallons)
Black Water: 2,700 litres (716 US gallons)
Steering: 2x BCS 8.6ltr Pressure 78bar
Bow thruster: Naiad Marine - 20 LHT proportional thruster
Stabilizers: Naiad Marine – 525 Zero Speed
Fuel Filters: Racors for main engines and generators
Fuel Oil Separator: Alfa Laval – MIB 303
Bilge Pump: Gianneschi 380VAC – 50hz
Fire Pump: Gianneschi 380VAC – 50hz, interchangable with bilge pump
Emergency Fire Pump: Gianneschi
Boiler: 2x Gianneschi 150l with the 2 x 3kW elements in each boiler
Sewage treatment: Hamman unit plant treatment
WC's: Jets vacuum system
Airconditioning: Condaria – 6x compressors 432,000 BTU
Ventilation: 5 x fresh air units, 22 x air handler units
EPIRB
SART
3 x 10-person Zodiac inflatable liferafts (new 2023)
2 x 12-person Zodiac inflatable liferafts (new 2023)
21 x adult immersion suits
24 x adult inflatable lifejackets
5 x child’s lifejackets
MCA Cat. C Medical kit plus large supply for day-to-day use
2 x fireman outfits including two breathing apparatus + 4 spare bottles
5 x 5 kg CO2 extinguishers
15 x 6 kg powder extinguishers
10 x 2 kg powder extinguishers
2 x 9 lt foam extinguishers
Engine room fixed firefighting 3 x 30 kg CO2, cable release
Galley fixed firefighting 1 x 10 kg CO2 , cable release
3 x Exterior security cameras
1 x Engine room security camera
Heat and smoke sensors in 3 loops
Autonica automatic fire detection and alarm system
Petrol fume detection in tender garage
Sat Phone: Seatel Turo LMXP 100 cm
Satcom: VSAT Sailor TT 7676A high speed internet
Cellular System: Telular 1C02A16
VHF: 2x Sailor TR5022 DSC
Watchkeeper: Net-Logic WKAIUA
Receiver exchange: Panasonic KX-TDA30
UHF Communications: 8 x hand-held UHF radios
Magnetic Compass: Sperry Marine, type 4863-1000
Gyro Compass: Navigat Mk2
Autopilot: Sperry Marine, Naviplot V HSC
Log: Furuno RD30
Echo Sounder: Furuno RD30 & Furuno Navinet PSU-005
Radar: Furuno Navinet PSU-005 with 19” colour Hatteland monitors
Radar: Furuno Far X Band

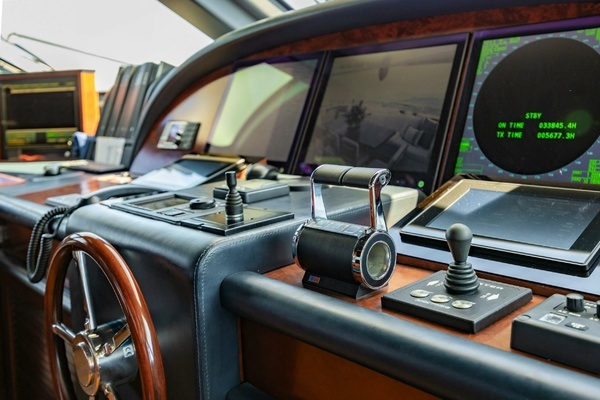

Chart Plotter: Transas Navi Sailor Pro 4000 ECS with 19” Hatteland monitors
GPS: Furuno GP32 & GPS incorporated in chart plotter
Navtex: Furuno NX-700
Wind Instruments: Furuno GP32
AIS: Furuno FA-50 Incorporated in Transas plotter

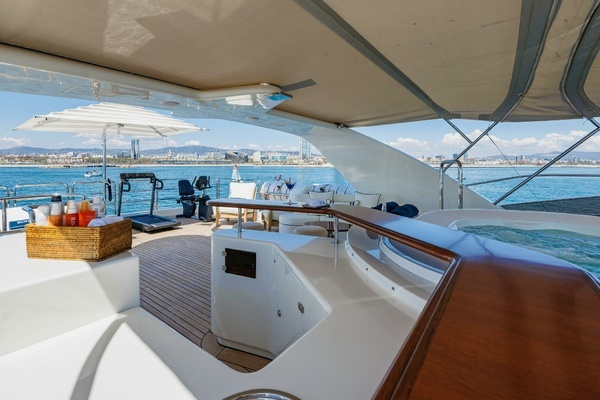

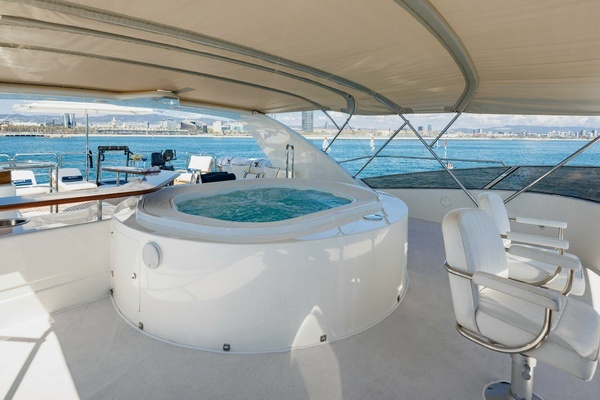

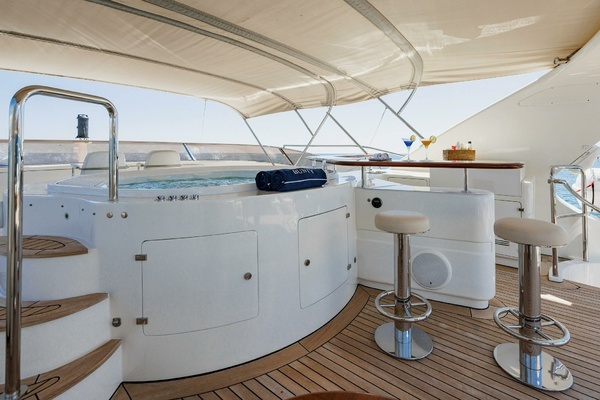

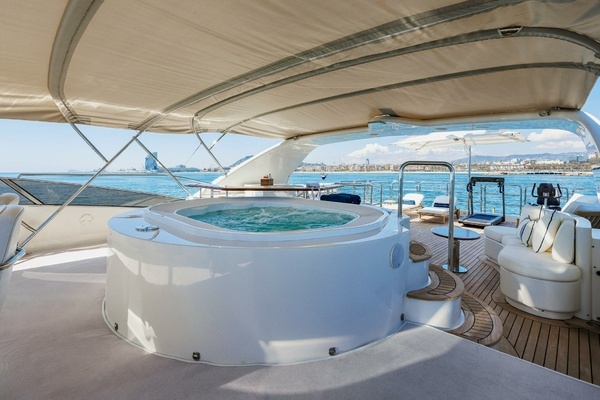

Jacuzzi: Model 4 SP3P/3R, 6 person
Anchor Windlass: 2 x Rossi Motoriduttori
Aft Capstans: 2 x Rossi Motoriduttori
Anchors: 2 x 225kg each
Anchor Chains: 2 x 5 shackles, 19mm stud-link
Boat Crane: 1 x Bensenzoni sundeck rescue boat crane, manual 600kg
Passerrelle: Pincraft Gemini Plus
Swim Ladder: Motomar hydraulic unit
Swim platform: Pincraft hydraulic unit
Searchlight: 1 x Searchlight on foremast
Sundeck Awning: 1 x custom bimini
Bridge Deck Awning: 2 x side awnings
Main Deck Awing: 3 x privacy awnings
Wifi throughout
All guest cabins and salons have iPads to control AV and lighting

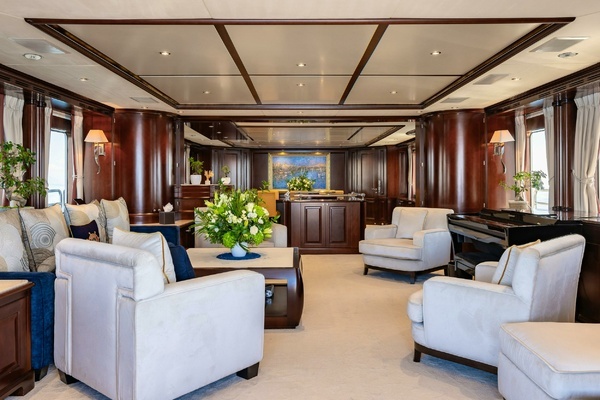

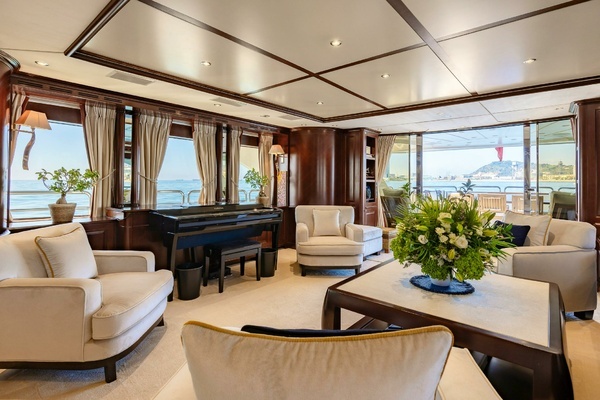

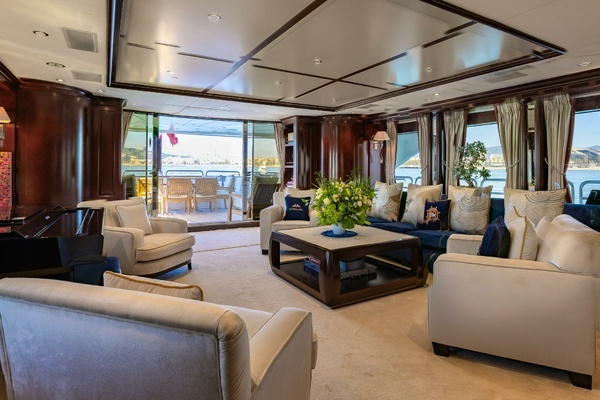

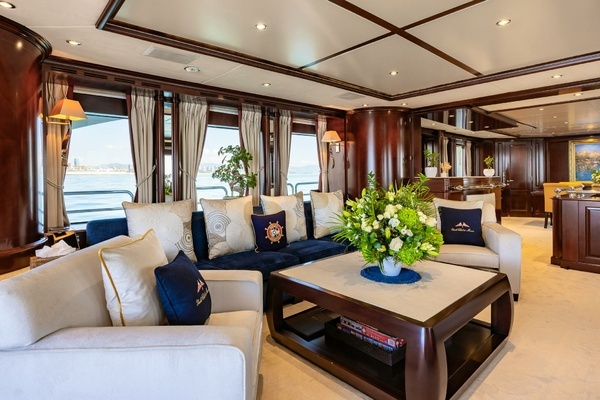

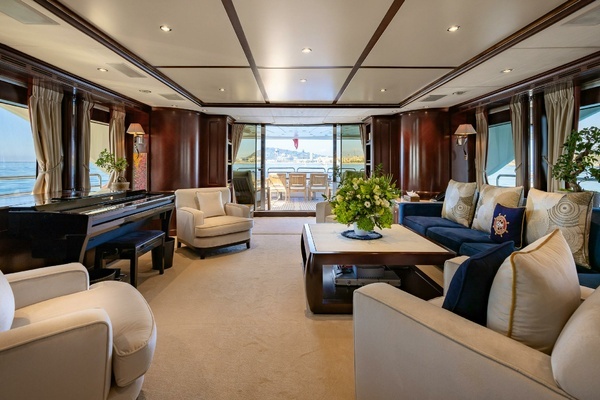

Main Salon - Denon surround sound, Sky TV, Apple TV, DVD, 42” HD TV

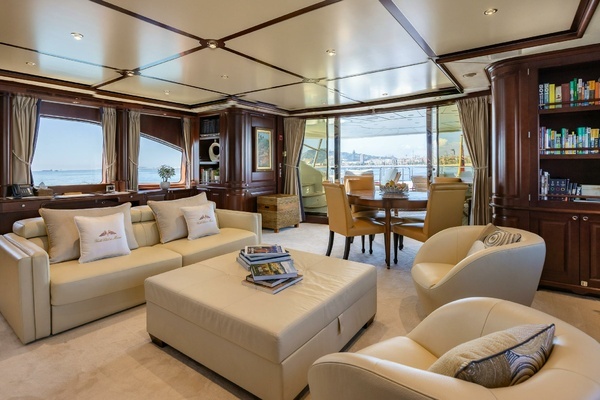

Skylounge - Denon surround sound, Sky TV, Apple TV, DVD, 42” HD TV

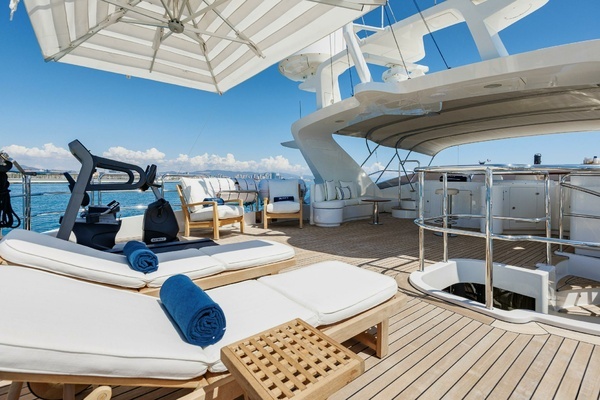

Sundeck - Fusion stereo, 6x Promar speakers, Apple Airplay
Owner’s Cabin - Denon surround sound, Apple TV, DVD, 42” HD TV
Guest Cabins - Yamaha stereo/DVD, 20” HD TV
Captain’s Cabin - Yamaha stereo, Navigation display, Sky TV
Crew Cabins - Yamaha stereo
Crew Mess - Denon surround sound, Samsung, DVD, Sky TV, 20” HD TV

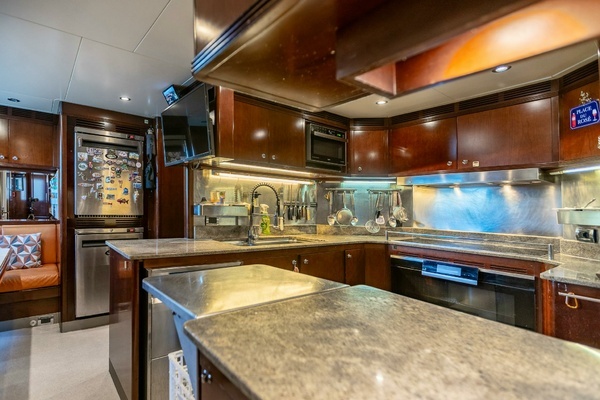

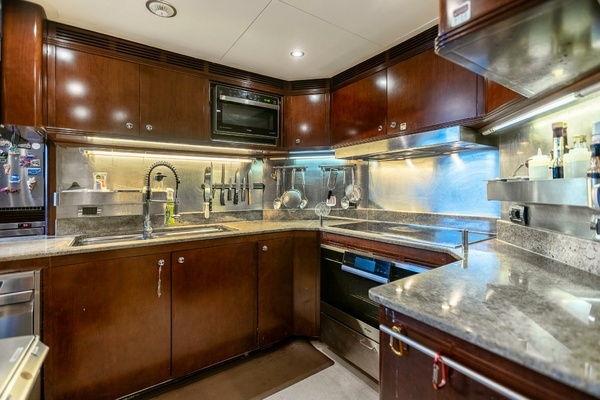

1 x Whirlpool microwave
6 x Miele induction plates
1 x Electrolux dishwasher
1 x Miele 90cm oven
2 x Fridges, Foster
4 x Fridges, Frigoboat Marine
2 x Freezers, Frigoboat Marine
1 x Cuisinart toaster
1 x Phillips kettle
2 x Miele washing machines
2 x Miele dryers
1 x Rowenta steam iron
2 x Wine Fridges
1 x Miele dishwasher
1 x Small drinks fridge
1 x ULine ice maker
1 x Russell Hobbs kettle
1 x Phillips blender
1 x Krupps coffee machine
1 x Sundeck ULine ice maker
1 x Bridge deck IndelB small drinks fridge
Tender & Toys
5.2m Castoldi Jet Tender
2 x Yamaha Jetskis (new 2020)
Waterskis (adults and children sets)
2017
MTU service, engineering works
New interior linen & crockery towels
Winter 2017/18 Lusben shipyard
Replace Bridge and Master delaminated windows (ABS survey)
Propellors and shafts removed, Laser alignment and boring adjustment (ABS survey)
Pre 5-year survey works, overboard valve replacement, tank inspections and painting. Stabiliser major service.
Hamman treatment overhaul, HVAC chiller and pumps overhaul.
Jet pumps and fire/ bilge pumps overhaul.
Annual shipyard works plus anchor galvanising, teak repairs, garage tender recovery system overhauled.
Hull and super structure gel coat sand, polish and Ceramic coating applied.
Awl grip paint stern area.
Mast and seating on Jacuzzi deck repaint.
Garage floor repaint.
Varnish application capping rails
Upgrade VSAT and TVRO system and replace SAT Domes and Control system.
Replace both saloon TV and SAT boxes, AV controller upgrade
New radar Furuno X band radar
New wing station and bridge screens
Upgrade sundeck bimini to full size frame and new canopy
New helm seats and carpet on jacuzzi deck
Install spotlights, BBQ and gas detector alarm.
New crew carpet
New galley and crew roof panels
Galley hob, oven, dishwasher, fridge and freezer doors replaced and overhauled compressors.
Upgrade installation of new under bridge a/c compressor cooling system
Replace platform teak and various steps and border planks upper deck
Cayman flag commercial survey with annual safety servicing.
Winter 2018/19
ABS 5-year survey and shipyard works including testing and replacing overboard valves, tank inspections and repaint freshwater tank, machinery
Hull inspection as required
Load line survey including light weight inclination test and new stability book with marine surveyor and class
MTU service, borescope inspection, oil samples tested and 4 x Turbo overhauls.
Gearbox internal inspections and oil samples test.
Heat exchanger overhaul.
Coolant pump overhaul.
Generator Kohler 80kw complete engine overhauls at 11,500 hrs
Upgrade WIFI routers and Kerio security, Pepwave external aerials
All exterior seating and sunbeds upholstery recovered
Main Saloon sofa and seating upholstery recovered
Leather dining chairs recovered
Saloon table veneer replaced
Fire retardant applied to saft furnishings (Flag)
Cayman flag commercial survey with annual safety servicing.
Winter 2019/20
Battery replacement - all service batteries & emergency batteries
MTU replace wing station controller, engine control screen, starter motor, coolant pump plus annual service
2 x New jet skis Yamaha ex deluxe
New exercise bike
Winter 2020/21
MTU QL3 replace injection pumps and injectors, valve service, overhaul 4 x turbos, replace coolant pumps and remove sump fix oil leaks
New starter motors (5169 hours)
Replace water softerner and UV lamps and water pumps control
3m Polish Hull and super structure, UV polish
Varnish application capping rails
Full replacement of medical kits and defibrillator.
Fire retardant application of soft furnishings for Flag
Flag and class Annual commercial surveys and safety equipment service
Bridge touch screen LCDs upgraded, new GPS multi-function displays and depth sounder and two Hatteland screens replaced.
Winter 2021/22
Annual haul out and maintenance
Exterior tables repainted
Ceramic coat stern hull areas to prevent black soot marks
Varnish application capping rails
Flag and class Annual commercial surveys and safety equipment service
Fire retardant application of soft furnishings for Flag.
Galley extraction ducting professional cleaned
Winter 2022/23
Annual haul out and ABS shaft survey, replacement shaft seals / bushes.
Completed before 5 year ABS survey due 2024
Respray Boot top line in Royal Blue
Anchor winch motors replaced with new units
Jet pumps overhauled
Hamman sewage treatment overhauled, new dosing pump, sea water pump
Jacuzzi complete overhaul, new pumps and heaters
Ventilation cleaning by specialist company of interior ducting
Water maker complete overhaul, new membranes and sand filter, pumps overhauled
Miele washing machines and dryers overhauled by service agent
Bimini canopy replaced in white, jacuzzi deck carpet replaced
New Techno gym running machine
Castoldi tender Volvo D3 engine complete overhaul
Interior carpet completely renewed and galley vinyl
Flag and class Annual commercial surveys and safety equipment service
