2010 Beneteau Oceanis 43

sails and canvas

2010 Neil Pryde Mainsail - In-mast furling

2010 Neil Pryde Genoa - Roller Furling

Dodger

Bimini

Connector

Sunbrella cockpit cushions

manufacturer description and standard factory equipment

The Océanis 43 is an unequivocal invitation to delight in her design, comfort and performance. The hull and deck plan are the work of the Berret Racoupeau design office. Their designs have led to the creation of an aesthetically powerful and attractive yacht with remarkable sea keeping qualities. The interior architecture and design are by Nauta Design. This great Italian name, a benchmark in the super yacht world, has helped the Océanis 43 achieve her true personality, one of contemporary lines where luminosity, comfort and wellbeing take precedence on board.

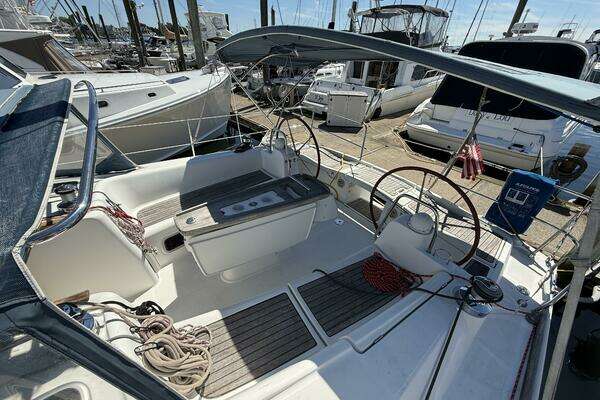

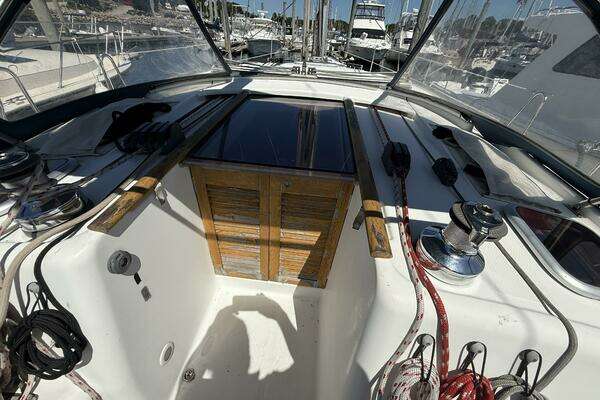

COCKPIT

• Cockpit bottom self bailing
• 2 Cockpit locker
• 1 Lockers under tiller seating To starboard
• 1 Wet locker between tiller seats
• 1 Gas locker with room for 2 bottles under port tiller seat
• Cockpit benches decked in natural solid wood

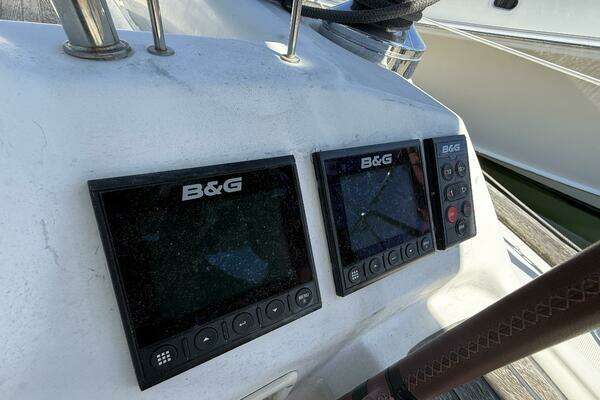

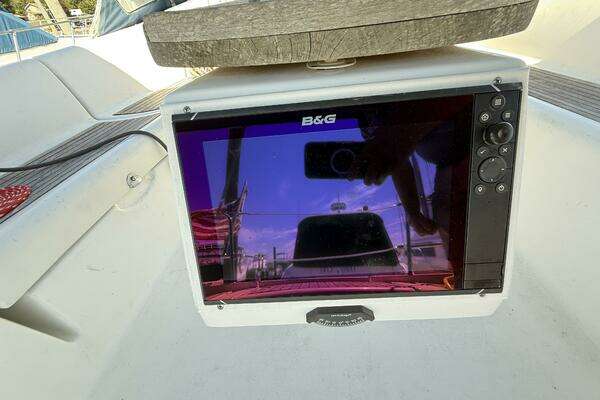

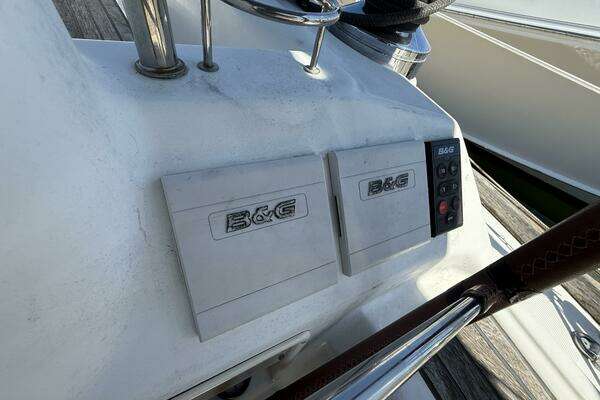

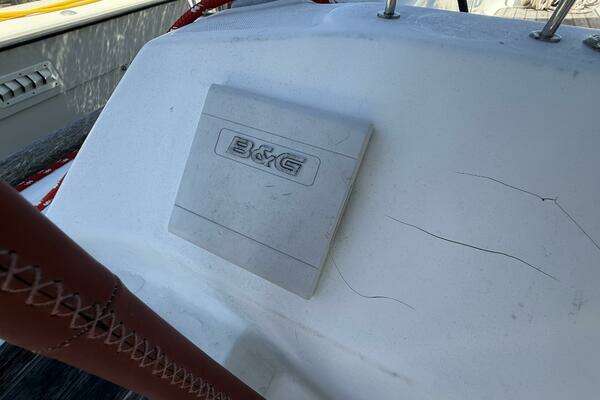

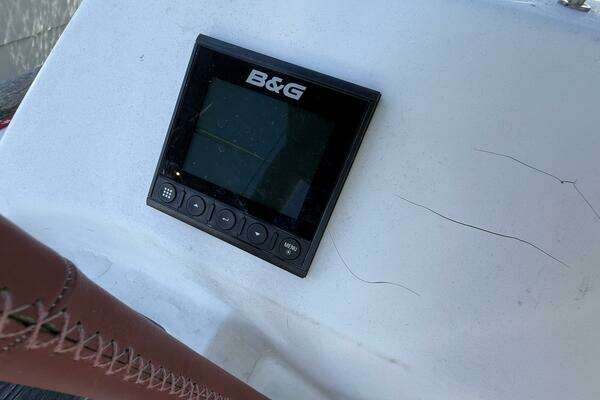

• 2 Steering wheel consoles: Stainless steel steering wheels - 900 mm diameter - leather covered - rudder systems on partition - metal cable transmission system - Stainless steel guard rail - navigation instrument stand (optional instruments)
• 1 Deck hole for access to tiller system
• 1 Emergency tiller
• 2 Steering compass on binaccle
• Engine control and control panel to starboard

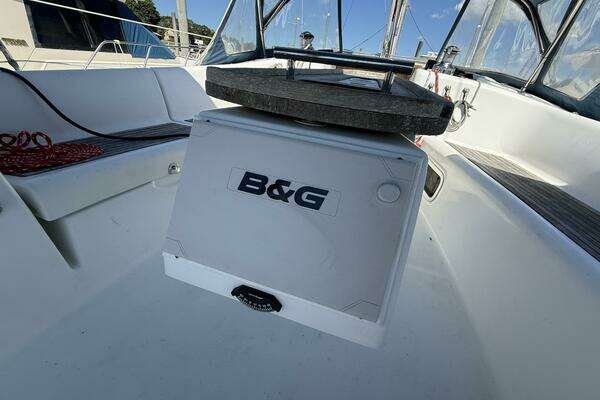

• Polyester cockpit table - 2 flaps - glove boxes - central bottle holder - bottle holder on reverse side - Stainless steel guard rail - 12 V socket - lamp with shade
• 2 Companionway door on solid wood hinges - Sliding hatch made of PMMA

FITTINGS

• Alpi woodwork in fruit tree colour
• Parquet type laminated floors
• Cloth hull spar ceilings in saloon and cabins

COMPANIONWAY

• Height to deck beam: 2.03 m
• Wooden saloon companionway with moulded wood hanging steps with non-slip surface
• 2 Stainless steel guardrails

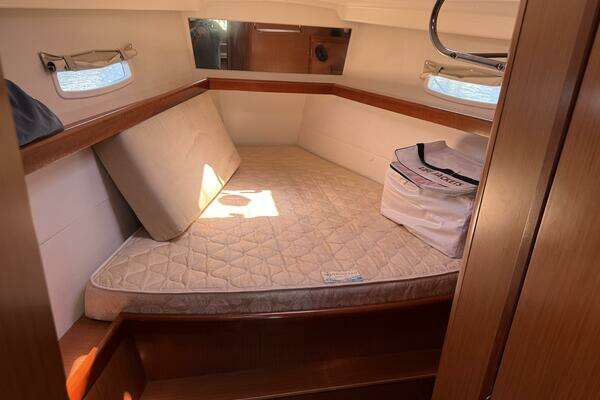

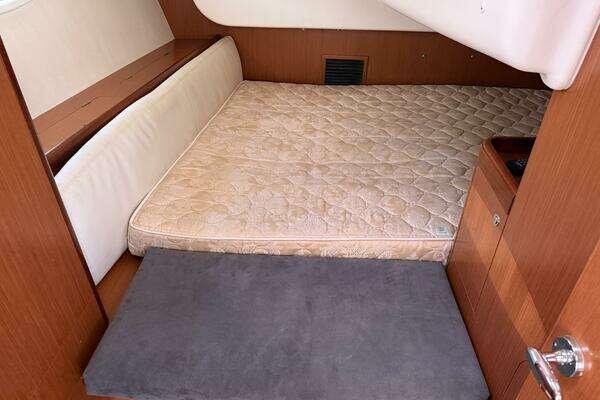

FORWARD CABIN

• Height to deck beam: 1.95 m

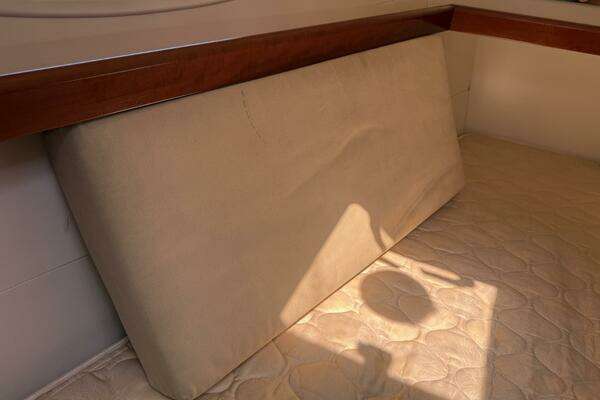

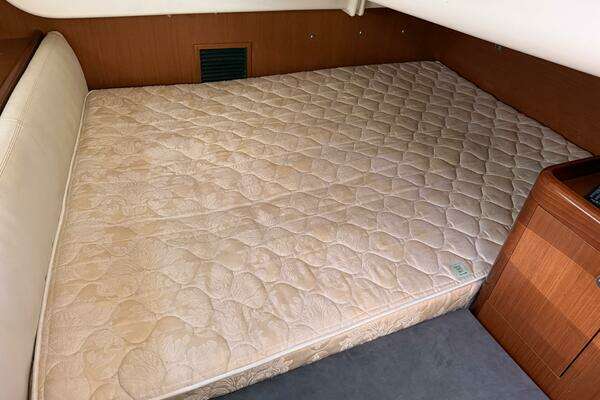

• Central double bed (2.10 m x 0.60 m x 1.93 m) - Marine mattress
• 1 Portside seating
• Hanging locker - Cupboard - glove boxes - Cubby hole lockers - Storage drawer
• 2 Opening hatches with blind / Mosquito net
• 2 Hull portholes with curtain

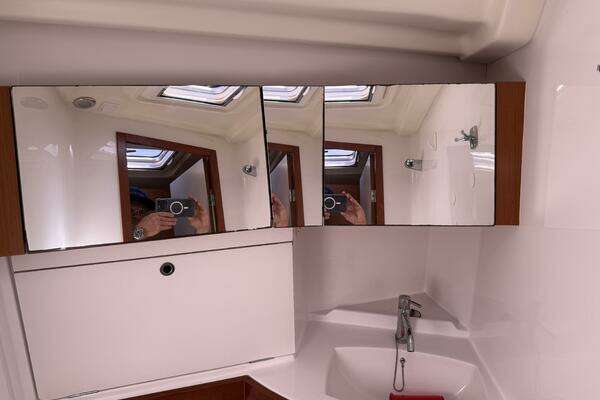

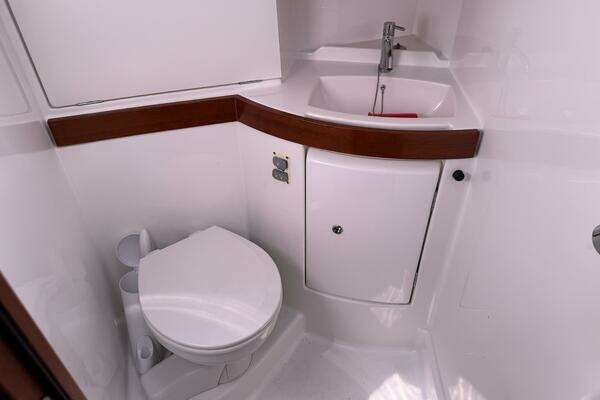

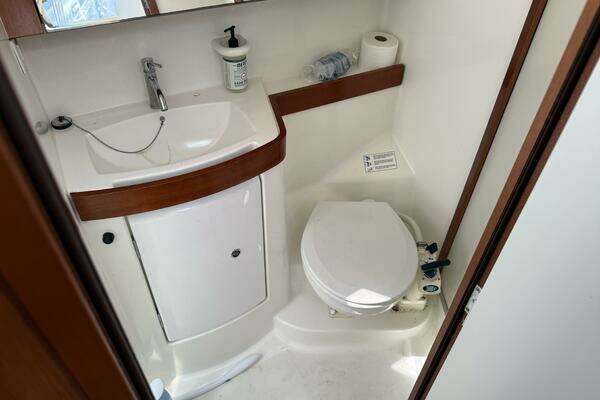

FORE WASHROOM

• Height to deck beam: 1.95 m
• Access through foward cabin
• Washroom moulded in one piece to be watertight

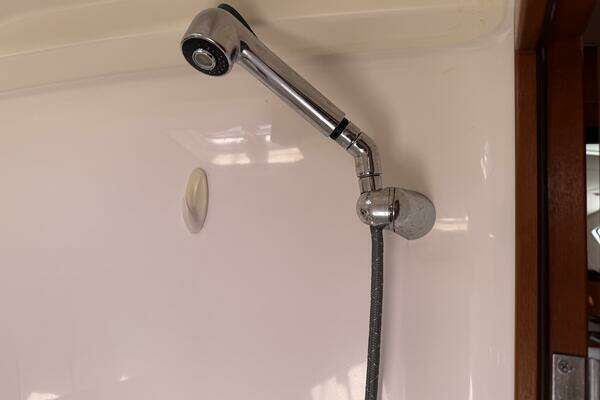

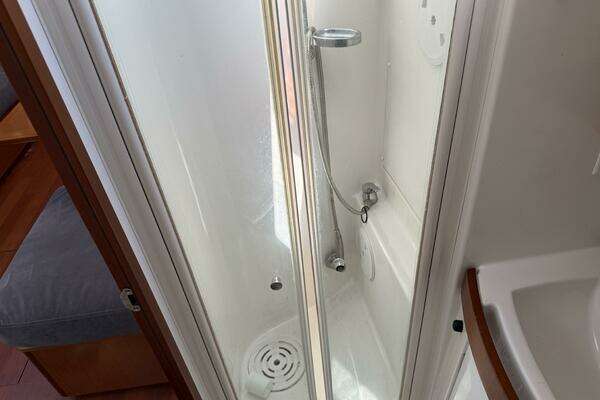

• Separate shower - shower mixer tap hot / cold water
• Manual marine toilet

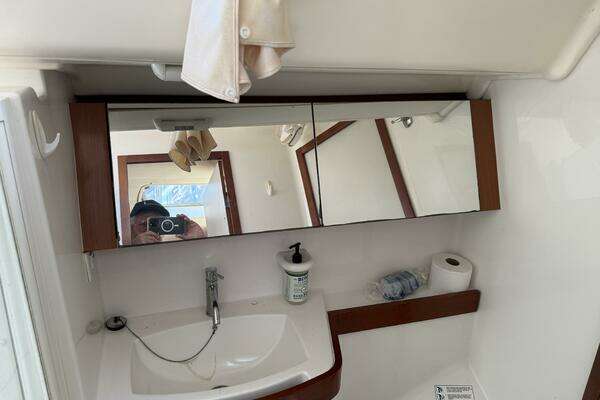

• Washbasin - Mixing tap hot water / cold water
• 1 Mirror
• Toilet accessories: Glass holder - soap tray - towel rail - Rubbish bin - Paper dispenser
• Cupboards and cubbyholes
• 1 Opening deck hatch with shutter / Mosquito net

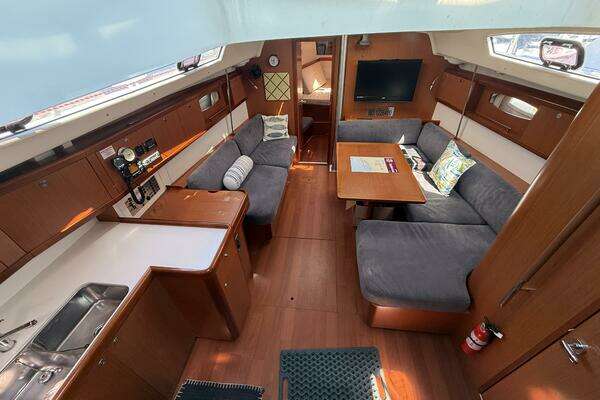

SALOON

• Height to deck beam: 2.00 m

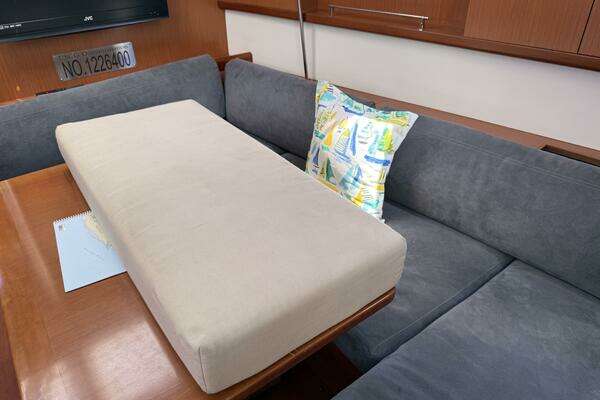

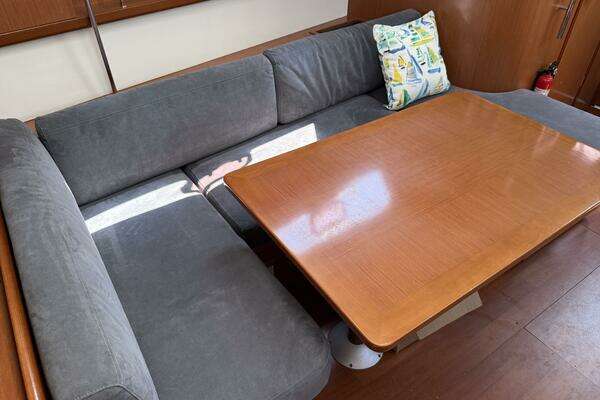

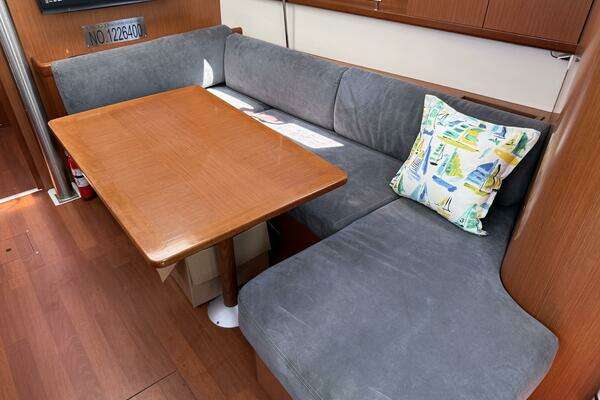

• U shaped saloon bench - double density foam
• Saloon table in only 1 piece - Varnished wood top with inlay - Aluminium legs

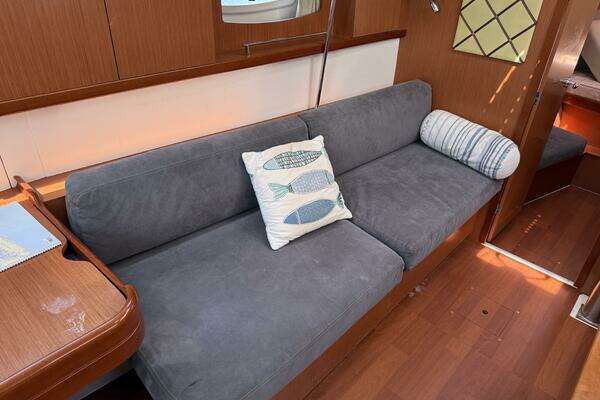

• 2 seater bench to port
• 4 Matching decorative cushions
• 1 Stainless steel handrail on aft washroom partition
• Cupboards - Cubby hole lockers and storage along the hull - Storage under bench seats
• Cubbyhole with stainless steel beading
• 2 Panoramic deck house windows with concertina blinds
• 2 Hull portholes with curtain
• 2 fixed deckhouse side windows with pleated blinds
• 2 Opening portholes on coaming in side windows

1 Opening deck hatch with shutter / Mosquito net

ELECTRIC

• 12 V circuit - 220 V circuit
• 1 service batteries (140 Ah) - 1 Battery for engine (110 Ah)
• 1 Battery charger 25 Ah - 1 Shore power socket 220V - 1 Charge divider

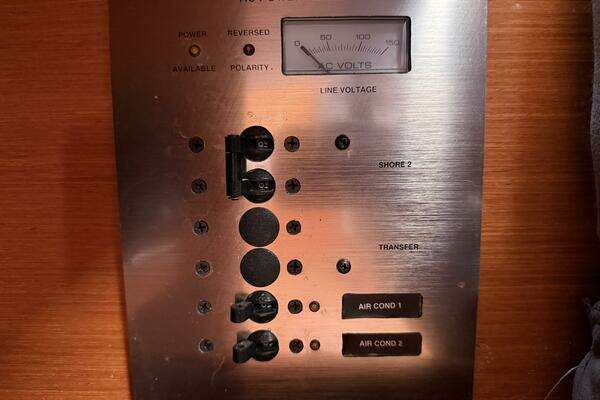

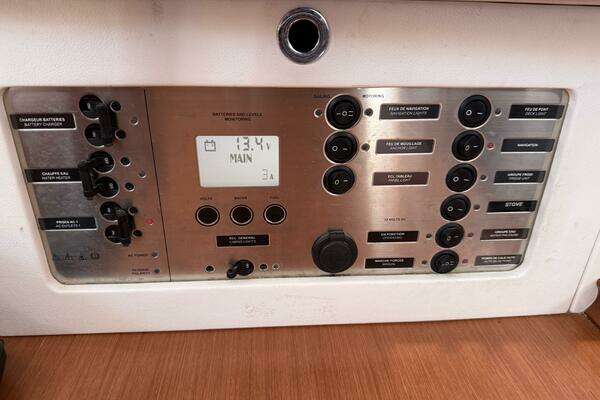

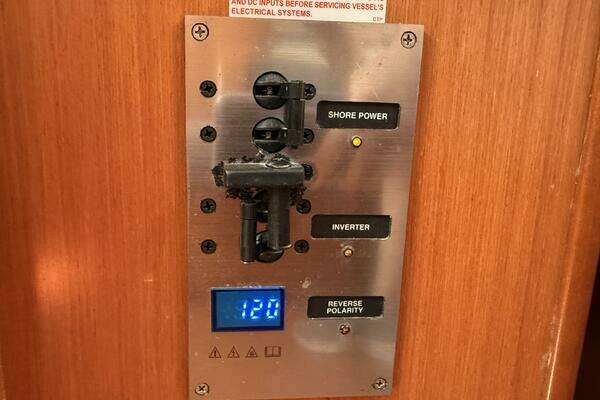

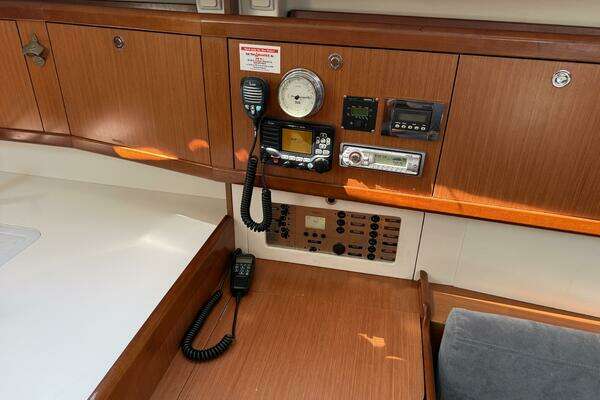

• Electrical panel (12 V / 220 V) (Circuit breakers - Voltmeter - Water gauge - Fuel gauge - Battery warning - Fuel warning - Water warning)
• 1 Socket(s)12 V - 5 Socket(s)220 V
• Lighting: Halogen ceiling lights - Reading lights - White/red light fitting - Fluorescent lamp White
• Navigation lights: 1 navigation light(s)fore and aft - 1 Engine navigation light / Crosstree light forward of mast - 1 Mooring light on masthead
• Wire runs for options cables

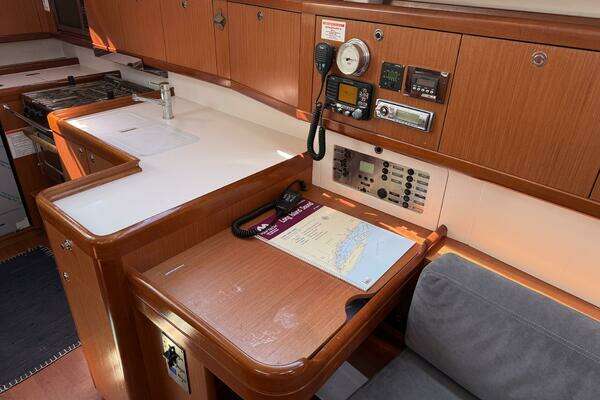

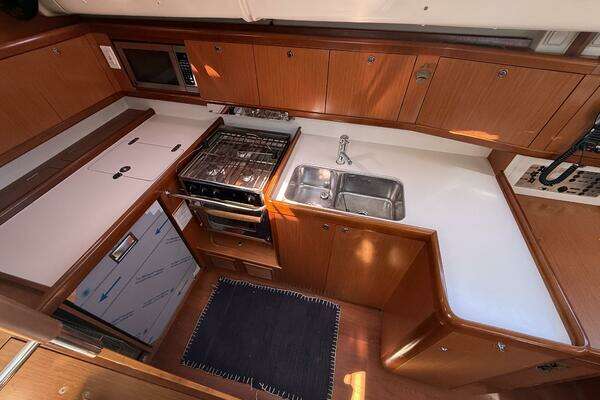

GALLEY

• Height to deck beam: 2.00 m
• U-shaped kitchen
• White laminated worktop

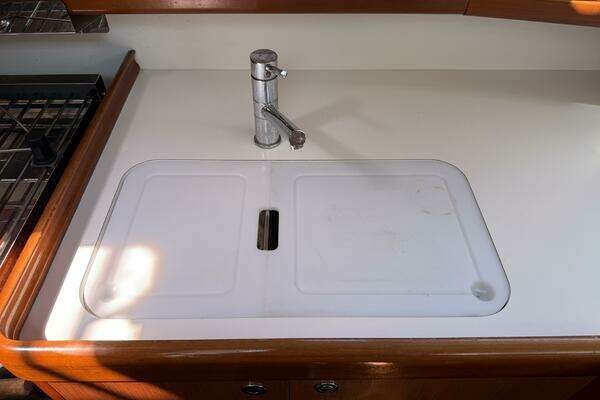

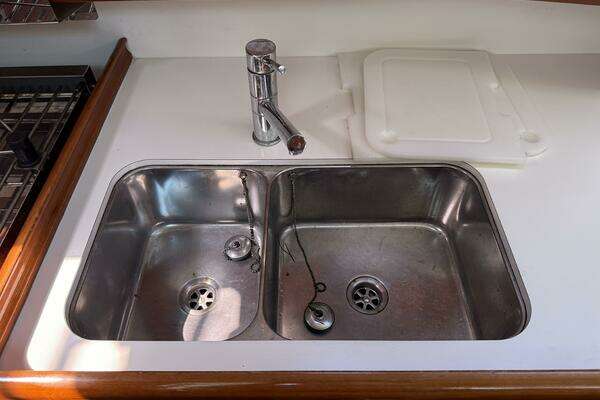

• 1 Stainless steel sink 2 rectangular basins - 1 Mixer tap cold water / hot under pressure

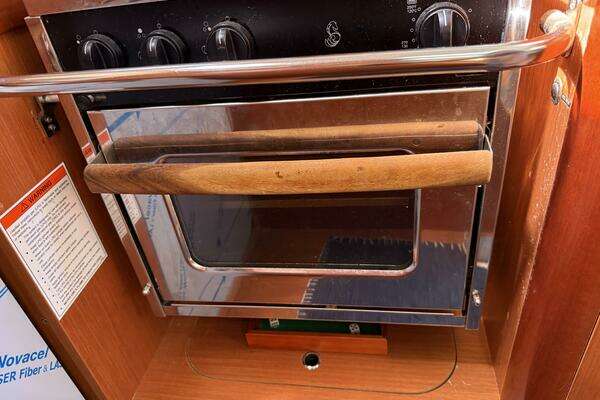

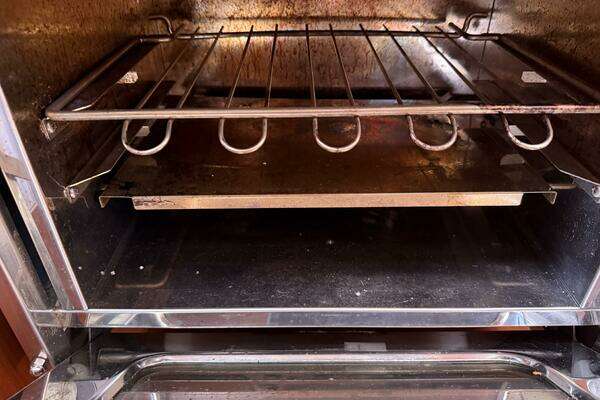

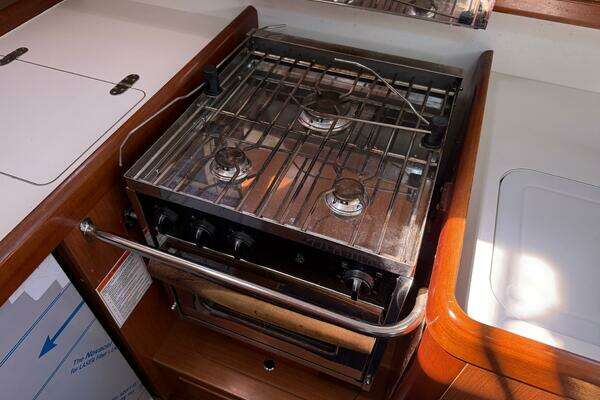

• 1 Gas cooker 2 hobs - Stainless steel oven on mountings - safety bar

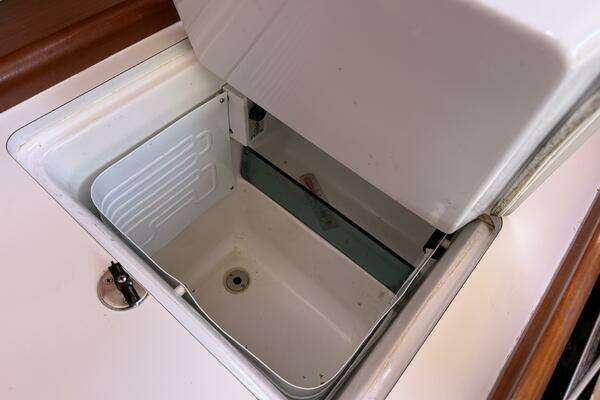

• 1 Ice box 70 litre, top opening Refrigeration unit 12 V

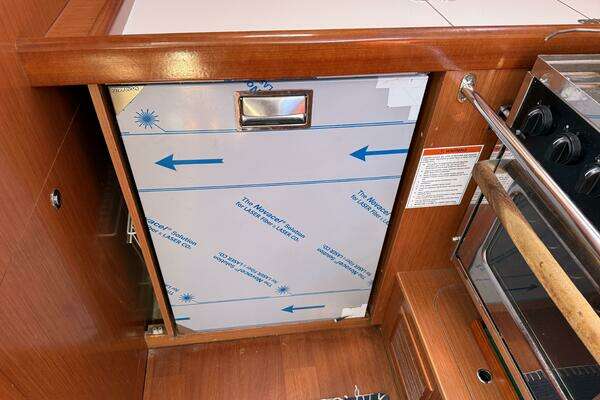

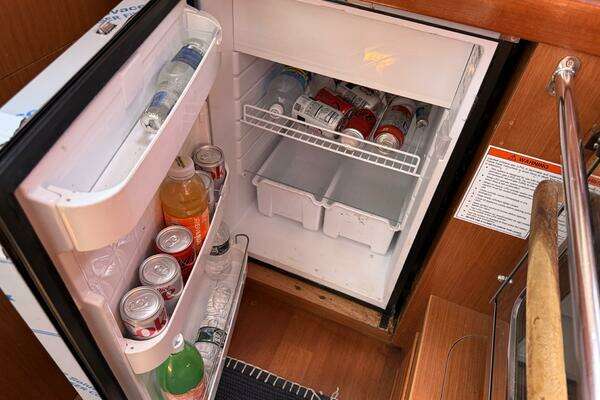

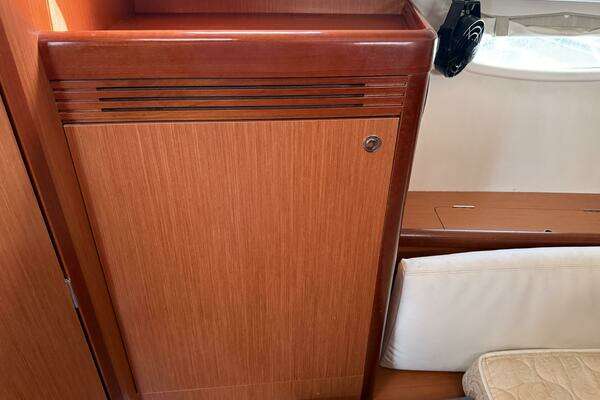

• 1 Refrigerator 130 litre front opening
• Fitted cupboards and closed cubbyholes (Shelf Rubbish bin - tea towel holder)

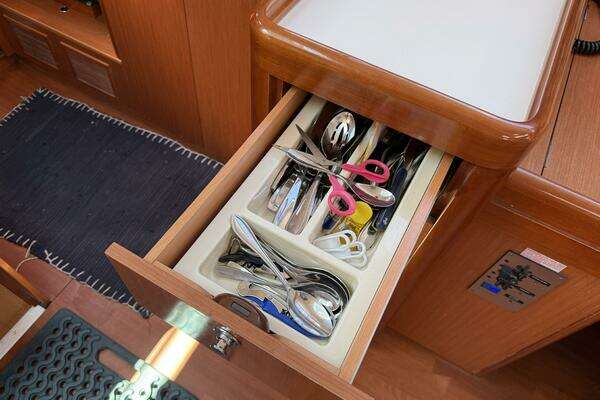

• 1 cutlery drawer
• 1 Porthole opening onto coamimg in side window
• 1 Porthole(s) opening onto coaming with curtain
• 1 Opening deck hatch with shutter / Mosquito net

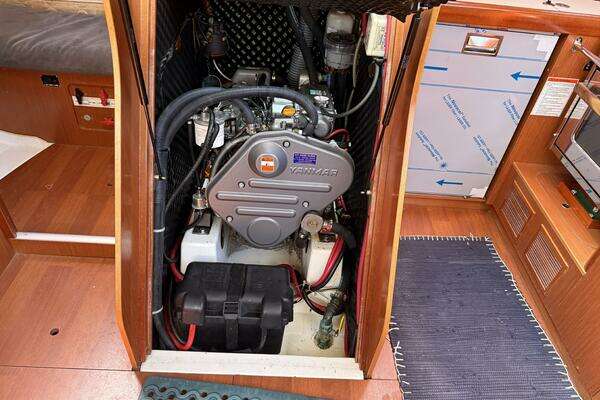

PROPULSION

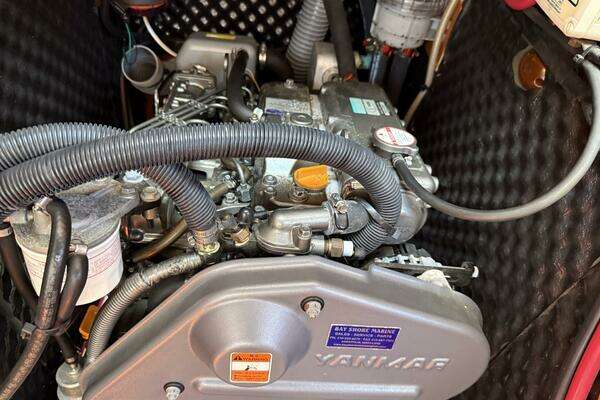

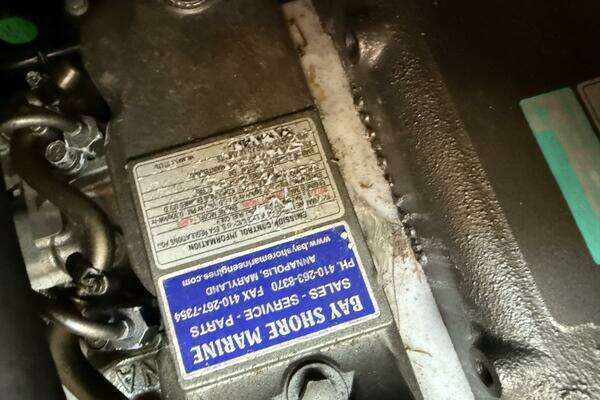

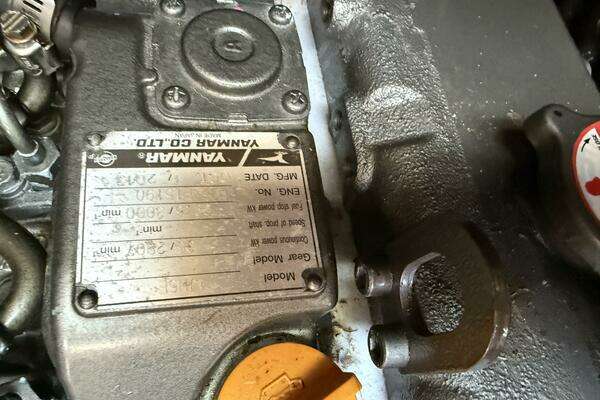

• Engine Yanmar Diesel 54 hp

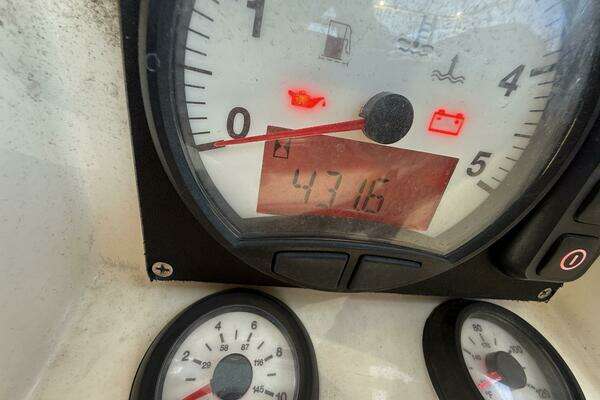

• Engine control - Control panel in cockpit
• Engine compartment: Foam soundproofing - Ventilation: 1 air intake and 1 pressured air outlet
• 1 Alternator 12 V / 80 Ah
• 1 Rotation moulded diesel tank 200 L (under starboard aft berth) - Electronic gauge - Low level alarm - 1 Deck filler
• Filters: Sea water - Diesel - Decanter
• Stainless steel shaft line - Polyester guard moulded into hull
• Fixed three blade propeller
• 1 Engine access through companionway (opening with 2 gas pistons) - 2 Engine access through aft cabins

CONCSTRUCTION

• Design made following European Directive requirements and according to CE certification
• Monolithic hull design in polyester
• Monolithic structural counter moulding laminated and stuck to hull

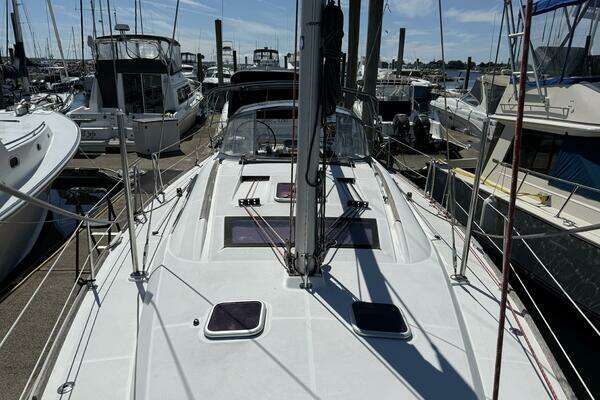

• Deck in balsa and glass fibre sandwich covered in «diamond point» type non-slip surface
• Deck hull join screwed, stuck and banded with 1 soild wood bulwark, screwed
• Cast iron keel fixed with bolts and stainless steel veneer and stuck
• Rudder hung with glass compound stock
• White coloured hull

RIGGING

• Standard mast 9/10 electro-polished aluminium installed on the deck, 2 level(s) of advanced cross trees
• Boom in anodised aluminium
• Standing rigging in single-strand stainless steel
• 2 Backstays with turnbuckles
• Rigid boom down-haul with tackle
• Genoa furling system with drum on the deck
• Mainsail sheet track
• 2 genoa sheet tracks with piston adjusted traveller cars - 2 Genoa sheet return blocks
• Rigging run back to cockpit (except boom topping lift)
• Complete running rigging: Main halyard, genoa halyard with clutch on mast and cleat, Boom topping lift with cleat on mast, Mainsail foot and sheet, 2 Genoa sheets 2 fast reefing ropes, 1 manual reef
• 8 sheet clutches
• 6 Bollards

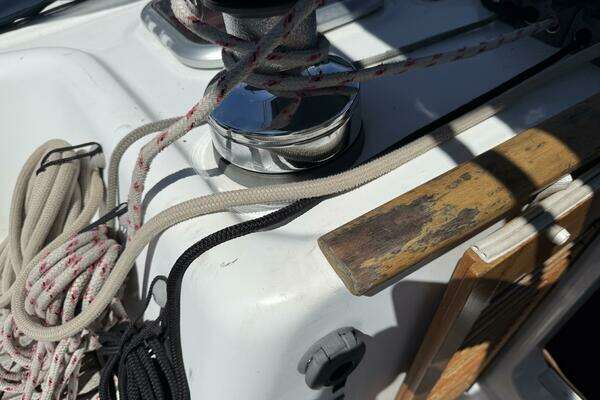

WINCHES

• 2 Self-tailing genoa sheet winches (H46.2 STC)
• 2 Self tailing rigging winches (H40.2 STC)
• 2 winch handle(s) aluminium
• 2 Winch handle boxes

SAILS

• Furling genoa with UV protective strip
• Semi full batten written sail with slider and roller slider
• Lazy Jack and Easy bag in Perle colour

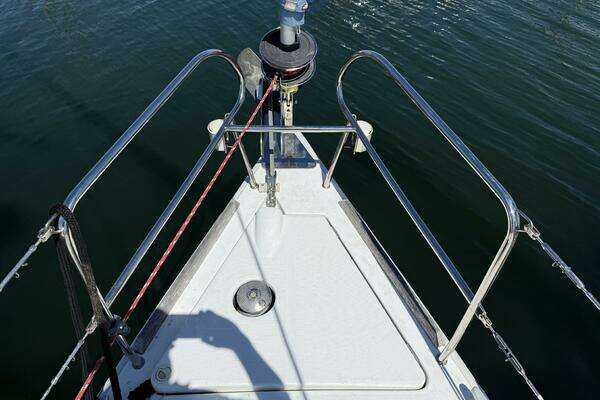

MOORING -ANCHORING

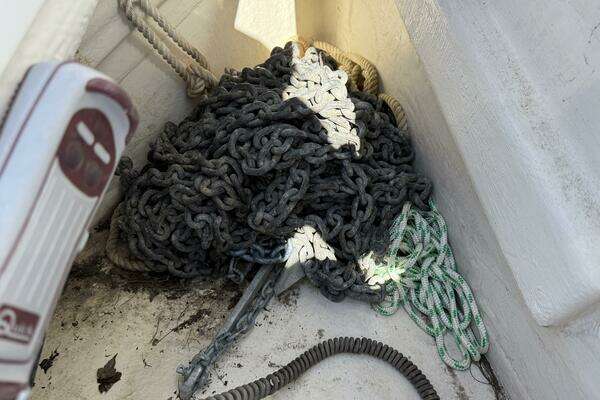

• Self-bailing chain locker - Clench bolt - Hatch cover
• Single roller stainless steel bow fitting with offset roller

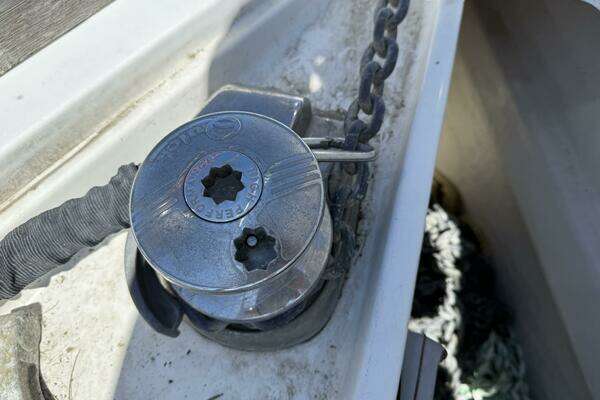

• Vertical electrical windlass12 V - 1000 W - Remote control
• 6 Aluminium mooring cleats - Stainless steel deck line protection
