2010 Icon

Palma, • $42,950,000

DESCRIPTION

LOON is a 221’ Icon Motoryacht with 6 decks and 7 staterooms and is considered the most famous and marketed charter yacht in the world.


Combining comfort and luxury, Studio Linse (Interior Designer) created the interior with a minimalistic and refined elegance. The subtle colors and elegant furnishings create a serene atmosphere for relaxed ocean living. While Redman Whiteley Dixon Design (Exterior Designer) perfected a true design masterpiece with incredible exterior comfort.


A few outstanding features are her main deck master with a private staircase up to her 180-degree view private lounge and/or office with a private exterior sunning area (this lounge and/or office could one day be easily transformed into a separate VIP stateroom similar to her sistership allowing for an 8-stateroom configuration).

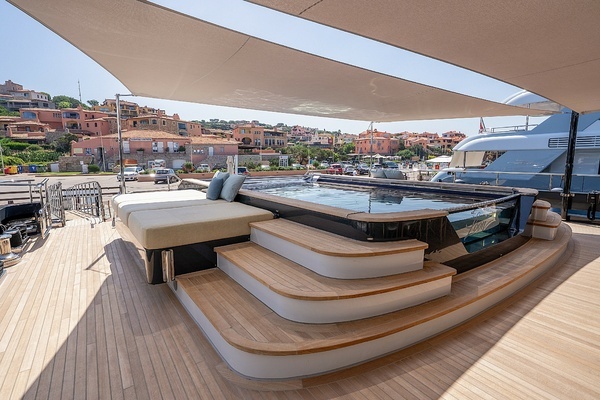

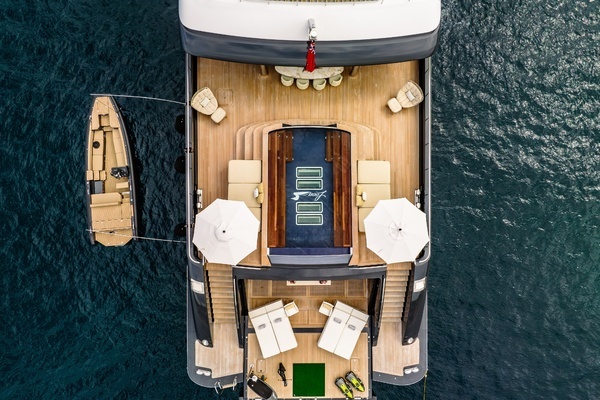

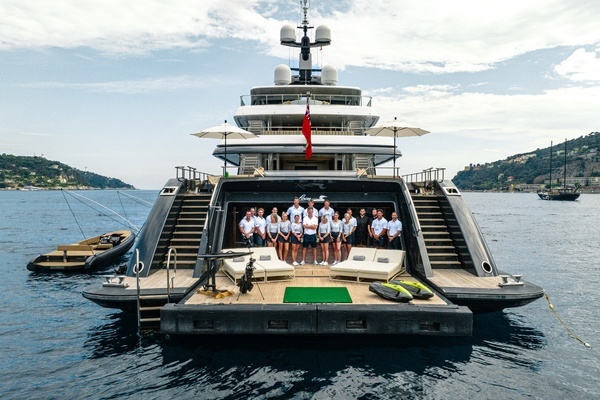

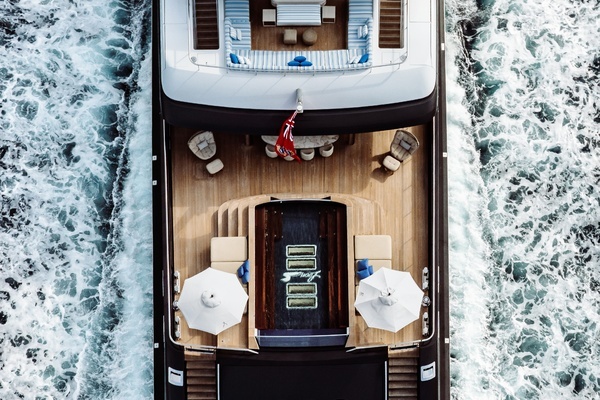

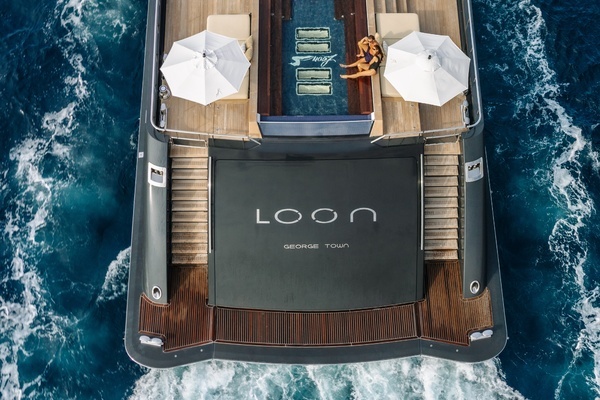

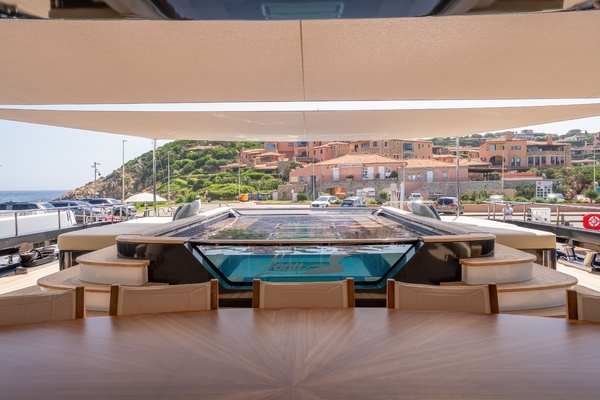

In 2014 the Icon factory extended her hull by 16.40’ (5m) allowing for the largest beach club ever seen on a vessel of this size; one of the coolest features only found on Icons is the private hallway between the beach club and the lower guest accommodations. In addition, this extension made for an aft deck playground including a 24.60’ x 11.48’ (7.5m x 3.5m) saltwater or freshwater pool surrounded by sunbeds. There is also an additional exterior sofa and dining area forward of the pool.


Forward of the Owner’s lounge and/or office is a large tender garage, which is one of the largest garages on similar size vessels! LOON’s garage fits 3 tenders, 3 jet skis and several toys. The garage’s location and size were incredibly thought out because it keeps the tenders off the decks, keeps them weather-protected, and allows for the massive beach club where a tender garage is usually located; this also allows for easier toy removal while stern in, and allows for guests’ immediate access to the water without waiting for the typical aft garage set up.


LOON’s spacious interior can accommodate up to 13 guests in 7 staterooms. The Owner’s master stateroom spans over two decks. There are 2 additional guest staterooms on the skylounge deck which is forward of the skylounge. On the starboard side there is a spacious VIP guest stateroom with a queen-size bed, and forward to the port is a smaller stateroom with a single berth, perfect for a child or nanny. There are 4 comparable sized staterooms on the lower deck, all with queen berths, 2 of these berths can easily convert to singles.


LOON was built for long-range cruising and boasts a range of 6,000 nautical miles at 12.5 knots. She is equipped with zero speed stabilization both at anchor and underway to ensure a comfortable voyage in all weather conditions.


Hull Material: Steel

Bulb: Steel

Superstructure Material: Aluminum

Deck Material: Teak, Grey Caulking

Paint: Awlcraft

Hull Configuration: Full Displacement Oceangoing Motoryacht

Number of Decks: (6) Decks


Crusader Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Merle Wood & Associates. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

SPECIFICATIONS

Basic Boat Info

  • Builder Icon

  • Category Superyacht

  • Type Power

  • Year 2010

  • HIN/IMO 1010246
  • Refit Year 2020
  • Condition Used
  • Maximum Speed 16 KN
  • Cruise Speed 12.5 KN
  • Fuel Type Diesel
  • Super Structure Material Aluminum
  • Hull Material Steel
  • MCA Certified Yes
  • Number of Engines 2

Dimensions

  • LOA 221' 5"
  • Beam 37' 4"
  • Max Draft 12' 5"
  • Dry Weight 0 LBS

Engines

  • Make MTU
  • Drive Type Direct
  • Engine Power 1849.34 KW
  • Model 12V-4000-M71
  • Fuel Diesel
  • Type Inboard
  • Engines 2

Tanks

  • Fuel Tank 42267 GAL
  • Fresh Water 7661 GAL
  • Holding Tank 1347 GAL

Other

  • Displacement 1,289 LBS
  • Cabins 7
  • Sleeps 13
  • Crew Cabins 9
  • Crew Sleeps 18
  • Gross Tonnage 1295
  • Classification Lloyd’s 100A1 SSC Yacht, Mono G6, LMC, UMS, LY2
  • Interior Designer Studio Linse (Holland)

ADDITIONAL INFO

LOON is a 221’ Icon motoryacht with 6 decks and 7 staterooms and is considered the most famous and marketed charter yacht in the world. Combining comfort and luxury, Studio Linse (Interior Designer) created the interior with a minimalistic and refined elegance.

FULL DETAILS

dimensions

General

  • Length Overall (L.O.A.): 221.46 feet (67.50 meters)
  • Length at Waterline (L.W.L.): 168.64 feet (51.40 meters)
  • Beam (molded): 37.40 feet (11.40 meters)
  • Draft (loaded): 12.47 feet ( 3.80 meters)
  • Tonnage: 1,295 gross

Capacities

  • Fuel Capacity: 52,185 US Gallons (197,543 liters)
  • Water Capacity: 7,661 US Gallons (29,000 liters)
  • Watermakers: 9,510 US Gallons (36,000 liters)
  • Lube Oil: 818 US Gallons (3,100 liters)
  • Waste Oil: 1,347 US Gallons (5,100 liters)

Decibel Noise Readings

  • Skylounge Deck Aft Lounge: Cruise Speed dB(a): 42 / Anchor dB(a): 40
  • Skylounge Deck Forward: Cruise Speed dB(a): 42 / Anchor dB(a): 40
  • Master Cabin: Cruise Speed dB(a): 41 / Anchor dB(a): 41
  • Master Bath: Cruise Speed dB(a): 42 / Anchor dB(a): 42
  • Main Saloon Forward: Cruise Speed dB(a): 47 / Anchor dB(a): 43
  • Main Saloon Aft: Cruise Speed dB(a): 53 / Anchor dB(a): 46

Sea Trial Fuel Burn (Per Engine)

Engine RPM1,250

  • SOG: 12 (knots)
  • Fuel Consumption:98L/p/h
  • Fuel Consumption:26 G/p/h

Engine RPM 1,450

  • SOG:13(knots)
  • Fuel Consumption:140L/p/h
  • Fuel Consumption:37G/p/h

Engine RPM 1,650

  • SOG:14.3(knots)
  • Fuel Consumption:247L/p/h
  • Fuel Consumption:65G/p/h

Engine RPM 1,850

  • SOG:15.9(knots)
  • Fuel Consumption:390L/p/h
  • Fuel Consumption:103G/p/h

Engine RPM 2,000 MAX

  • SOG:16.9(knots)
  • Fuel Consumption:465L/p/h
  • Fuel Consumption:123G/p/h

machinery

MainEngines

  • Engine Type: (2) MTU 12V-4000-M71 @2,480 Hp each
  • Engine Hours:
  • Stbd.: 19,978 as of September 23,2025
  • Port:19,256 as of September 23,2025
  • Gearboxes for Main Engines: ZF model 7561 (reduction 4.9:1)
  • Drive: (2) Wartsilan Propellers – 5 Blades
  • Fuel Type: Diesel
  • Batteries: (2) 24V main engine start batteries

Generators

Starboard Generator Type:

  • (1) 269 kW Scania generator new in 2014

Starboard Generator Hours:

  • Starboard: Rebuilt in July 2024
  • 5,034 hours since major overhaul
  • TOTAL Hrs.: 31,792 as of September 23,2025

Port Generator Type:

  • (1) 269 kW Scania generator new in 2014

Port Generator Hours:

  • Port: Rebuilt in June 25, 2025
  • 1,282 hours since major overhaul
  • TOTAL Hrs.: 31,392 as of September 23,2025

Middle Generator Type:

  • (1) 217 kW Scania generator. New in 2014

Middle Generator Hours:

  • Rebuilt in July 2024
  • 2,166hours since major overhaul
  • TOTAL Hrs.: 25,834 as of September 23,2025

Emergency Generator:

  • (1) Sisu Diesel model 49.492.CTAG-4V
  • Fly bridge / Port side

Catalytic SOOT Filters DPF:

  • All 3 main generators have HUG’s (low to zeroemissions)for clean above-water exhaust at waterline

Generator Start:

  • (3) Batteries 24V 200AH for main generators

Electricity

Output: Main power supply 230/400 volt, 50Hz,3- phase for wire system with grounded neutral

Shore Power: (2) New150Kva Magnus SP300 shore power converters,capable of receiving and processing inputsranging from 330-520 VAC and 40-70Hz andoutputting 50Hz, 400V, 220 AMPs (New, September 2025)

Batteries: 24-volt emergency batteries

Battery Chargers: Mastervolt Mass 24/50

Inverter: Mastervolt Mass 24/2500

Air Conditioning

Type: Heinen & Hopman air conditioning system

Air Compressor: (2) Kaeser Airtower 6

Other Machinery

Watermaker: Hydro Electrique Marine Duplex H40/4200

-750 liters (198 US Gallons) per hour

-18,000 liters (4,755 US Gallons) per day

Trim Tabs/Stabilizers: (2) Quantum zero speed stabilizers - Model QC 1800 gyro controlled non-retractabletwo-fin stabilizer system, designed for peakperformance at 15 knots while underway andoptimum roll damping while at anchor

Bow Thruster: Veth tunnel thruster VT-240

Steering System: Van Der Velden Marine Systems (hydraulic)

Steering Gear:

  • Rubber design oil bath shafts
  • Wartsila/Lips 5-blade fixed pitch nibral bronze propellers

Emergency Steering: Van Der Velden Marine Systems

Fuel Separator & Filtration: Alfa Laval PU 150 / Alfa Laval

Fuel Transfer Pump: Alfa Laval ACP 32

Fuel Filling Pump:Azcue CA50/2A

Sewage System: Biological sewage treatment unit HMSA MS-II

Fresh Water System: (2) HEM Hydro Electric Marine H40 series ROwater makers (20,000 liters per day)

Fresh Water Treatment:

  • (2) HEM reverse osmosis freshwater system / each with water softener
  • (2) HEM UV water sterilization system / HEM charcoal filtration system and silver ION

Bilge Water Filtration: Facet bilge water filtration system

Air Compressor: Mariner 200 EPR diving/firefighting air compressor rated at 330bar (200bar for divingand 300bar for firefighting)
