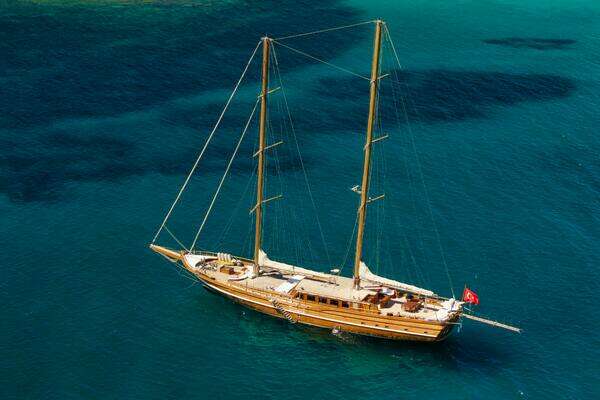

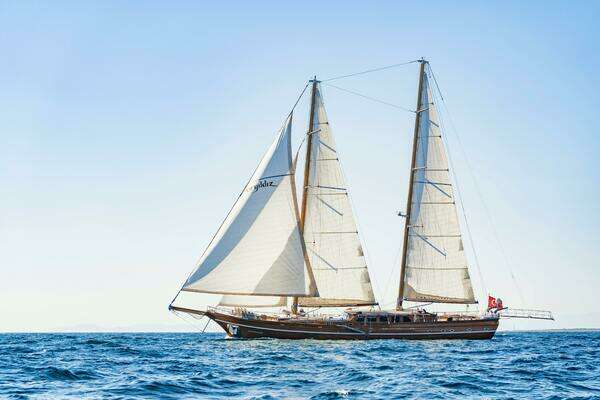

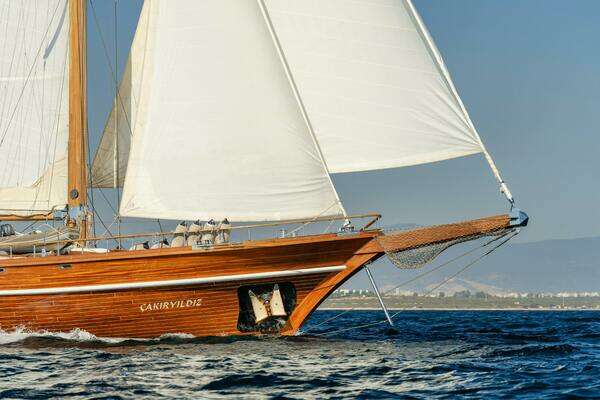

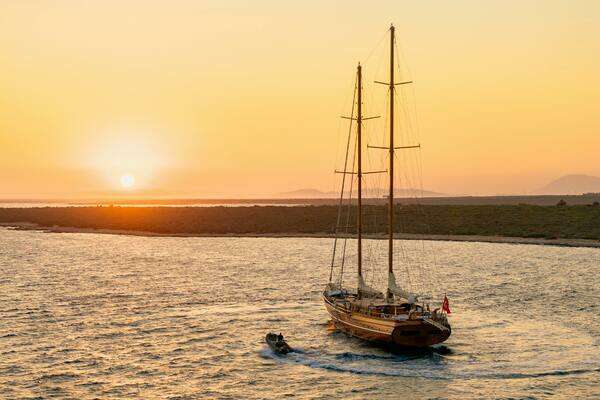

GENERALBuilt by East Shipyard-BodrumYear 2013Length 41.00 mt (incl. bow sprit)Beam 8.90 mtDraft 3.98 mtClassification BV Hull Mach, Charter Yacht, W, Unrestricted NavigationFlag TurkeyGRT 228Displacement 250.000 kgDesigner Akivades Design&ConsultancyNaval Architect Akivades Design&ConsultancyInterior Designer East Shipyard

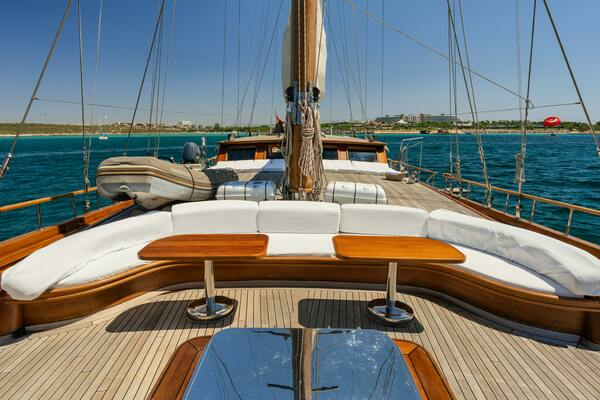

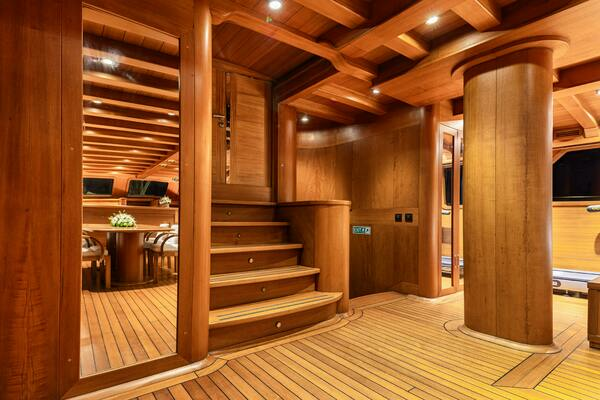

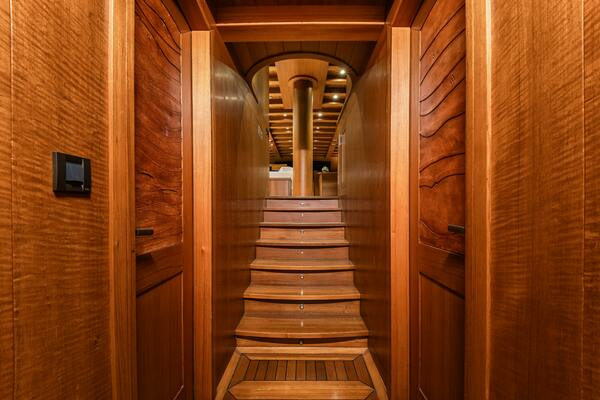

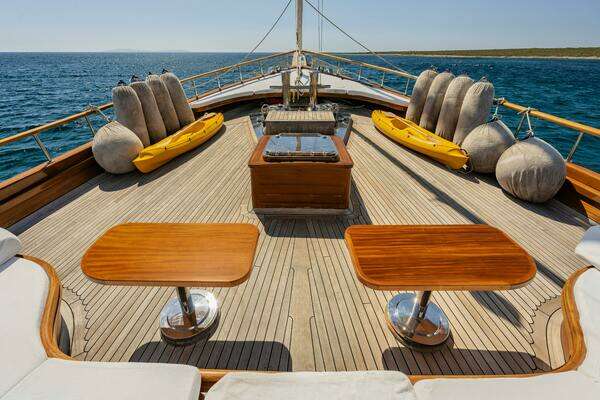

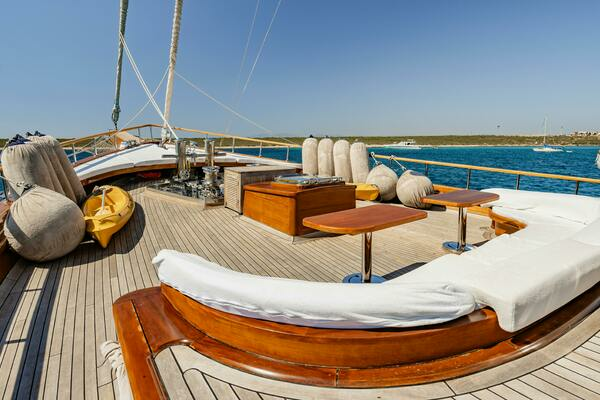

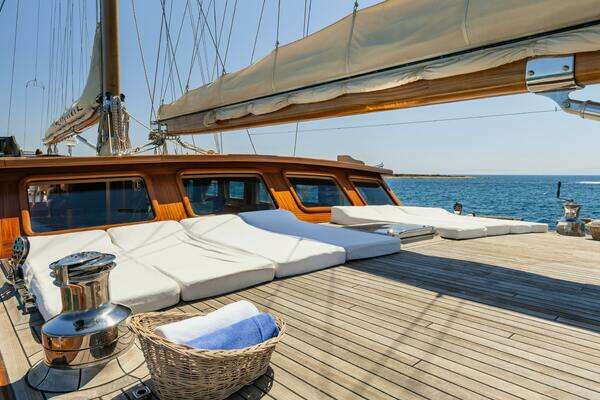

► Wood► Laminated mahogany 9 ply,► Keel, frames and stringers laminated mahogany,► Screws, nails and bolts silicone bronze,► Staples, composite,► Epoxy: International Epiglass► Paint: topsides are fully Epifanes varnish, underwater International antifouling system► Decking: 8 ply with insulation plus 15 mm Burma teak► Interior: fully Burma teak► Custom made stainless steel portholes, hatches and watertight doors
Speed 14.5 knFuel capacity 9,500 ltWater capacity 5,500 ltBlack water capacity 6,360 ltGrey water capacity included in black water

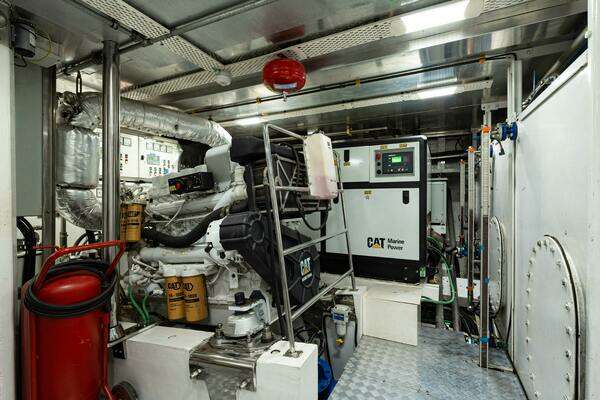

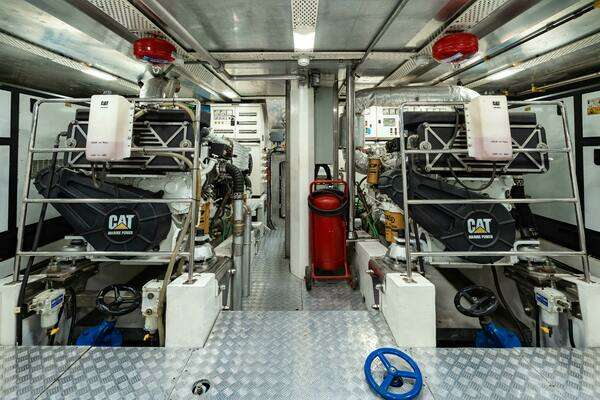

Engines 2x CATERPILLAREngine model 2x CAT C18 ACERT, 600 HP, 1800 rpm, B RatingEngine hours 2000 hrsFuel DieselPropulsion Conventional type (with g/b, shaft, a bracket and fixed pitch props)
Gearboxes 2x ZF W650, Ratio 3,605:1, with live PTOSteering Hydromarine Steering GearStabilizers N/A
Generators 2x CAT 4.4 DITA 69 kWe 50 Hz plus CAT 4.4. DINA 38 kWe 50 HzGenerator hours 8000 hours on 69kW
► 380 VAC main switchboard and 24 VDC&230 VAC main switchboard has been located in Engine room► 20 pcs independent switchboard panels,► All generators could be running in parallel conditions, both automatically or manually► Inverter: 2x Victron Energy Multiplus 5000 W► Battery Chargers: Victron Energy Skylla and Orion models,► Batteries: Victron Energy 12x 2 V-1500 A Gel type batteries,
AGM type batteries for starting and emergency, Shore power Batteries► Victron Energy 12x 2 V-1500 A Gel type batteries, AGM type batteries for starting and emergency
► Marincold Air Handling Unit : MC320 H/C – 320.000 BTU► Marincold Fancoils for each cabin and compartment

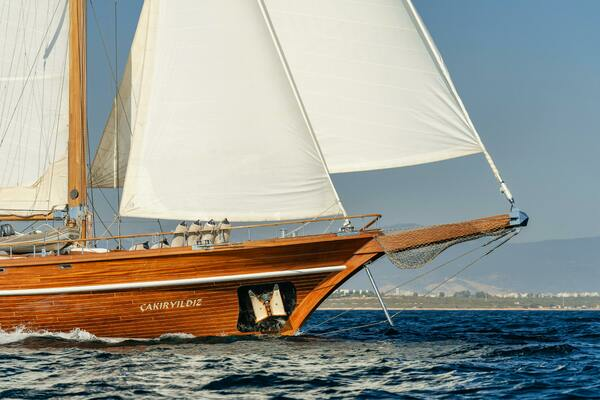

Bow Thruster Wesmar hydraulic fixed pitch propellerStern Thruster N/AWater makers 2x SELMAR PACIFIC 280 CS, 600 lt/hrsPropellers 2x Fixed Pitch Al Cu3 Bronze propellerShafts 2x stainless Steel Shafts Rudder angle indicators Hydromarine Rudder Angle İndicatorFuel filters 2x Separ SWK-2000/5Fuel Filter for each main engineFuel oil separator N/AOil/water separator N/AFire bilge pump 2 pcs G&R ACM 501 BT (15 cbm/hr cap) bilge&fire pump 1 pc G&R Diesel DrivenEmergency fire pumpBoilers 2x 100 lt G&R Boilers (with independent circulation pump)Sewage treatment 2x HAMANN Super Mini PlusWaste water treatment unitWC’s EVAC Vacuum System, 24 VDC and 230 VAC usable Fresh AirMake up unit Marincold Fresh Air Make Up Unit: MCF/A 480 – 48.000 BTU

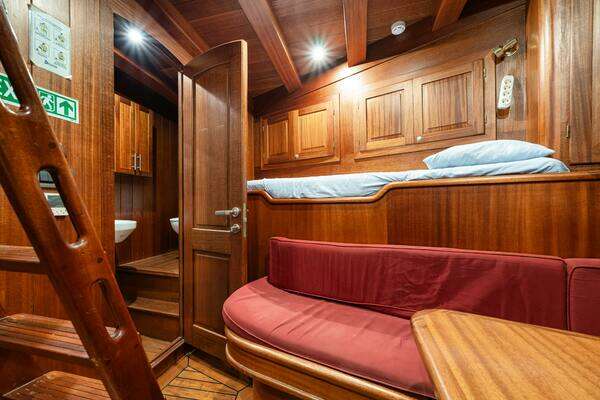

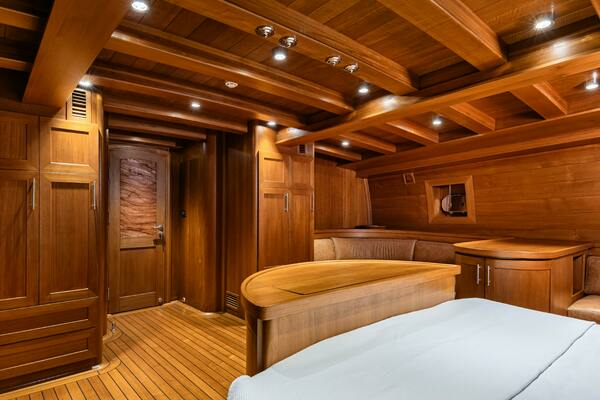

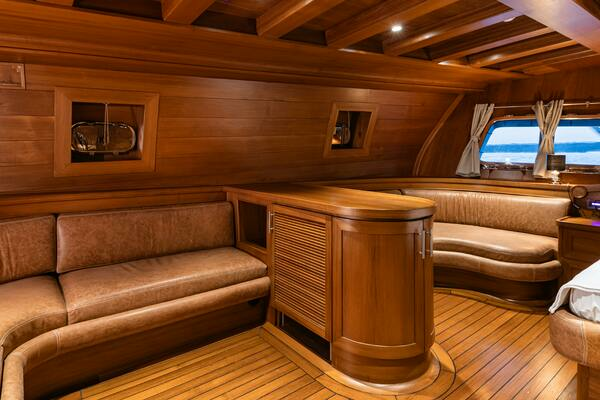

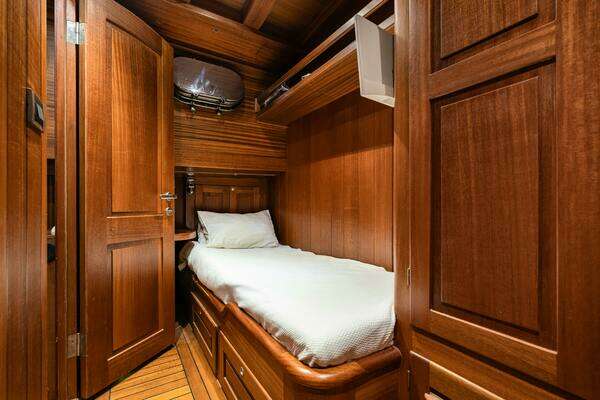

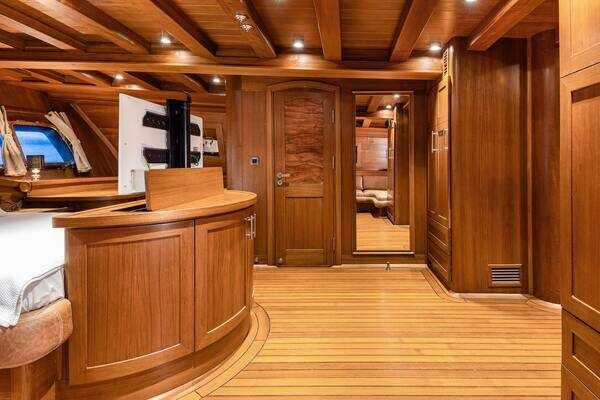

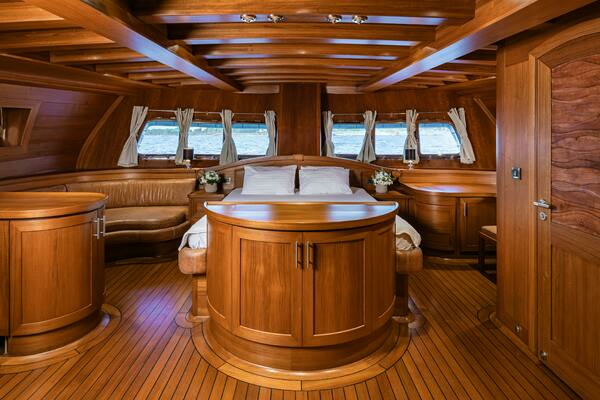

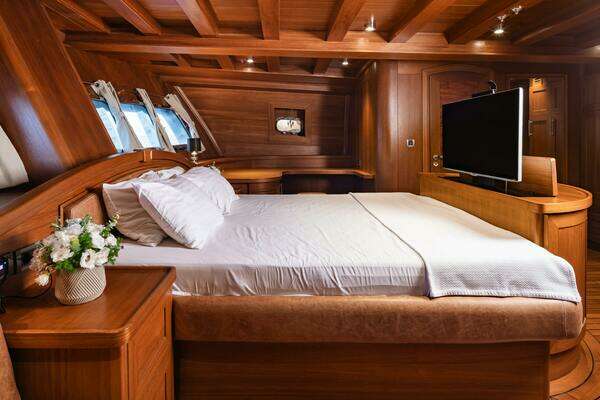

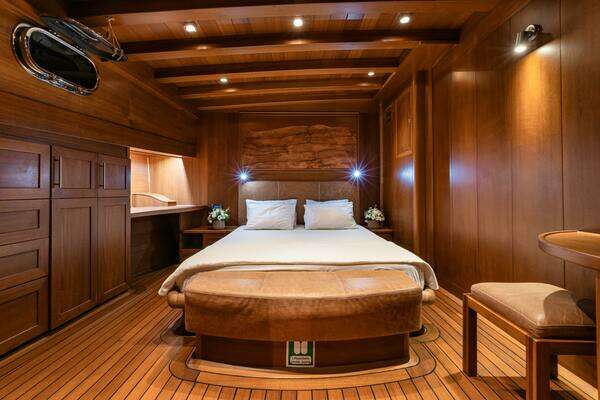

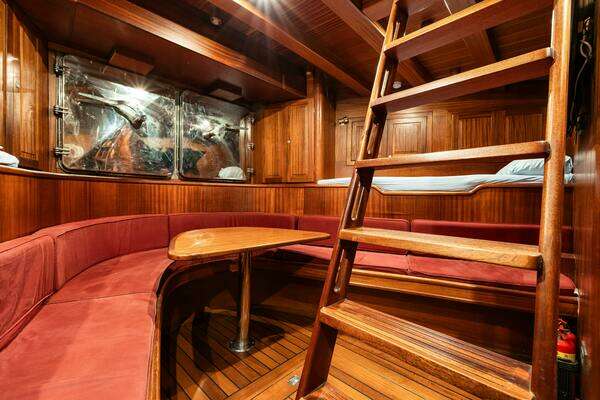

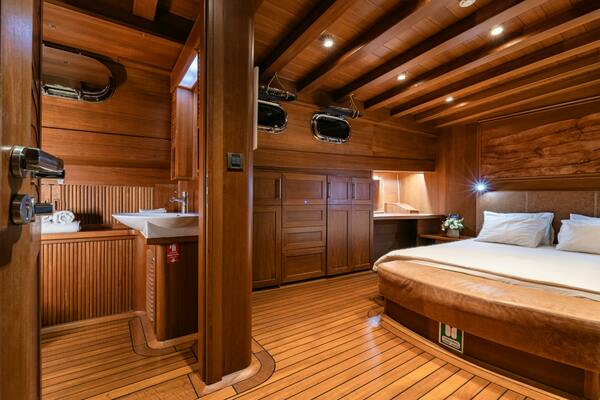

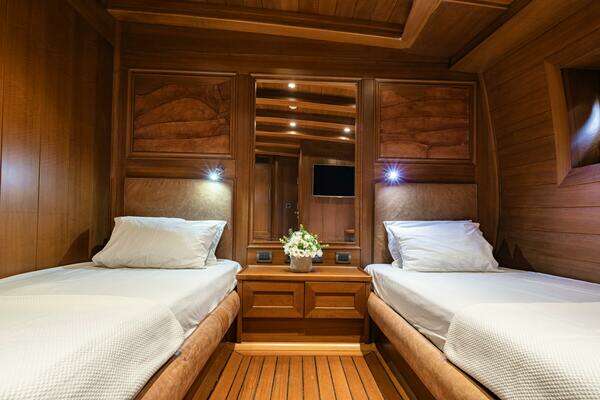

OWNER Master Cabin located aft side of yachtGUESTS 4x Guest cabinSTAFF Hostes cabinCREW Captain Cabin and crew cabins(fore side)

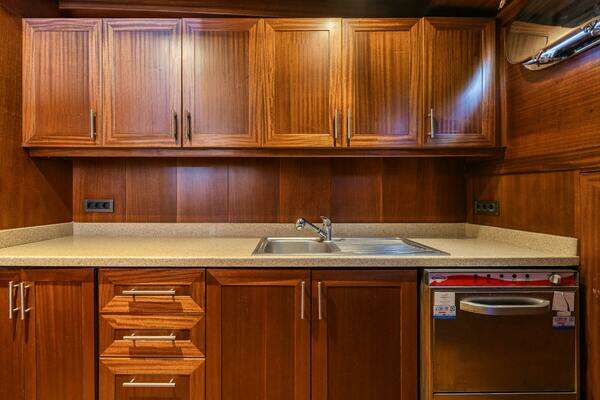

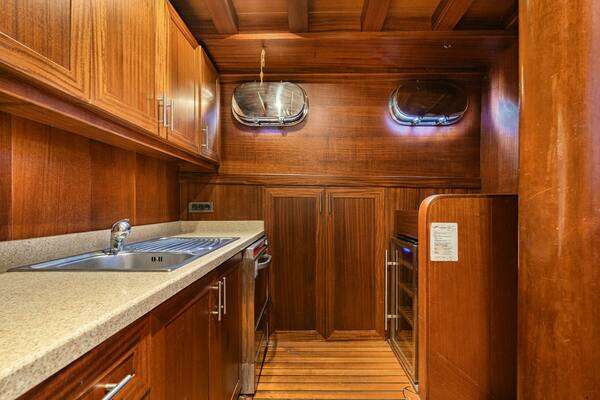

► Electric powered cooking plate with 5 sections,► Franke owen► 2 pcs Siemens Refrigerator► 2 pcs Deepfreeze► 1 pc washşng machine,► 1 pc drying machine

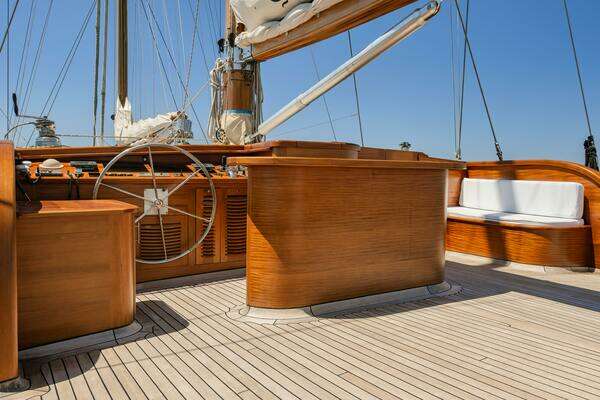

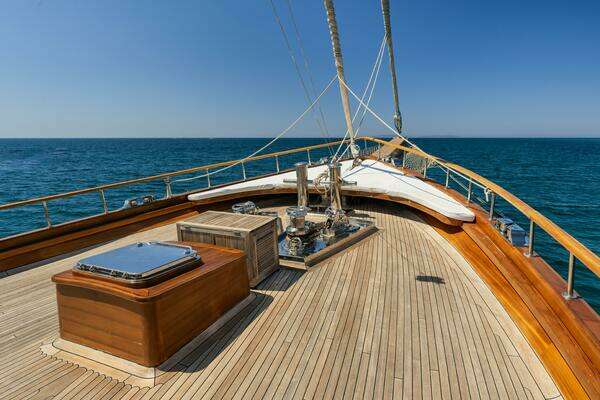

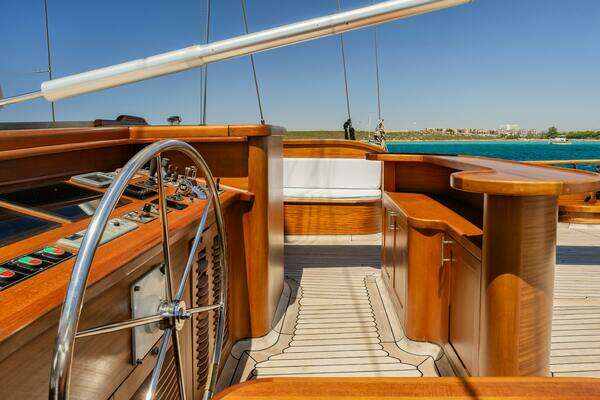

Steering System Hydromarine Hydraulic SystemWindlass 2x Hydromarine Hydraulic WindlassAnchors 2x 230kg HHP Stockless AnchorsChains 19mm Galvanized Chain, 275mt
COMMUNICATIONS EQUIPMENT► Raymarine VHF & UHF

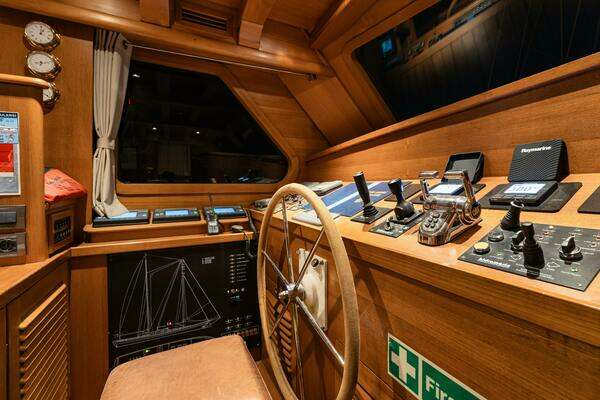

NAVIGATION EQUIPMENT► 2x Raymarine Radar,► Raymarine Autopilot,► Raymarine Chart Plotter,► Raymarine Echosunder & Sppedlog

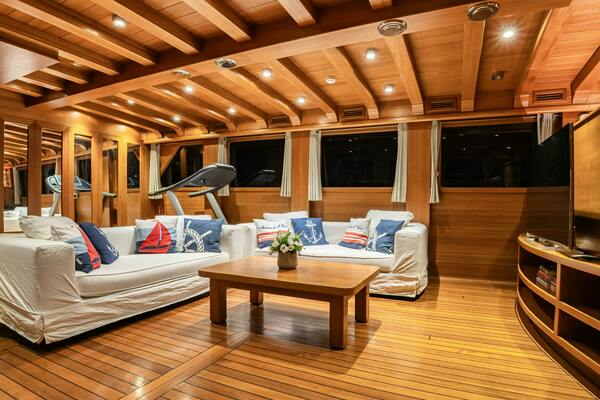

ENTERTAINMENT EQUIPMENT► Satellite TV in each cabin and saloon► Home cinema in saloon and master cabin► Sonos central music system available in every cabins andareas

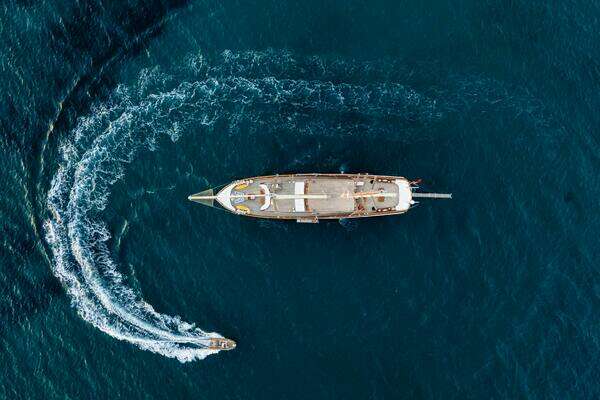

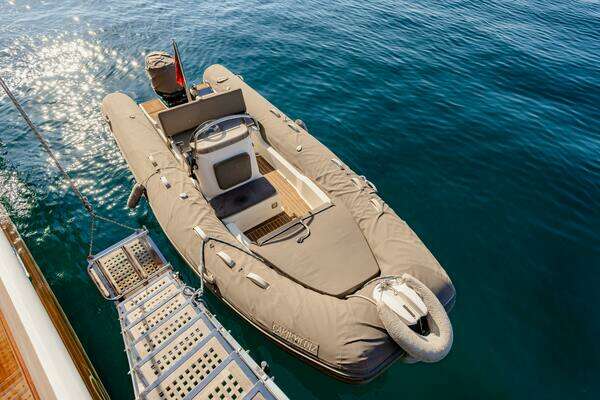

TENDERS► Zodiac Medline 5,40 mt with 100 HP Yamaha outboard► Zodiac Cadet 3,10 mt with 20 HP Yamaha Outboard
► Banana (3 person)► 2 sets water ski set for adults► 1 set water ski set for children► Kneeboard► wakeboard► 2x Ringo► 2x kano
► 2x Liferaft (12 person/each)► 12x Lifejacket► 5x Lifejacket (for children)► 6x Lifebuoy► Line Throwing Set► 12x parachute Signal Rockets► 2x Handheld Radiotelephone Apparatus► Fixed CO2 system with Engine Room (acc to BV Rules)► Fire dedection System for each compartment► 14x Powder Extinguisher ( 6 kg)► 10x Powder Extinguisher (2 kg)► Quick Closing Valve System (for fuel tanks)► Fire Station► Quick Clos Dampers for Engine Room fans► Fire Hoses and Nozzles for each fire hydrant

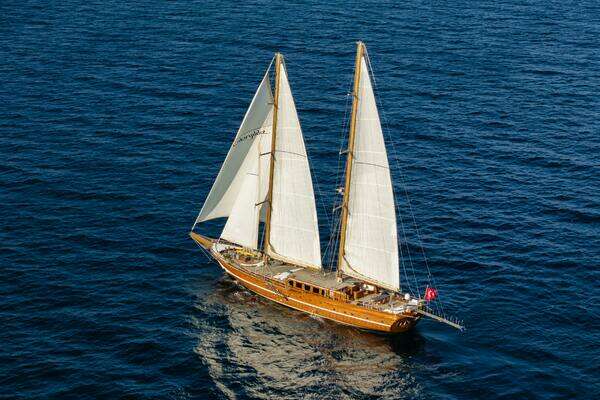

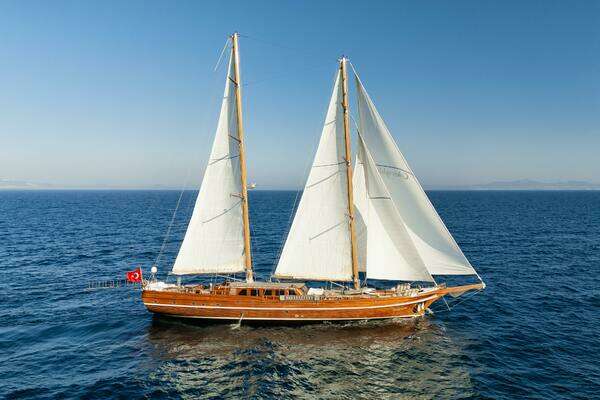

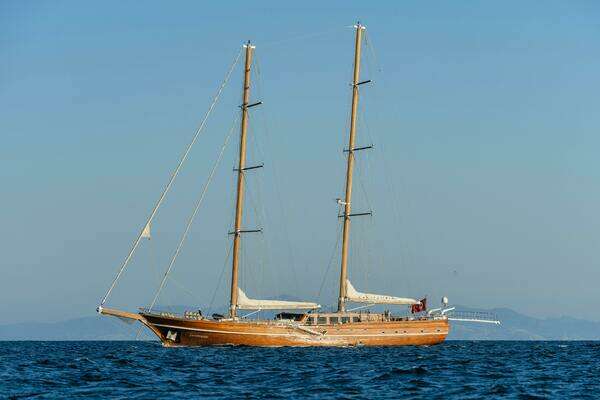

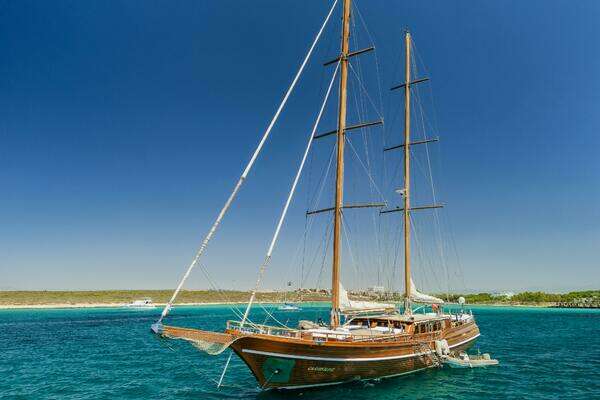

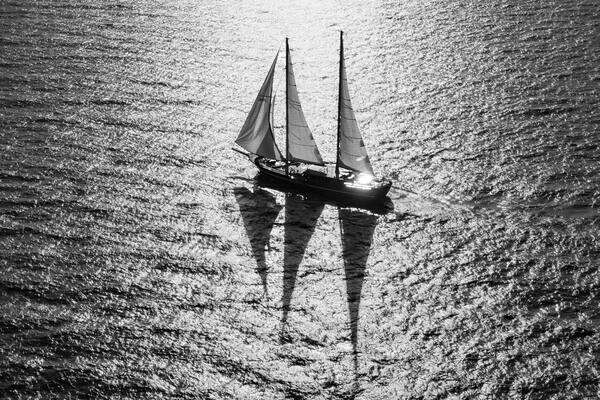

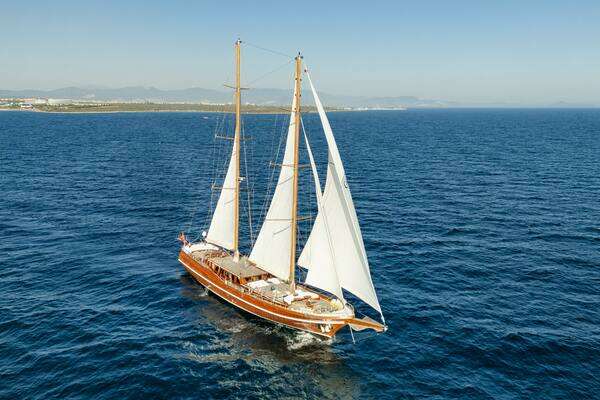

Main Sail 227 m2Mizzen Sail 193 m2Spinnaker Sail 95 m2Genova Sail 233 m2► Laminated wooden masts► Sail winches: 10 pcs Andersen stainless steel hydraulic winches on deck► Furlings, boom vangs and backstays: Bamar► Deck blocks and sailing equipments: Antal► Custom made stainless steel liftings and accessories
A complete list of exclusions is available upon request.
