overview
LOA: 49.90m (163′ 8″)Beam: 9.20m (30′ 2″)Draft: 1.90m (6′ 2″)Builder: Overmarine (Mangusta)Year: 2017 (2022)Model: Mangusta 165 EBuilder: OvermarineEngines: 4 x MTU 2600 HPSpeed: 25/35 knots (approx)Range: 800nmAccommodation: 10 guests in 4 cabins (+ cinema room)Crew: 9Draft: 1.90m (6′ 2″)Gross Tonnage: 485Tax Status: VAT PaidConstruction: GRP
key features
• The most iconic Mangusta 165E ever built• Pristine condition and very high spec• Under original private ownership with EU VAT Paid• Equipped with the latest MTU engines, still under warranty• ABS 5-year special survey completed in 2022• Full-beam amidships owner’s suite with private study and dressing• The largest aft deck found on any 50-meter yacht• Spacious exterior decks with jacuzzi, bar, seating and DJ booth• Zero speed and underway gyro stabilizers
description

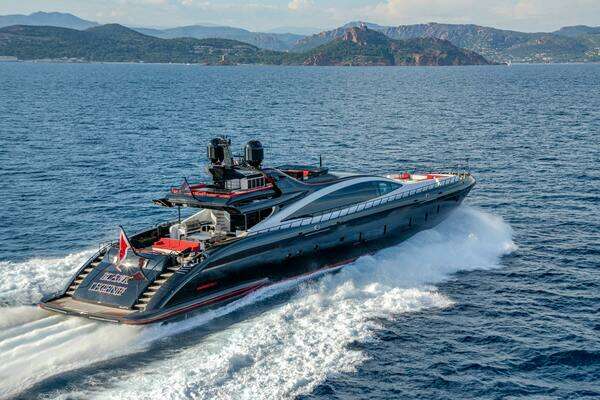

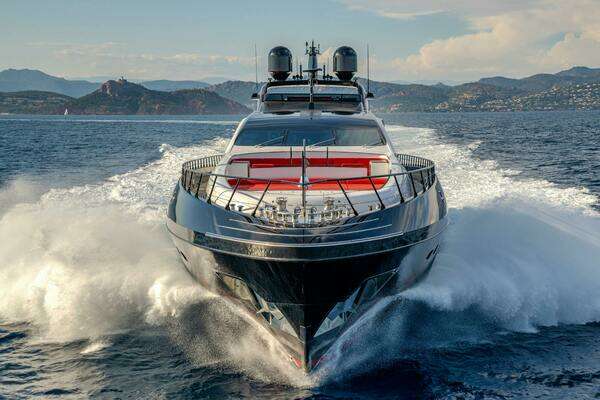

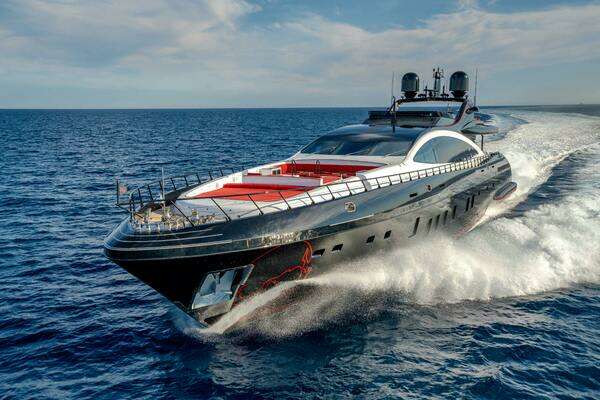

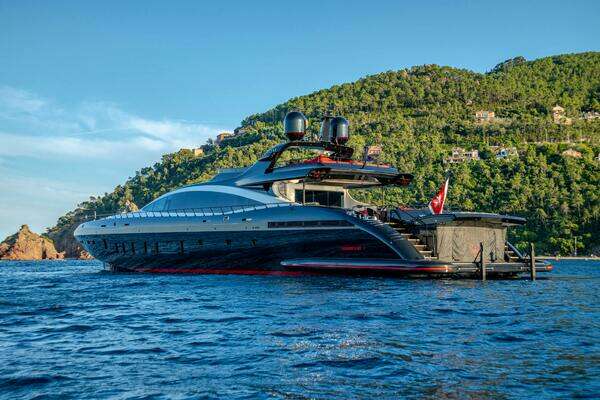

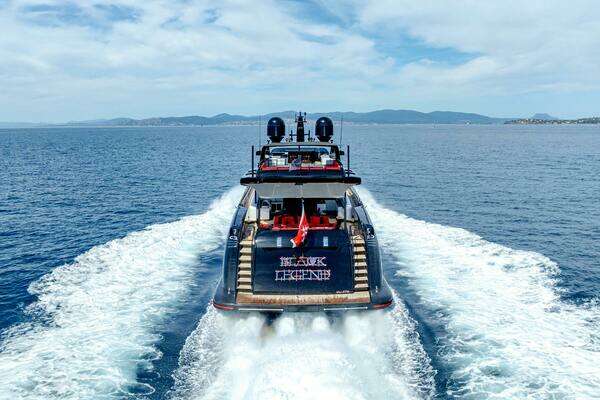

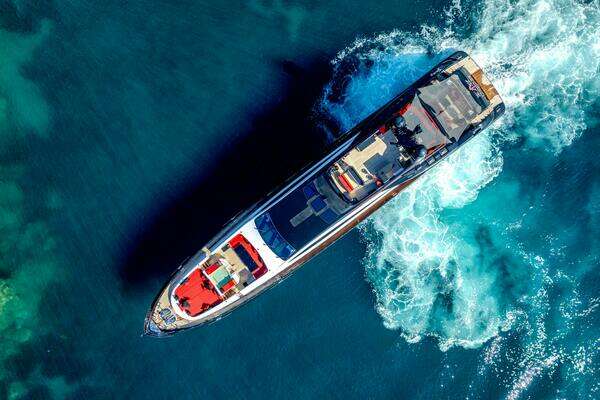

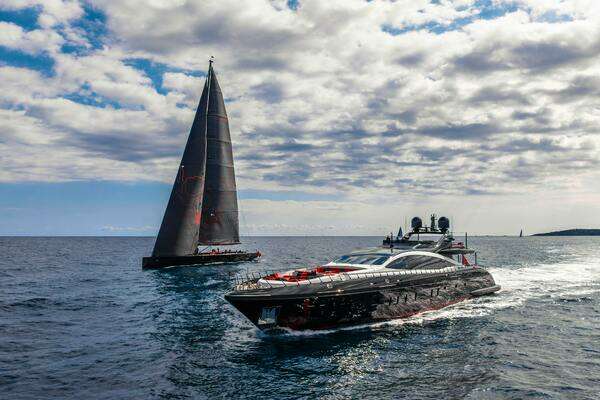

The 50-metre Black Legend is an immaculately presented, fast and sporty Mangusta 165E, and the penultimate hull delivered in the series. Maintained in pristine condition by one private owner, equipped with the latest MTU engines for optimum efficiency, and boasting a blistering top speed of 35 knots, Black Legend is one of the most iconic Mangusta yachts ever built by Overmarine.The semi-custom open yacht was built for a highly experienced owner with performance, comfort and style in mind. Conceived with the support of a strong project management team, this truly unique superyacht is optimised at every turn to enhance the guest experience. She was awarded ‘Power Yacht over 40m’ at the International Yacht & Aviation Awards.Her meticulously designed Asian-inspired interior enjoys a modern achromatic colour palette, enhanced by exclusive fabrics. The spacious main deck salon leads directly to the largest aft deck found on any 50-metre yacht, with a bar, barbecue, al fresco dining area and comfortable sofas to accommodate large groups of friends and family.On the lower deck, a full-beam master suite with a private office and dressing room is complemented by a gym, cinema, and three further guest cabins, including a VIP. The cinema room can be converted to sleep a further two guests if required, bringing the total guest accommodations up to 10.Key highlights of the sprawling exterior deck spaces include an incredible foredeck area with a Jacuzzi, forward view seating and sunbeds with awnings. The sundeck is an ideal entertainment space, with sunpads, a cocktail bar and a DJ booth. On the lower deck, the beach club and stern platform provide waterside relaxation, while explorers and thrill seekers will appreciate the garage setup for watersports, chase boats and tenders.Black Legend has always been meticulously maintained and completed her ABS 5-year special survey in 2022. She’s also equipped with both zero speed and underway stabilisers for the smoothest and most comfortable of guest experiences. The yacht is offered with an MTU warranty extension.
main characteristics
Built by: Overmarine (Mangusta)Year: 2017Length: 49.90m (163′ 8″)Beam: 9.20m (30′ 2″)Draft: 1.90m (6′ 2″)Classification: ABS, A1, AMS, MCA LY3MCA: YesFlag: MaltaHull colour: BlackGross tonnage: 485 tDisplacement: 300 tDesigner: Stefano Righini DesignNaval Architect: OvermarineInterior Designer: Overmarine
capacities
Cruising Speed: 25 knots (approx)Top Speed: 35 knots (approx)Range: 800nm at cruising speedFuel capacity: 40,000 Litres (10,567 US Gallons)Water capacity: 4,000 Litres (1,057 US Gallons)Black water capacity: 5,400 Litres (1,427 US Gallons)
fuel consumption
560 L/hour at 17knts1220 L/hour at 25knts1688L/hour at 30 knots
machinery

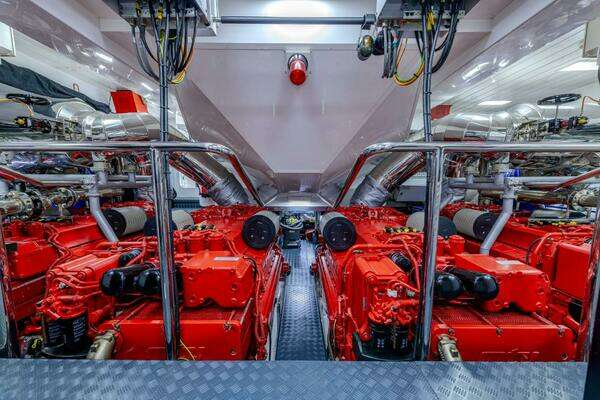

Engines: 4 x MTU 2600 HPEngine model: MTU 16V 2000 M94Engine hours: Port: 1447hrsStarboard: 1454hrsCentral Port Engine: 1420 hrsCentral Starboard Engine: 1420 hrsPropulsion: Water JetsGearboxes: ZF model 5050Steering: 2 x Waterjets Kamewa (RRAB) model 71-4 and 2 x 71-B4 (Booster)Emergency Waterjets steering through a RRAB/Kamewa back-up panelin Wheelhouse and ER.Stabilizers: 4 x Seakeeper 30HDAir Conditioning: Frigit Chiller C-18 - 2x18kW – 241,160 BTUBow Thruster: Mod. 24” TRAC 90kW 400V/3ph/50HzWater pressure system: 2 x Electrical pumps Gianneschi P&B / Jet 622 400V/3ph/50HzWater maker: 2x Idromar / MC 5S, 230 lt/h reverse osmosisSand Filters: IdromarBoilers: 6 x 120LtUV Filters: IdromarWater Softener: IdromarMesh Filter: IdromarSilver Ion Dosing Station: IdromarActive Carbon Filters : IdromarSewage Treatmant plant: Selmar 12000 plusTrim Tabs: 8 x Humphree Interceptor
electrical
Generators: 2 x KHOLER model 100 EFOZDJ 99 kW, 400 VAC, 50 Hz, three-phase.Starboard Generator: 6883 hrsPort Generator: 6394 hrs400 V, 50 Hz, 3 x phases for power consumers (TN-Net)230 V, 50 Hz, 1 x phase for small equipment and lighting (TN-Net)24 V DC for monitoring, external communication, different nautical and other consumersShore power: Shore power 400 VAC 3-phase 50 Hz, insulator transformer primary 3- phase, secondary 3 phase with neutral grounded at one point, 80kVAShore Power Cable: 25 metre 250 Amp. 400 VServices pack batteries: One bank of approximately 630Ah as auxiliary power supply and for emergency lightingMain emergency batteries: One bank of approximately 420Ah with battery charger.Secondary emergency batteries: One bank of 60Ah with battery charger.
accommodations

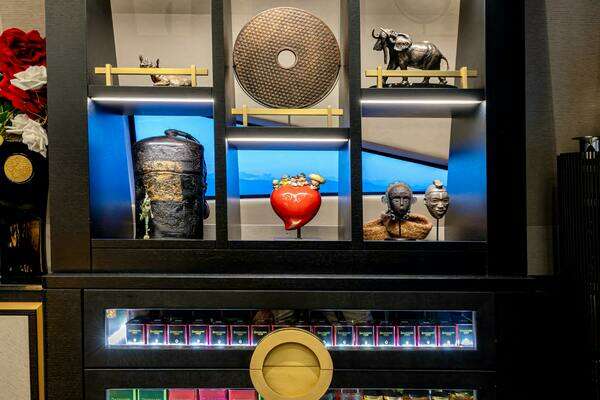

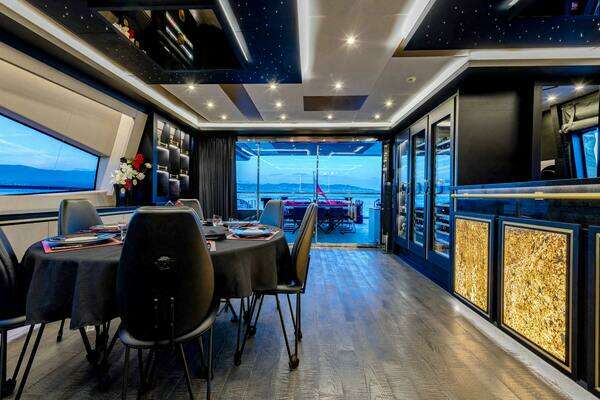

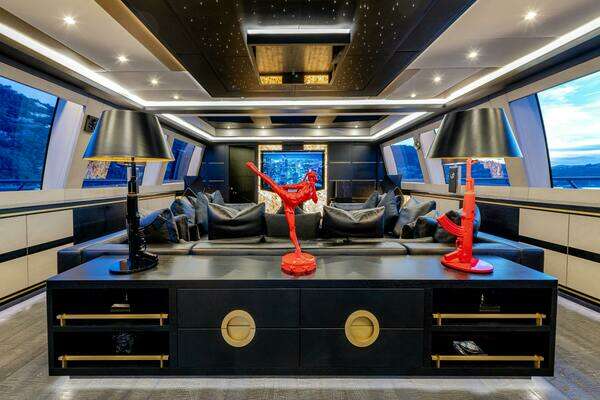

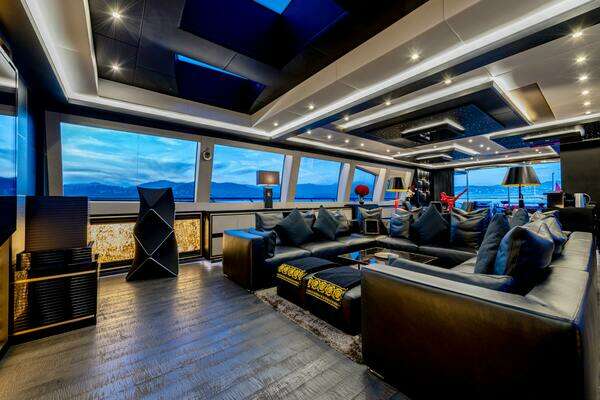

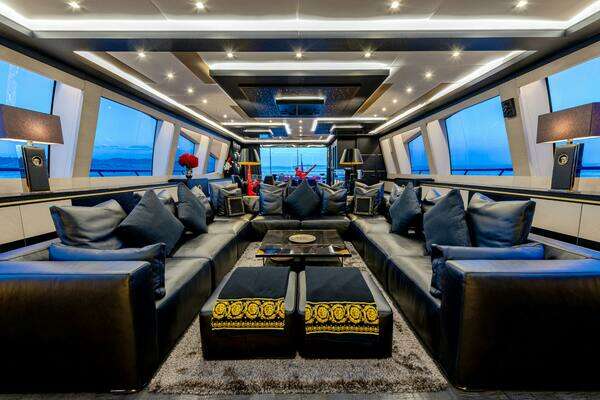

Main deck salon - Glass showcase

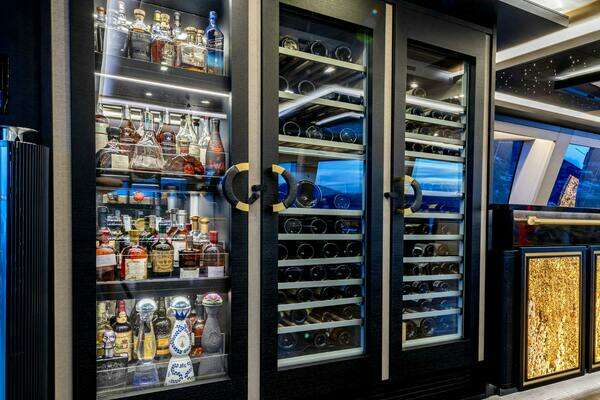

- Wine cooler with bronze handle
- Bronze handle/finishing on all storage furniture
- Backlit panel with Slate Lite Elios gold
- Black leather Minotti texture
- Marble black granite
- Relax Sofa Area with Minotti Leather Black and Tavolino Versace
- Fully equipped bar
- Day head
- Versace guardian table & chairs
- Celling composed with leather studio art pearl ora, white leather, black leather, fibreoptic light and indirect lighting

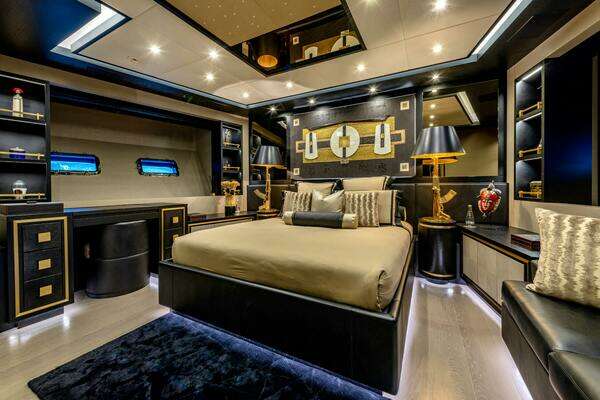

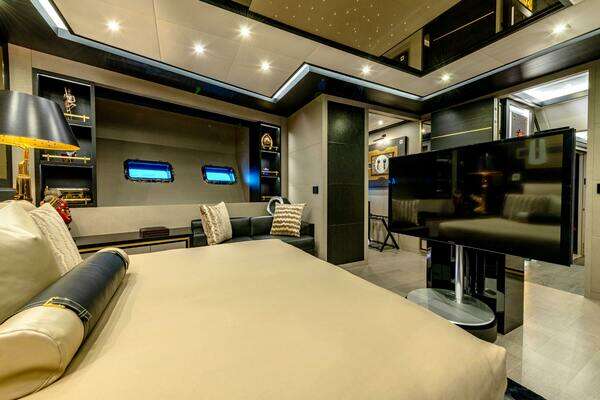

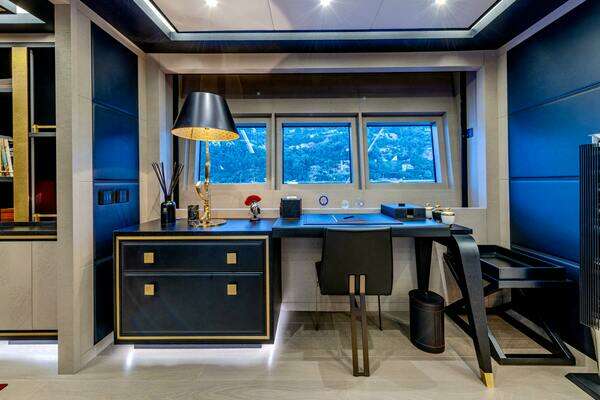

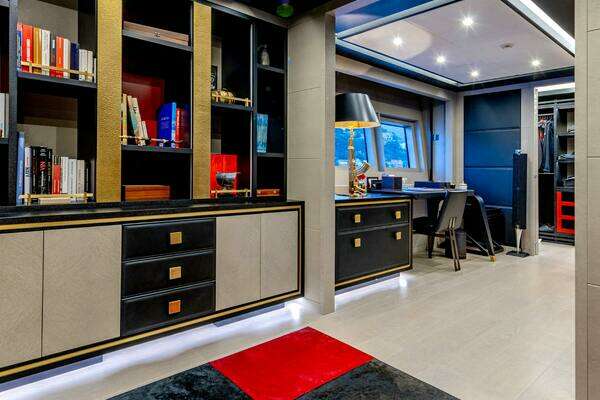

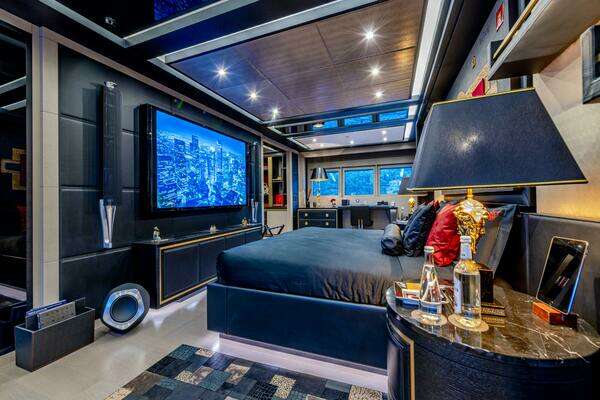

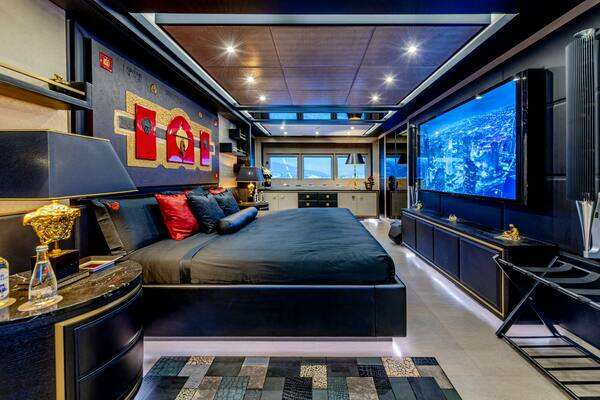

Owner cabin - Entrance with a library and storage area
- Full beam suite with bedroom

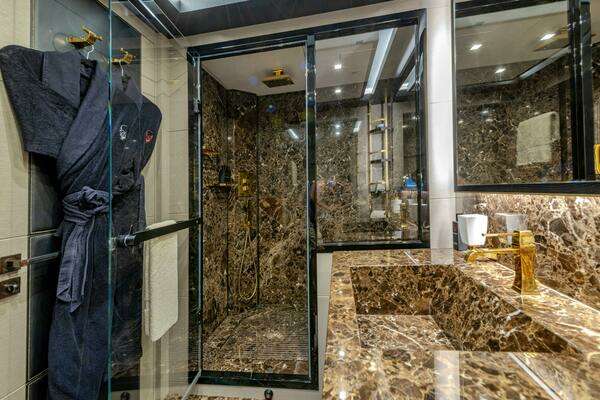

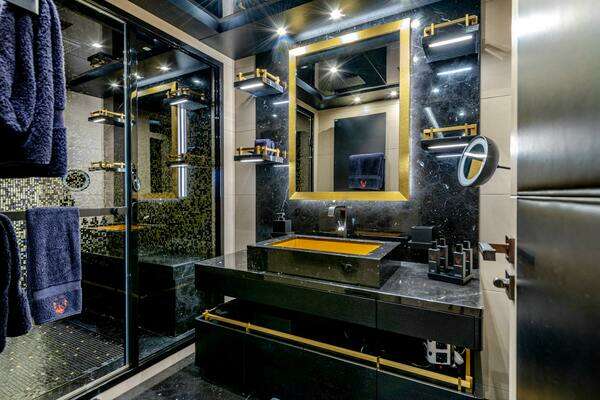

- En-suite bathroom with hammam shower

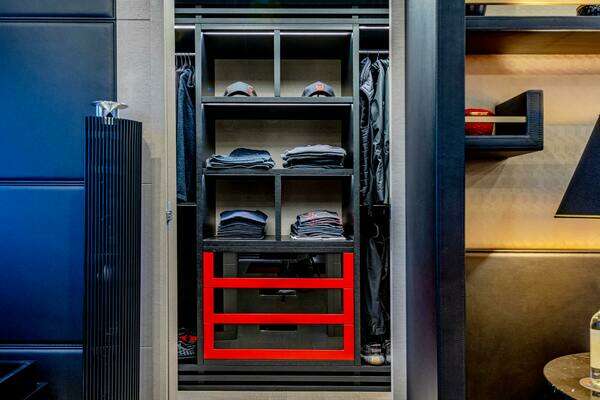

- Full size owner dressing
- Marble Marquina

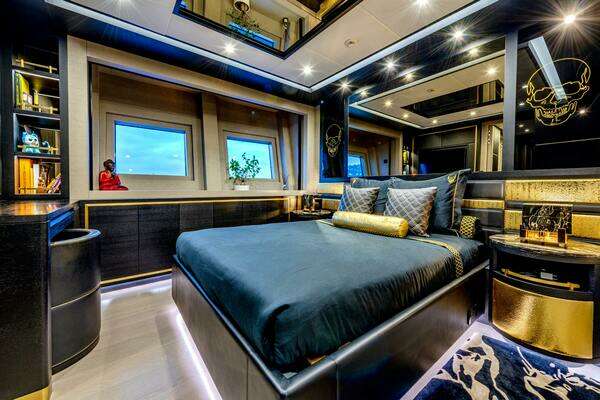

VIP Cabin - Full beam cabin located forward
- En-suite bathroom
- Private dressing
- Marble Portoro

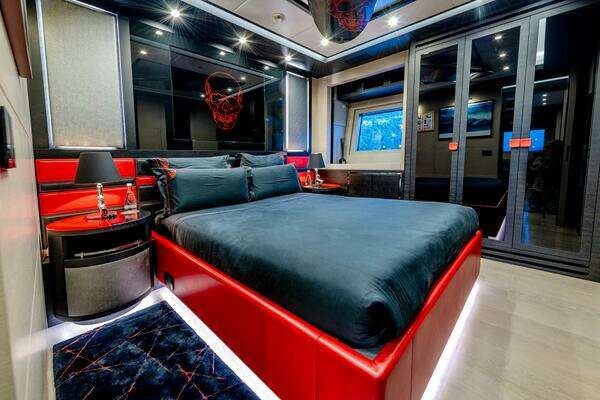

2 x Double guest cabins - Cabins located portside and starboard
- En-suite bathrooms
- Private dressing on portside cabin
- Marble Portoro

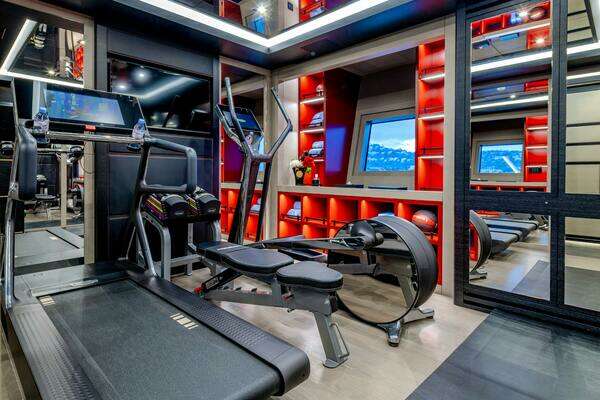

Gym - Fully equipped gym by Technogym (treadmill and elliptical bike).

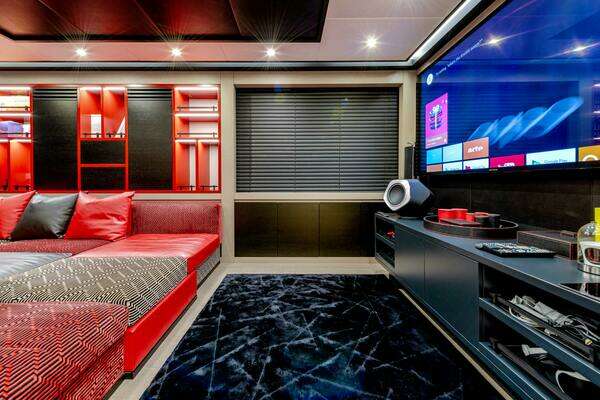

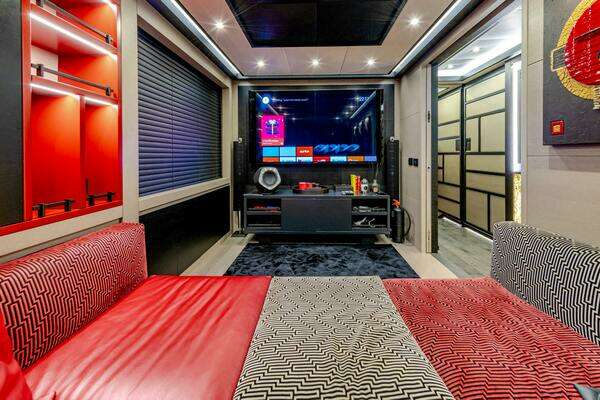

Cinema Room - Cinema room with dedicated entertainment system. Can be converted into two beds.

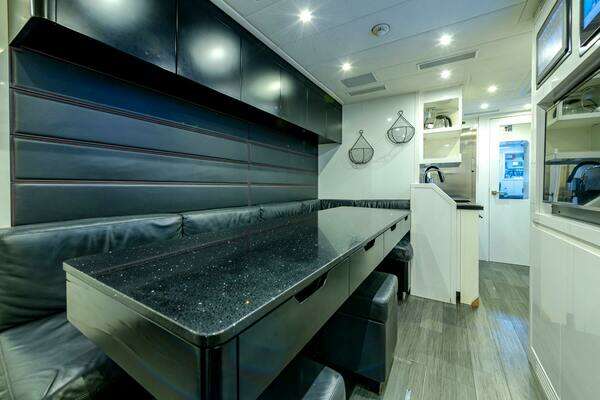

galley & laundry

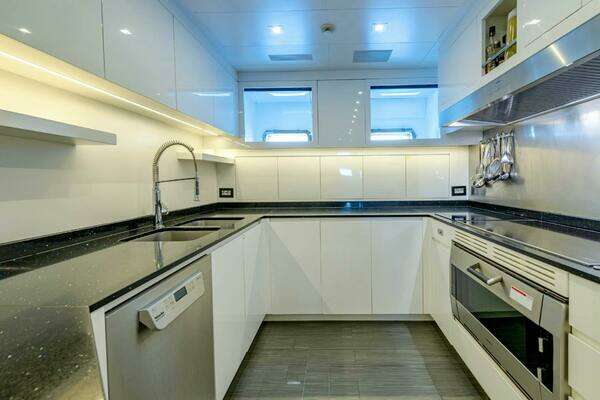

Galley1 x Miele Induction Hob full surface1 x Miele Induction Hob1 x Gaggeneau oven1 x Microwave Gaggeneau8 x Custom fridges (with either positive cold or negative cold)2 x Freeze in bilge1 x Miele DishwasherLaundry2 x Washing machine Miele Pro2 x Dryer machine Miele Pro
communication equipment
Pepwave 5G RouterPre-installation for StarlinkVSAT V100 GXTV SatellitePeplink for WIFI distributionVHF-D FM-472
navigation equipment

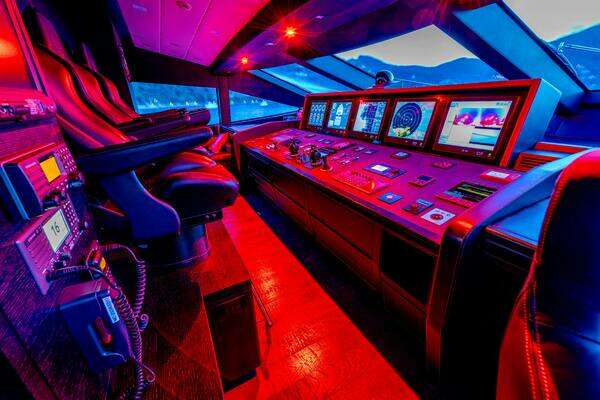

WheelhouseDisplays: 5 x Hatteland 19” HD 19T21MMDPlotter: Transas Navisailor 4000 Conning DisplayAIS: Transas AIS Interface Level 3Computer: PC Wallmount WMT 300 PC BoxGPS: Furuno GPS DGPS GP 1700 IMO approved + Furuno GPS GP-33Gyro Compass: Simrad GC80 + Simrad AR80 analogue repeaterCompass: Cassens & Plath BETA 5Radar: Furuno FAR 211Depth Sounder: Furuno IMO Echo Sounder FE800Speed log: Furuno Doopler DS80Wind log: Airmar Weather WX150 NMEA 0183/2000Multifunction Displays: 2 x Furuno FI-70Autopilot: Sperry Navipilot 4000 C-PLATHHelm: C-PlathAIS: Furuno Ais Transponder FA 150 CLASS ABNWAS: Furuno BNWASVHF: FM 8900S GMDSS Class A + VHF Furuno FM 4721 DSC Class DNAVTEX: Furuno NAVTEX NX700INMARSAT: 2 x Furuno INMARSAT STD C/LRIT – IMO FELCOM18 INMARSAT-C + Furuno INMARSAT SSAS system MINI-C FUR.FELCOM-19 SSASSSB: 1x SSB Cables predispositionIntercom: Phonotec CIS 3100Infrared Camera: M-Series Flir M-625XPFlybridge Wing Stations2 x Furuno FI-70 Multifunction Displays2 x VHF Repeater RB8900
deck equipment

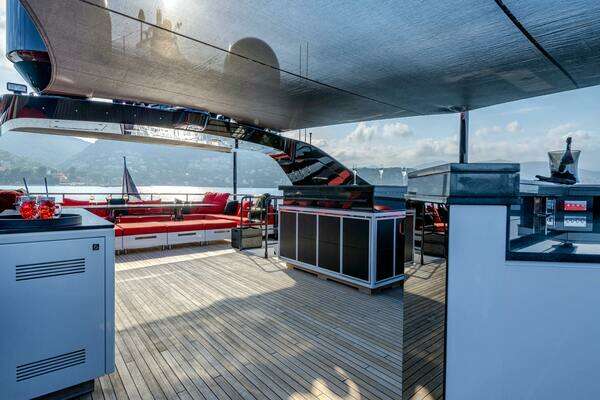

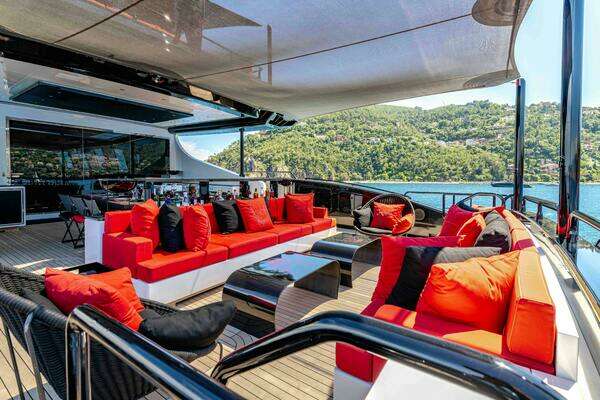

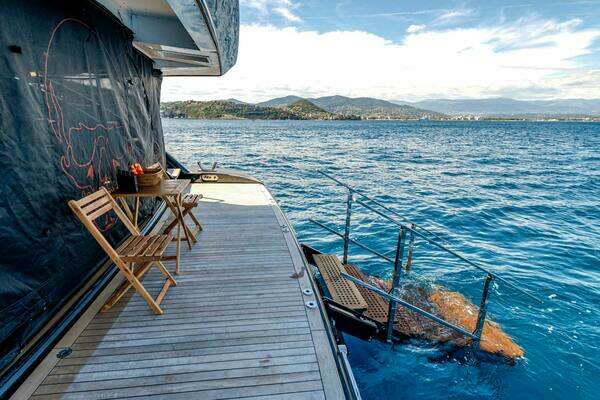

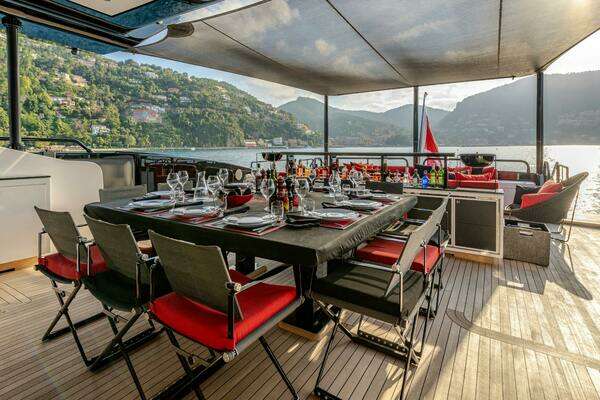

Bollards / cleats (680mm W x 310mm H)4 x Bollards on foredeck2 x Bollards on the aft deck2 x Mooring line stowage winches on forepeak2 x Mooring line stowage winches on aft deck6m Telescopic gangwayBathing ladderAft Deck - Black tanzania granite dining table with 8 x Dedon Seax chair
- Aft lounge with 2 x Paola Lenti armchairs, 2 x large sofas, 2 x Paola Lenti cocktail tables
- Bar with black tanzania granite countertop and white lacquered wood
- Custom furniture with BBQ Napoleon bypro 825, sink, fridge, ice maker
- Full lighting system on celling
- Multiplex awning

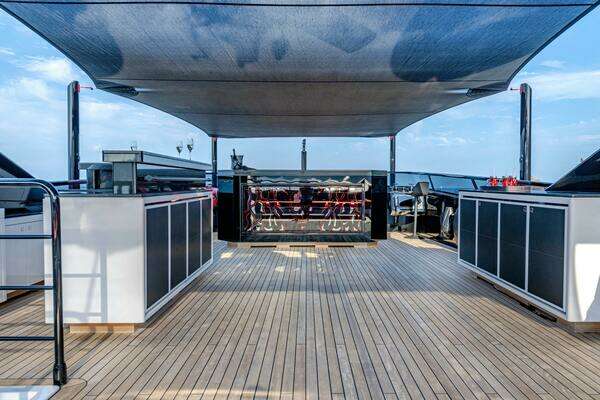

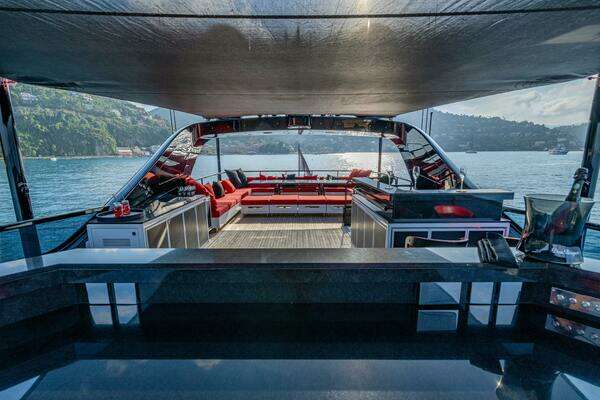

Sun Deck - Very large sunbed area
- Fully equipped bar with black granite countertop
- Custom DJ booth
- Sofa with forward view
- Multiplex awning

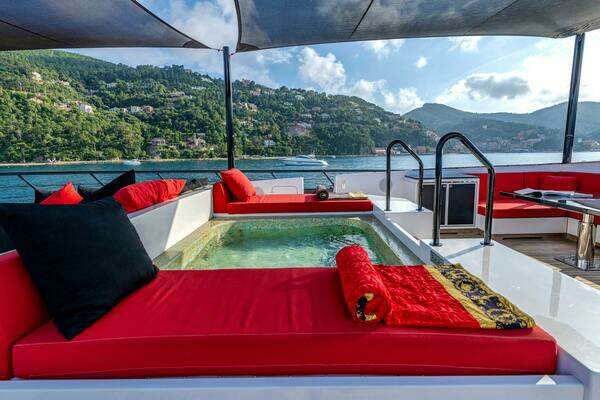

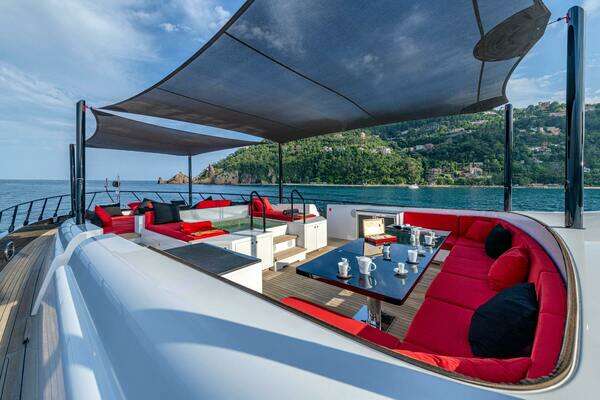

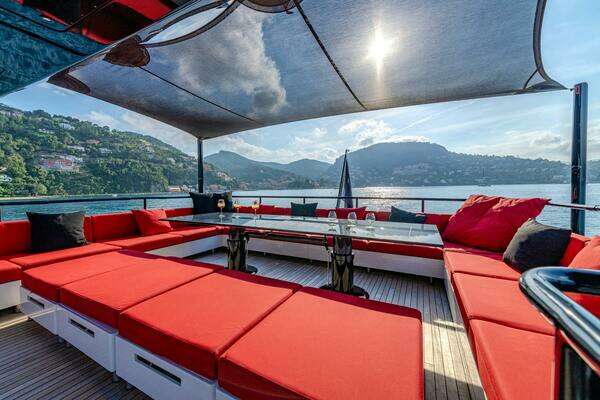

Fore Deck - Large U shape sofa with 2 x cocktail tables with black granite counter-top
- Large sunbed area

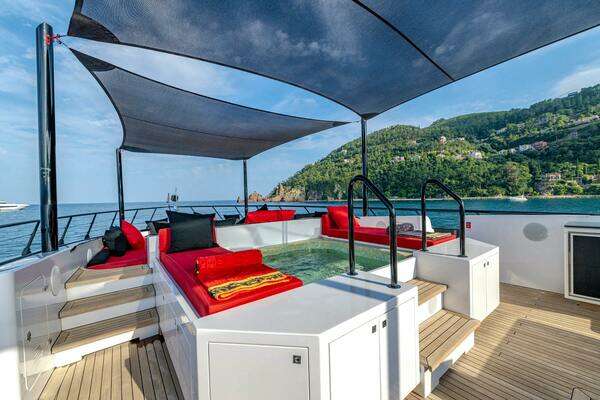

- Mosaic jacuzzi
- 2 x Custom storage furniture with icemaker and fridge
- Multiplex awning
safety & security equipment
All safety, bilge, and fire-fighting equipment according to class and flagPump Gianneschi P&B / ACB 531 A – 400V - 4 KwBilge Oily Water Separator DVZBilge Oily Water Tank with capacity according to “Tank capacities”Emergency Pump (Diesel) outside engine room2 x Bilge/fire pumps, which are also used as fire pumps, are installed in the engine roomPortable extinguishers are installed in all areas of the vessel according to the ABS/CISR regulations
tender & toys
Milpro Commando TenderSeadoo RXPX 3002x Seabob F5S Carbon
refit history
All machinery serviced annually according to best practicesMTU engines still under warranty2017 - MTU Engine Interface Module changed for port engine
- Generators standard annual service
2018 - MTU standard annual service
- Generators standard annual service
- Seakeeper starboard centre ECU replacement
2019 - MTU 500hrs service
- MTU replacement of alternator seals and bearings
- KaMeWa standard annual service
- Generators standard annual service
2020 - MTU port engine centre, modification of the condensation air manifold
- MTU port and starboard engine centre, turbocharger casing
- MTU 1000hrs service
- ZF. A1 service
- SELLMAR reconditioning of the 3 pumps, replacement of UV lamps and ballast
- KaMeWa standard annual service. Oil analysis, alignment check, ultrasonic examination
- Humphree cleaning of the blades and replacement of the through-hull fittings with engine rings
- Generators 6000hrs service
- Seakeepers annual service + bushing + accumulator / hydraulic circuit flushing
2021 - MTU standard annual service
- SELLMAR removal of the probe plate, workshop service. Creation of a new gasket. Replacement of probes. Disassembly/reassembly of the seawater pump. Disassembly/reassembly of the discharge pump
- KaMeWa standard annual service
- Humphree cleaning of the blades and replacement of the motor bushings
- Idromar replacement of UV lamps, replacement of level probes, replacement of seal kits for all pumps. Water quality test
- Idromar test of RAS membranes. Removal of high-pressure pump for servicing. Replacement of quartz and UV lamp, cleaning of sand filter, replacement of low-pressure gauge
- Generators turbo refurbishment, cylinder compression test, endoscopy
- ZF. 5-year inspection
2022 - 5-year special survey
- MTU QL1
- KaMeWa 5-year service, PTO pump service on the external MP, replacement of fly screen.
- Removal of directional KaMeWa’s
- Humphree cleaning of the blades and replacement of the motor bushings. Blade removal and workshop inspection
- Idromar microbiological water analysis, removal of membranes, testing, replacement of membrane caps, replacement of low-pressure pump, removal of high-pressure pump and electric motor for reconditioning, oil change for high-pressure pump, replacement of high-pressure hoses.
- Generators replacement of exhaust elbows, replacement of injection pump, change of EDM pump seal
- Seakeepers annual service, bushing, accumulators / hydraulic circuit flushing, glycol
- Draining, seal replacement on the internal gyro cylinder port centre.
- All anodes replaced
2023 - MTU standard annual service
- SELLMAR general inspection, replacement of level probes, replacement of the charcoal filter, replacement of U.V. lamps, cleaning
- KaMeWa service, oil analysis, alignment check. Removal of boosters, replacement of all hydraulic hoses
- Humphree cleaning of the blades and replacement of the motor bushings
- Idromar removal of high-pressure and low-pressure pumps for reconditioning (new low- pressure pump), replacement of quartz and UV lamp, replacement of pressure gauge
- Generators replacement of injection rail port/starboard - replacement of EDM pumps, replacement of generator bearings. Removal of the temperature exchanger. Removal of the air exchanger. Removal of the fuel exchanger. Removal of the transmission oil exchanger. Removal of the Expansion Tanks. Cleaning (acid / degreaser / pressure wash). Replacement of seals. Pressure / vacuum tests.
- Seakeeper service at 1000 hours for all. Port centre replacement of glycol pump No. 2.
- Overhaul of the EDM pump
- ZF service A and endoscopic analysis.
2024 - MTU standard annual service
- SELLMAR replacement of the charcoal filter, installation of new suction pipes
- KaMeWa standard service, oil analysis, replacement of KaMeWa wing station levers
- Humphree cleaning of the blades and replacement of the motor bushings
- Idromar winterizing, replacement of filter head, replacement of sand filters. Membrane testing
- Generators standard annual service
exclusions
Works of art and personal owner's items are not included in the sale.
