overview

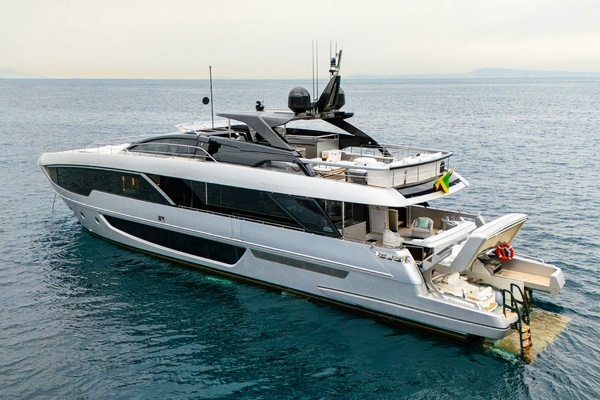

Builder: Riva Model: Cosaro SuperYear: 2023Length Overall: 30.26m (99ft 3in)Beam: 6.7m (22ft)Draft: 2.4m (7ft 8in)Hull: GRPDeck: TeakSpeed: 28 knotsDesigner: Officina Italiana DesignGuests: 10 in 5 CabinsCrew: 5 in 3 CabinsFlag: Jamaica
tank capacities
Fuel Tanks: 9,000 L (2378 US Gals)Water Tanks: 1,320 L (349 US Gals)Grey Water: 330 L (87 US Gals)Black Water: 330 L (87 US Gals)
main engines
Engines: 2 x MTU 16V 2000 M96L Power: 2,638 HP / 1939 kW EachPort Engine Hours: 520Starboard Engine Hours: 520Gearboxes: ZF 3070 V 2.520:1
range
Max Speed (28 knots): 250 nmCruising Speed (24 knots): 300 nmEconomical (16 knots): 380 nm
generators / electrical
Output: 120/240 Volts2 x 35kW Kholer Generators Port Generator Hours: 840Starboard Generator Hours: 892 2 x Generator Mastervolt battery charger Shore Power: 480 V 3-Phase 60HzShore Power Cord: GlendinningME Batteries: 4 x Faam 12VStarter Batteries: Faam 12VService Batteries: 12 x Faam 12VBattery Chargers: 2 x Mastervolt 24V / 75 AmpLighting throughout 24VThree /monophase isolation transformer 25KVA (2)
engine room
2 x Condaria Super tropical air conditioning (3 compressors each)Hydraulic bow thruster (50 hp)Hydraulic stern thruster (40 hp)BCS Steering system Alfa Laval fuel depurator UVA Water maker 180 L/H Additional water maker 180 L/HUnderwater silenced exhausts2 x Main engine fuel filtersElectric bilge pump2 x Ventilation fans2 x Generator fuel filters2 x Water filters for main engines2 x Water filters for generatorsElectric pump for bilge drainage (engine room)Emergency bilge suction pipe (engine room) through engine cooling pumpMultipurpose electric pump (bilge, grey water, black water)Electric WC system with fresh water
stabilizers
Gyroscopic stabilizersStabilizer fins underway and zero speed Interceptor trim stabilizers
communication and navigation
KVH TracVision TV8 sat TV 2 x Simrad fixed VHF4” Urania compassSimrad NAC3 autopilot 4 x Simrad NS024 Evo3s GOSSimrad Halo 72nm radarSimrad IS42 speed logNMEA Arimar weather station Simrad NAIS500 AISStarlink Pepwave Internet NAVIOP Monitoring system FLIR Camera
fire extinguishing & safety
FM200 fire extinguishing system Automatic shutdown of engines and safety over-rideSmoke detection alarm system20 x Lifejackets2 x 10-person life rafts2 x Life rings

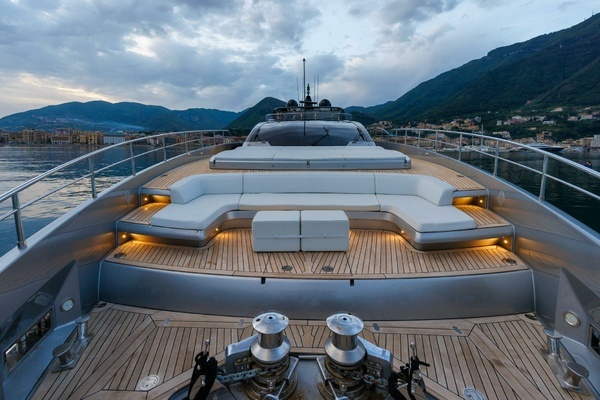

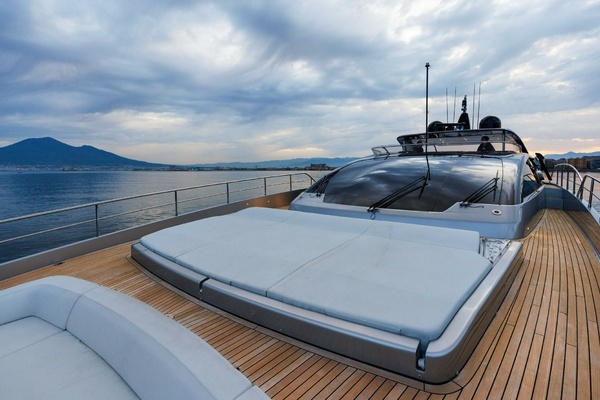

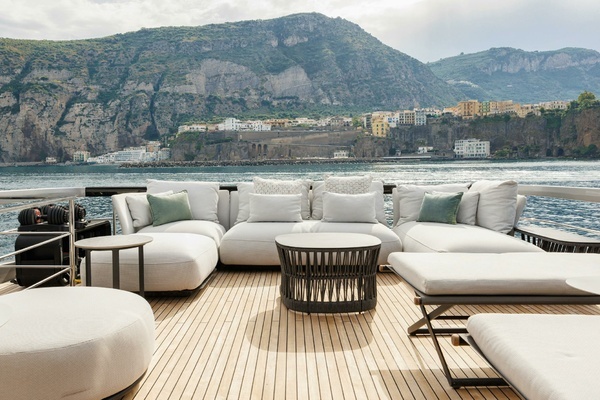

deck
4 x Underwater lights at transom2 x Aft cleats for tender mooring13mm Anchor chain 137.5m Anchor chain2 x Anchors 105kg eachUpgraded 3.5kW winches
galley & laundry
Miele 4 x hob KM7684FLMiele ovenMiele microwaveMiele dishwasherSamsung stainless steel fridge / freezerFlybridge Isotherm ice maker34 Bottle Summit wine cooler Miele coffee barFlybridge Fridge / Freezer: IsothermMiele 9Kg WRC870WPS Washing machineMiele 9Kg TCR790WP Dryer
audio visual

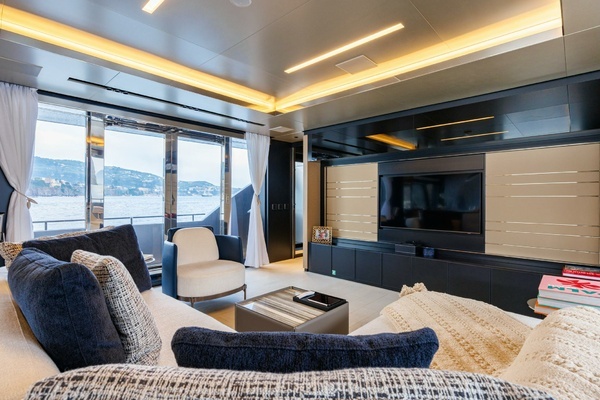

A/V Package Premium Control Area AMain Salon: Samsung 75” LCD/LED with Sony Blu-Ray and Apple TVMaster: Samsung TV + Apple TVGuest Cabins: Samsung TV + Apple TVCrew Area: LG TV + Apple TVExterior Music: Audio Fusion BT/SAT/RadioGuest Music: Audio Fusion BT/SAT/RadioRemotes: RTI App on Ipad

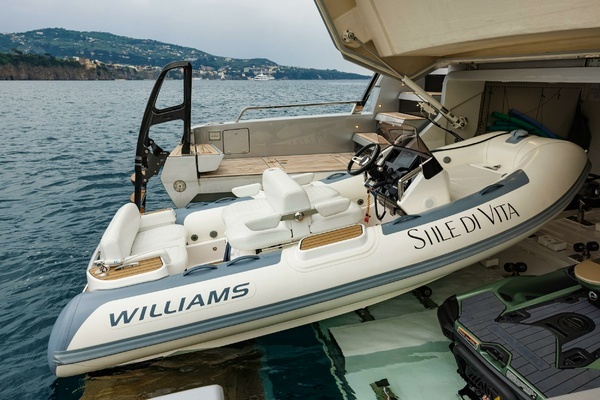

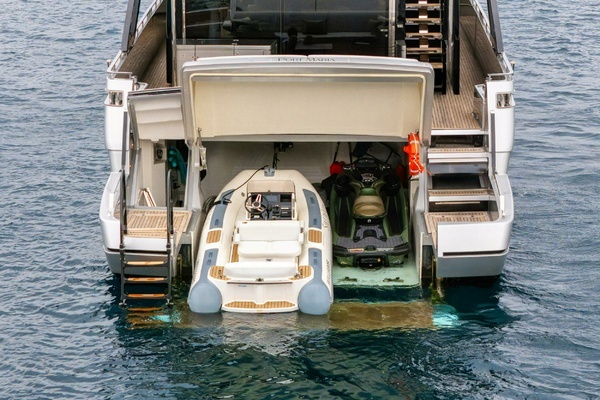

tender & toys
5 Jet RibJetski2 x Seabob Riva Edition
