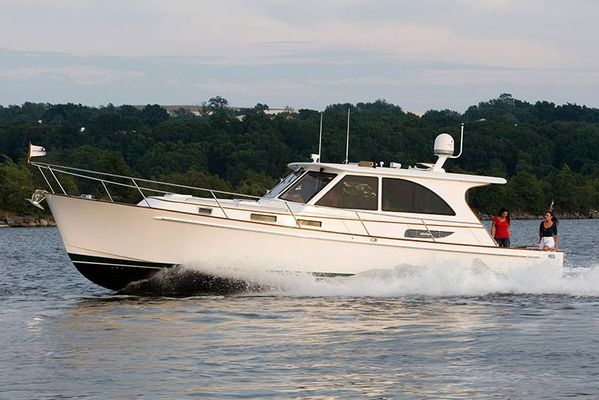

2023 Legacy 42

The Legacy 42 IPS pairs the latest drive systems with a proven hull shape, and advanced marine composites, all packaged in an elegantly traditional motor yacht with a beautiful and luxurious and accommodating interior. The result is a yacht that gives her crew maximum comfort underway providing a stable platform.

Specifications

Year Built 2023

Category Power

Length Overall 42 ft

Beam 13'7 ft

Construction Fiberglass

Deadrise Angle 18 deg

Min Draft 3'2 ft

Fuel Tank Cap. 420 gal

Water Tank Cap. 110 gal

Dry Weight 29000 lb

Hull

Hull and deck are infused vinylester construction with all thru hull spaces designed to isolate core materials from water penetration. Hull and deck are cored with Corecell‚Ñ¢. Gelcoat is an ISO-NPG type.
High density foam cored fiberglass longitudinal and transverse framing grid
(3) Reinforced structural bulkheads bonded to hull (forepeak, main cabin, engine compartment and lazzarette)
White gelcoat finished bilges
Teak lower rubbing strake
Limber holes are installed throughout the stringer system to allow for drainage of all compartments with the exception of the engine sumps. These areas are sealed to isolate the machinery fluids from the bilge system.
